NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
(0901- )1NRFE

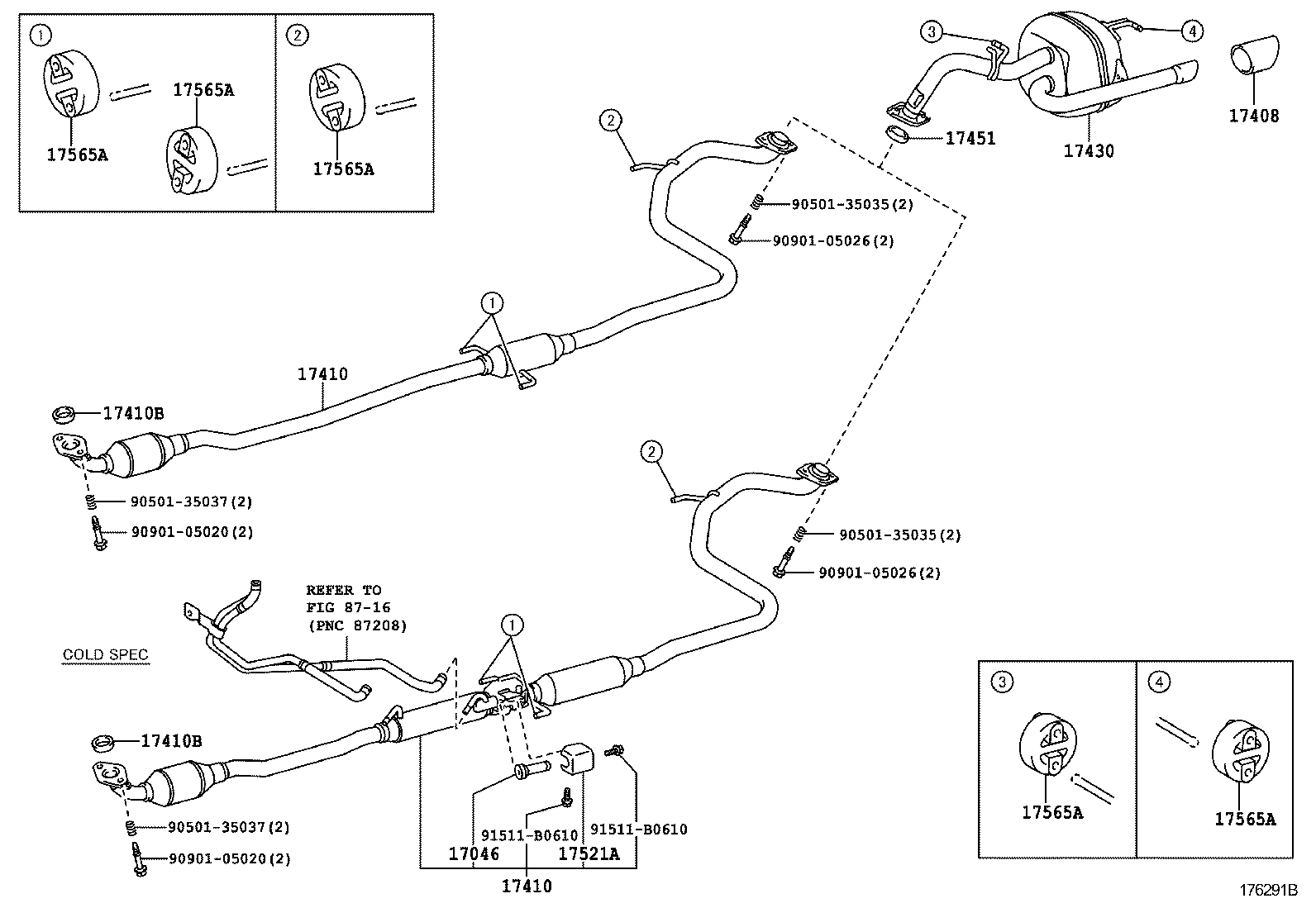

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL | ||||
| 17046-47020 |
1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 17046-47020 |
1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE | ||||
| 17408-21030 |
1N#..NLP11#,NSP110 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-47100 |
1NRFE..NSP110..LHD *114=TOYOTA/CD9/Y,COLD SPEC & WITH(REAR HEATER DUCT)&EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 17410-47100 |
1NRFE..NSP110..LHD *114=TOYOTA/CD9/Y,COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 17410-47180 |
1NRFE..NSP110..LHD *114=TOYOTA/CE9/Y,COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 17410-47090 |
1NRFE..NSP110 *114=TOYOTA/CD9/Y |
1 | ||
| 17410-47090 |
1NRFE..NSP110..LHD *114=TOYOTA/CD9/Y,EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 17410-47170 |
1NRFE..NSP110 *114=TOYOTA/CE9/Y |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-47100 |
1NRFE..NSP110..LHD *114=TOYOTA/CD9/Y,COLD SPEC & WITH(REAR HEATER DUCT)&EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 17410-47100 |
1NRFE..NSP110..LHD *114=TOYOTA/CD9/Y,COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 17410-47180 |
1NRFE..NSP110..LHD *114=TOYOTA/CE9/Y,COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 17410-47090 |
1NRFE..NSP110 *114=TOYOTA/CD9/Y |
1 | ||
| 17410-47090 |
1NRFE..NSP110..LHD *114=TOYOTA/CD9/Y,EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 17410-47170 |
1NRFE..NSP110 *114=TOYOTA/CE9/Y |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-21070 |
1N#..NLP115,NSP110 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-21070 |
1N#..NLP115,NSP110 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-21751 |
1NRFE..NSP110 |
1 | ||
| 17430-21750 |
1NRFE..NSP110 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-23042 |
1NRFE..NSP110 |
1 | ||
| 17451-23041 |
1NRFE..NSP110 |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-47010 |
1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 17521-47010 |
1NRFE..NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT)&EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-40010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565-47010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-40010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565-47010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-40010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565-47010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-40010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565-47010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-40010 |
1N#..NLP110,NSP110 |
5 | ||
| 17565-47010 |
1N#..NLP110,NSP110 |
5 | ||
| Common parts | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91511-B0610 | ||||
| Linked diagrams | ||||
| 8716 | ||||
