Toyota Urban cruiser NSP110 MANIFOLD

NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

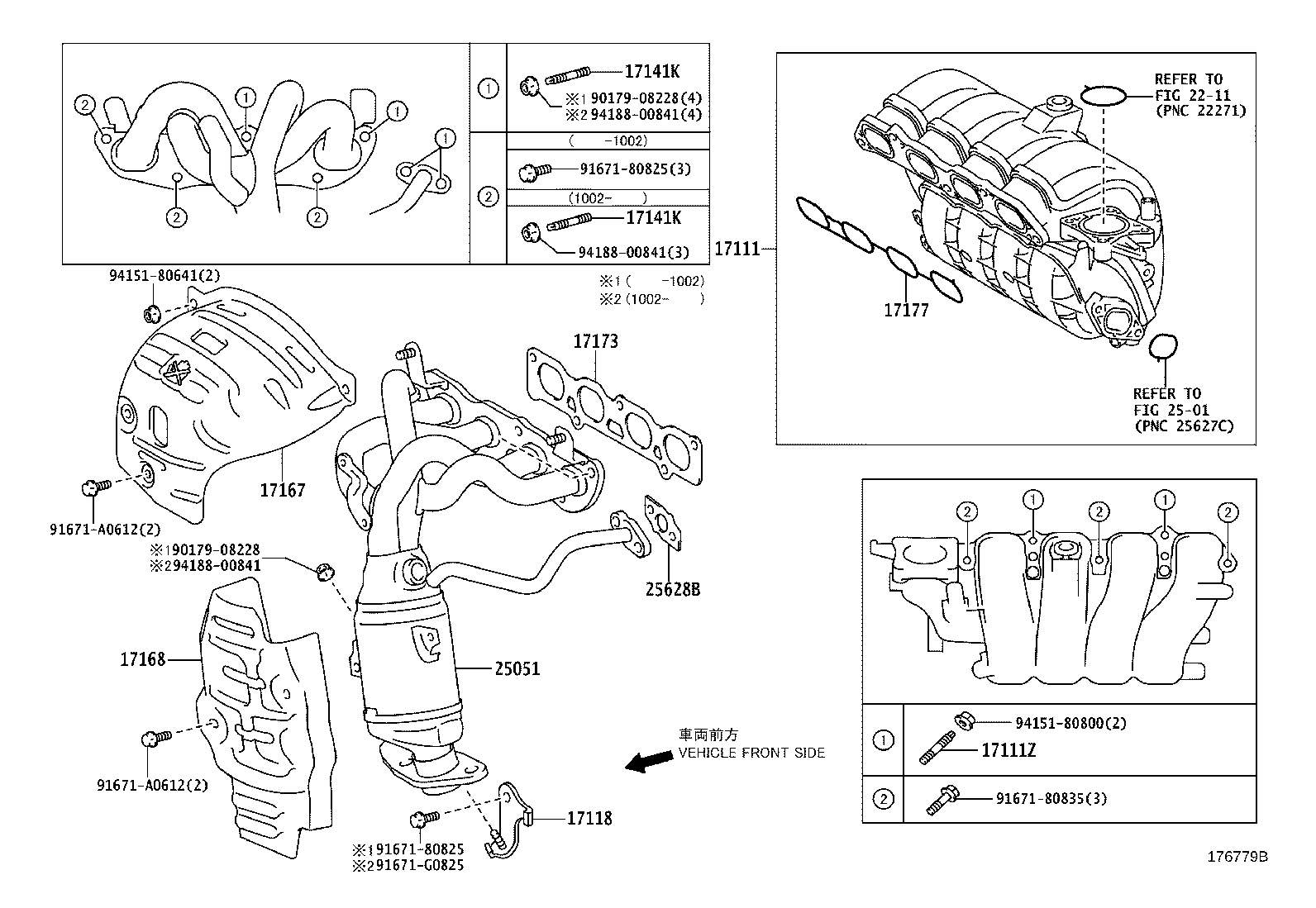

(0901-1008)1NRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-47031	1NRFE..NSP110	08/2010 - 11/2011	1
17120-47011	1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	11/2011 - 12/2999	1
17120-47010	1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	08/2010 - 11/2011	1
17120-47010	1NRFE..NSP110	01/2009 - 08/2010	1
17120-47032	1NRFE..NSP110	11/2011 - 12/2999	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08060	1NRFE..NSP110	01/2009 - 12/2999	2
17118 - STAY, MANIFOLD
17118-47010	1NRFE..NSP110	01/2009 - 12/2999	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063	1NRFE..NSP110	02/2010 - 12/2999	7
90126-08052	1NRFE..NSP110	01/2009 - 02/2010	4
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063	1NRFE..NSP110	02/2010 - 12/2999	7
90126-08052	1NRFE..NSP110	01/2009 - 02/2010	4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-47011	1NRFE..NSP110	12/2009 - 12/2999	1
17167-47010	1NRFE..NSP110	01/2009 - 12/2009	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-47010	1NRFE..NSP110	01/2009 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-47021	1NRFE..NSP110	09/2010 - 12/2999	1
17173-47020	1NRFE..NSP110	01/2009 - 09/2010	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-47011	1NRFE..NSP110	11/2011 - 12/2999	1
17177-47010	1NRFE..NSP110	01/2009 - 11/2011	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-47010	1NRFE..NSP110..LHD *114=TOYOTA/47010/Y,EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	08/2010 - 12/2999	1
25051-47010	1NRFE..NSP110 *114=TOYOTA/47010/Y	01/2009 - 08/2010	1
25051-47040	1NRFE..NSP110 *114=TOYOTA/47040/Y	08/2010 - 12/2999	1
25628B - GASKET, EGR INLET
25628-47010	1NRFE..NSP110	01/2009 - 12/2999	1
Common parts
90179-08228
91671-80825
91671-80835
91671-A0612
91671-G0825
94151-80641
94151-80800
94188-00841
Linked diagrams
2211
2501

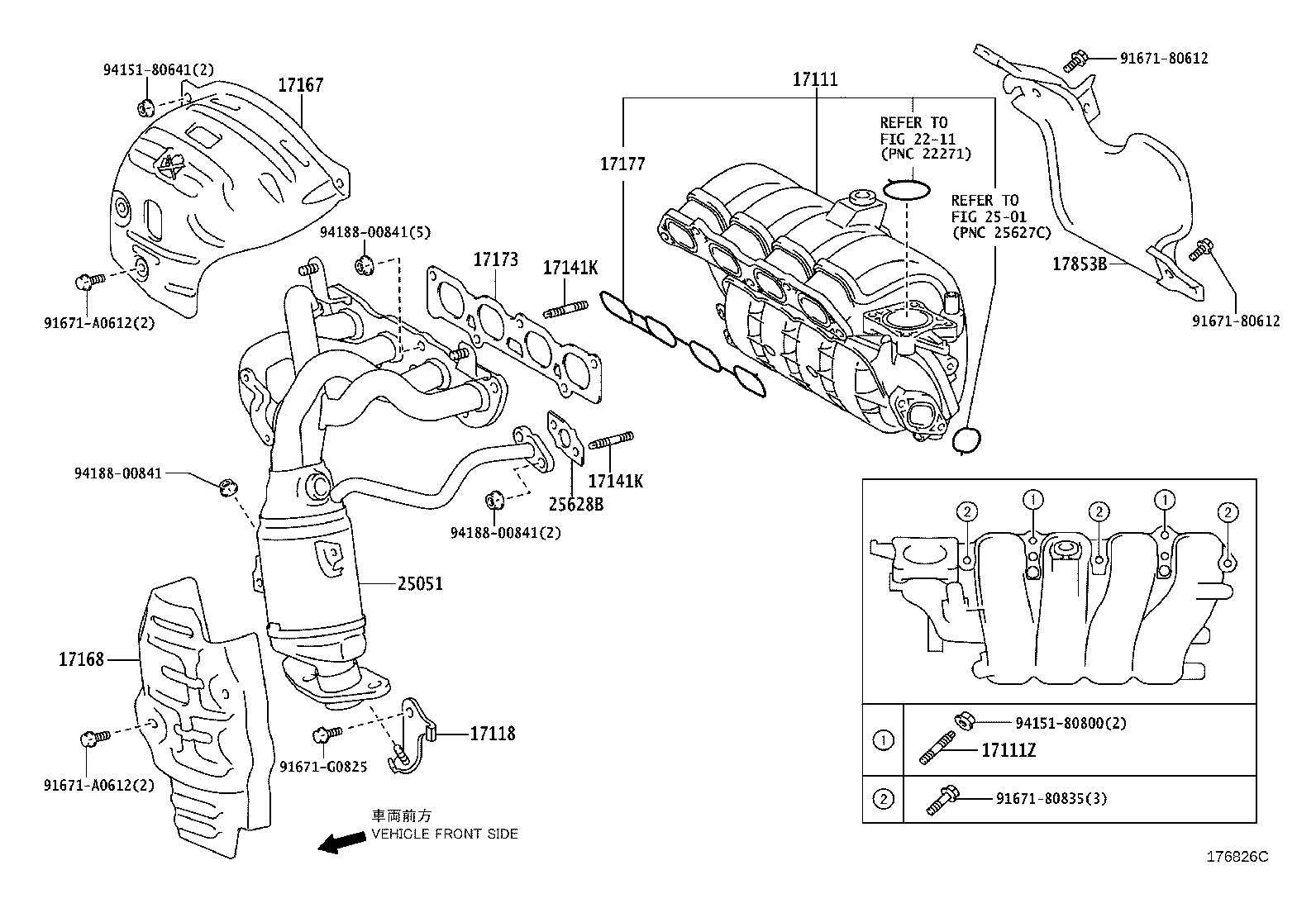

(1008- )1NRFE

Click highlighted areas on diagram

EUROPE STEP4

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-47031	1NRFE..NSP110	08/2010 - 11/2011	1
17120-47011	1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	11/2011 - 12/2999	1
17120-47010	1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	08/2010 - 11/2011	1
17120-47010	1NRFE..NSP110	01/2009 - 08/2010	1
17120-47032	1NRFE..NSP110	11/2011 - 12/2999	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08060	1NRFE..NSP110	01/2009 - 12/2999	2
17118 - STAY, MANIFOLD
17118-47010	1NRFE..NSP110	01/2009 - 12/2999	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063	1NRFE..NSP110	02/2010 - 12/2999	7
90126-08052	1NRFE..NSP110	01/2009 - 02/2010	4
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063	1NRFE..NSP110	02/2010 - 12/2999	7
90126-08052	1NRFE..NSP110	01/2009 - 02/2010	4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-47011	1NRFE..NSP110	12/2009 - 12/2999	1
17167-47010	1NRFE..NSP110	01/2009 - 12/2009	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-47010	1NRFE..NSP110	01/2009 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-47021	1NRFE..NSP110	09/2010 - 12/2999	1
17173-47020	1NRFE..NSP110	01/2009 - 09/2010	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-47011	1NRFE..NSP110	11/2011 - 12/2999	1
17177-47010	1NRFE..NSP110	01/2009 - 11/2011	1
17853B - INSULATOR, INTAKE MANIFOLD
17853-47010	1NRFE..NSP110	08/2010 - 12/2999	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-47010	1NRFE..NSP110..LHD *114=TOYOTA/47010/Y,EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	08/2010 - 12/2999	1
25051-47010	1NRFE..NSP110 *114=TOYOTA/47010/Y	01/2009 - 08/2010	1
25051-47040	1NRFE..NSP110 *114=TOYOTA/47040/Y	08/2010 - 12/2999	1
25628B - GASKET, EGR INLET
25628-47010	1NRFE..NSP110	01/2009 - 12/2999	1
Common parts
91671-80612
91671-80835
91671-A0612
91671-G0825
94151-80641
94151-80800
94188-00841
Linked diagrams
2211
2501

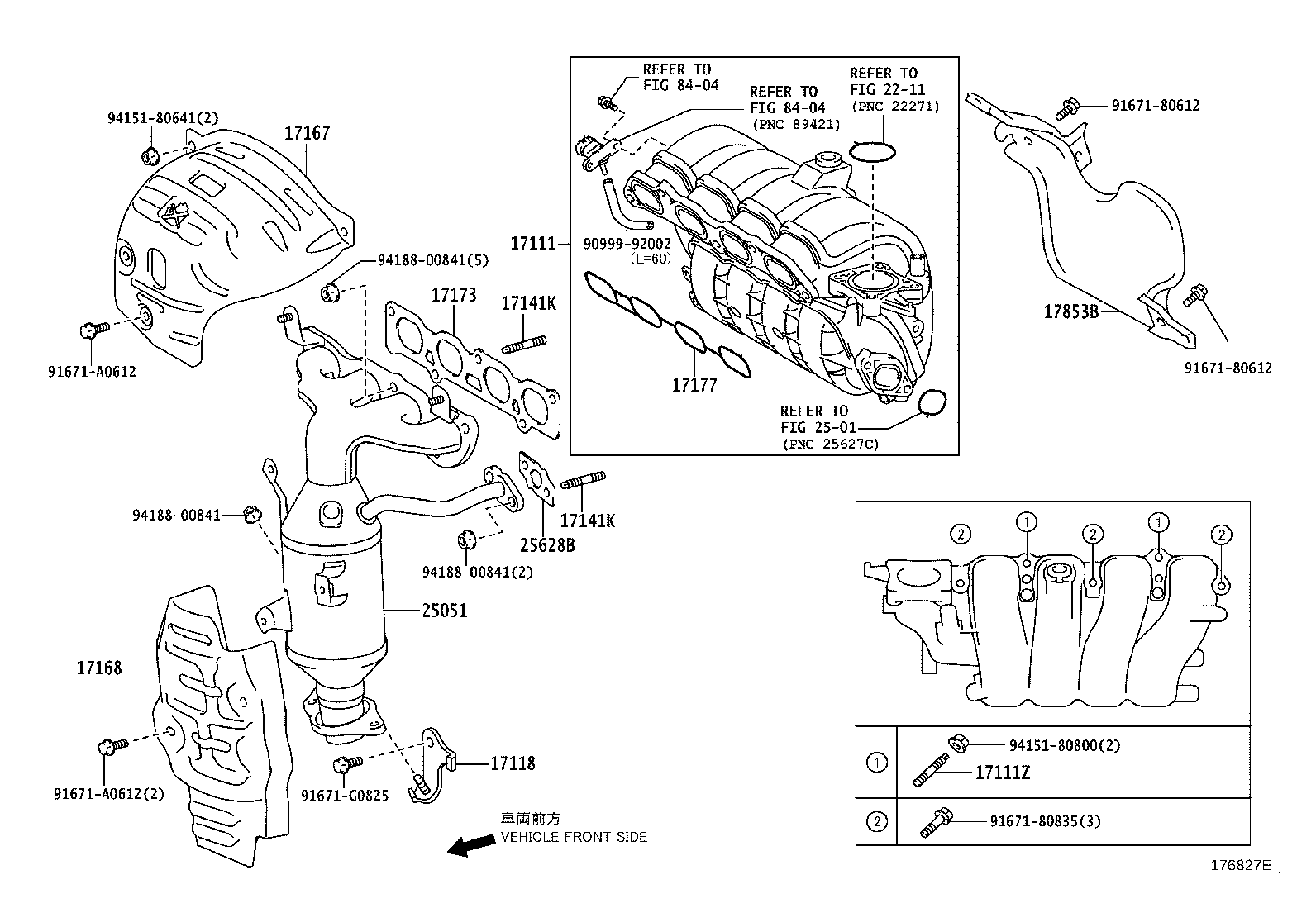

(1008- )1NRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-47031	1NRFE..NSP110	08/2010 - 11/2011	1
17120-47011	1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	11/2011 - 12/2999	1
17120-47010	1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	08/2010 - 11/2011	1
17120-47010	1NRFE..NSP110	01/2009 - 08/2010	1
17120-47032	1NRFE..NSP110	11/2011 - 12/2999	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08060	1NRFE..NSP110	01/2009 - 12/2999	2
17118 - STAY, MANIFOLD
17118-47010	1NRFE..NSP110	01/2009 - 12/2999	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063	1NRFE..NSP110	02/2010 - 12/2999	7
90126-08052	1NRFE..NSP110	01/2009 - 02/2010	4
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063	1NRFE..NSP110	02/2010 - 12/2999	7
90126-08052	1NRFE..NSP110	01/2009 - 02/2010	4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-47011	1NRFE..NSP110	12/2009 - 12/2999	1
17167-47010	1NRFE..NSP110	01/2009 - 12/2009	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-47010	1NRFE..NSP110	01/2009 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-47021	1NRFE..NSP110	09/2010 - 12/2999	1
17173-47020	1NRFE..NSP110	01/2009 - 09/2010	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-47011	1NRFE..NSP110	11/2011 - 12/2999	1
17177-47010	1NRFE..NSP110	01/2009 - 11/2011	1
17853B - INSULATOR, INTAKE MANIFOLD
17853-47010	1NRFE..NSP110	08/2010 - 12/2999	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-47010	1NRFE..NSP110..LHD *114=TOYOTA/47010/Y,EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS)	08/2010 - 12/2999	1
25051-47010	1NRFE..NSP110 *114=TOYOTA/47010/Y	01/2009 - 08/2010	1
25051-47040	1NRFE..NSP110 *114=TOYOTA/47040/Y	08/2010 - 12/2999	1
25628B - GASKET, EGR INLET
25628-47010	1NRFE..NSP110	01/2009 - 12/2999	1
Common parts
90999-92002
91671-80612
91671-80835
91671-A0612
91671-G0825
94151-80641
94151-80800
94188-00841
Linked diagrams
2211
2501
8404
