NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

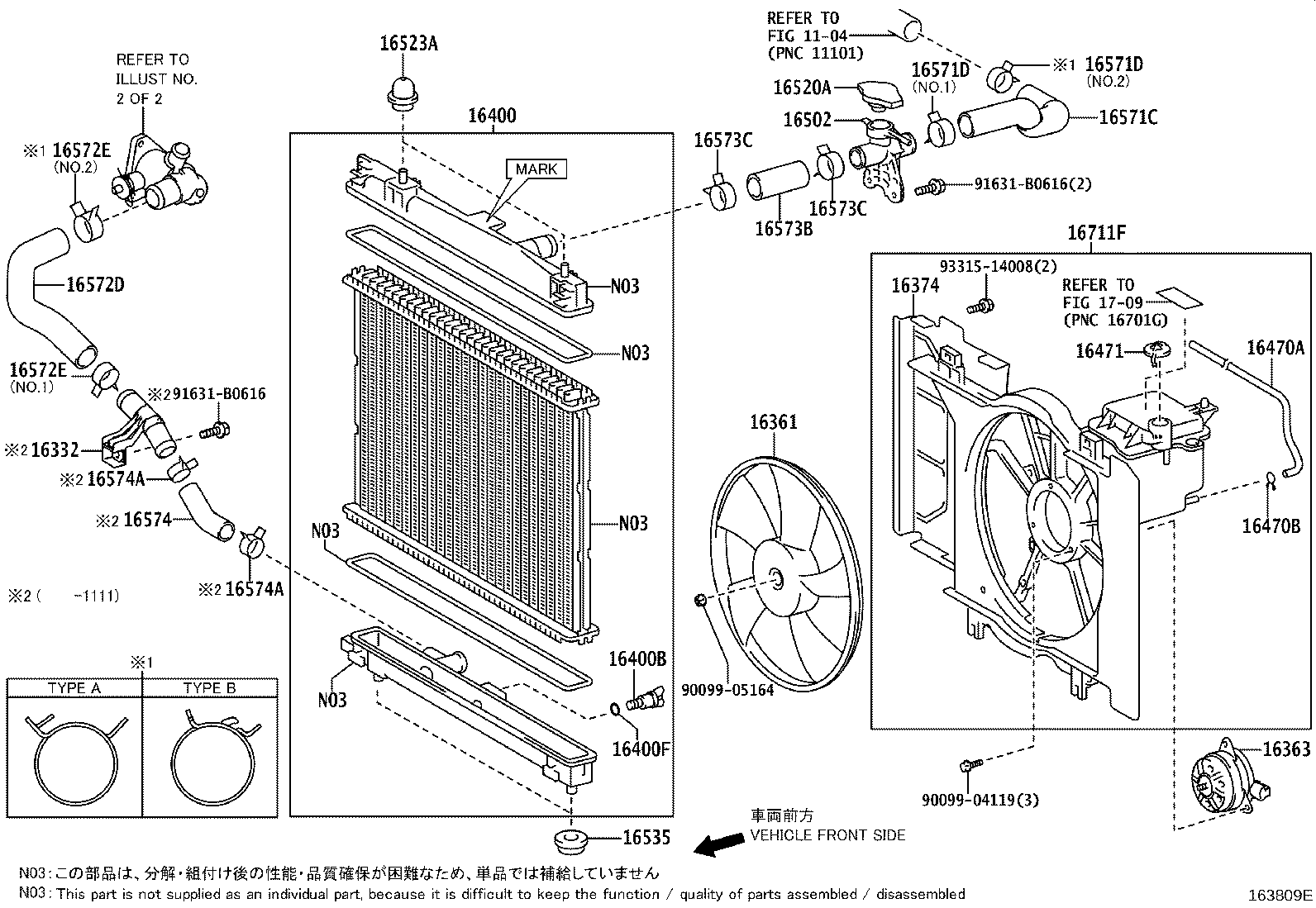

ILLUST NO. 1 OF 2(0901-1205)1NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-47010 |
1NRFE..NSP110 |
1 | ||
| 16361 - FAN | ||||
| 16361-23070 |
1NRFE..NSP110 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28200 |
1NRFE..NSP110 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-40010 |
1NRFE..NSP110 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-47080 |
1NRFE..NSP110 MARK 2492 |
1 | ||
| 16400-47081 |
1NRFE..NSP110 MARK 9100 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1N#..NLP11#,NSP110 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1N#..NLP11#,NSP110 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1NRFE..NSP110 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NRFE..NSP110 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
1NRFE..NSP110 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-23010 |
1NRFE..NSP110 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-31520 |
1NRFE..NSP110 |
1 | ||
| 16401-31480 |
1NRFE..NSP110 |
1 | ||
| 16401-62100 |
1NRFE..NSP110 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1N#..NLP11#,NSP110 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1N#..NLP11#,NSP110 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-47070 |
1NRFE..NSP110 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NRFE..NSP110 NO.2,TYPE B |
1 | ||
| 90467-33006 |
1NRFE..NSP110 NO.1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NRFE..NSP110 NO.2,TYPE B |
1 | ||
| 90467-33006 |
1NRFE..NSP110 NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-47060 |
1NRFE..NSP110 |
1 | ||
| 16572-47070 |
1NRFE..NSP110 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NRFE..NSP110 NO.2,TYPE B,NO.1 |
1 | ||
| 90467-33006 |
1NRFE..NSP110 NO.2,TYPE A |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NRFE..NSP110 NO.2,TYPE B,NO.1 |
1 | ||
| 90467-33006 |
1NRFE..NSP110 NO.2,TYPE A |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-23010 |
1NRFE..NSP110 L=94.2 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NRFE..NSP110 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NRFE..NSP110 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-47010 |
1NRFE..NSP110 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-43601 |
1NRFE..NSP110 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-43601 |
1NRFE..NSP110 |
2 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-23090 |
1NRFE..NSP110 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91631-B0616 | ||||
| 93315-14008 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||

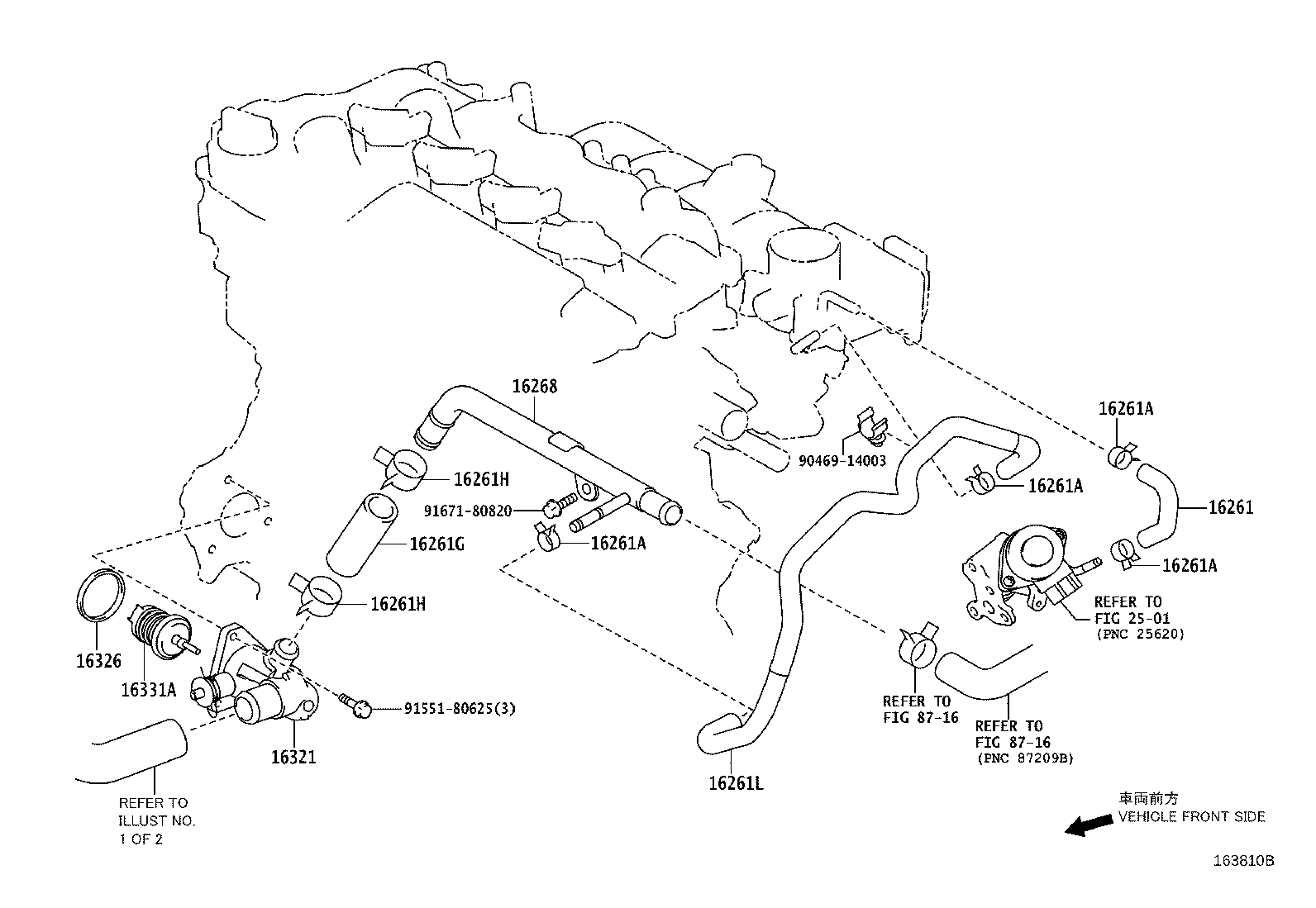

ILLUST NO. 2 OF 2(0901- )1NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-47010 |
1NRFE..NSP110 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NRFE..NSP110 |
4 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NRFE..NSP110 |
4 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NRFE..NSP110 |
4 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NRFE..NSP110 |
4 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-47020 |
1NRFE..NSP110 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
1NRFE..NSP110 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
1NRFE..NSP110 |
2 | ||
| 16261L - HOSE, WATER BY-PASS | ||||
| 16261-47030 |
1NRFE..NSP110 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-47030 |
1NRFE..NSP110 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-47010 |
1NRFE..NSP110 |
1 | ||
| 16321-47011 |
1NRFE..NSP110 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47010 |
1NRFE..NSP110 |
1 | ||
| 16326-47020 |
1NRFE..NSP110 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03147 |
1NRFE..NSP110 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90469-14003 | ||||
| 91551-80625 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8716 | ||||

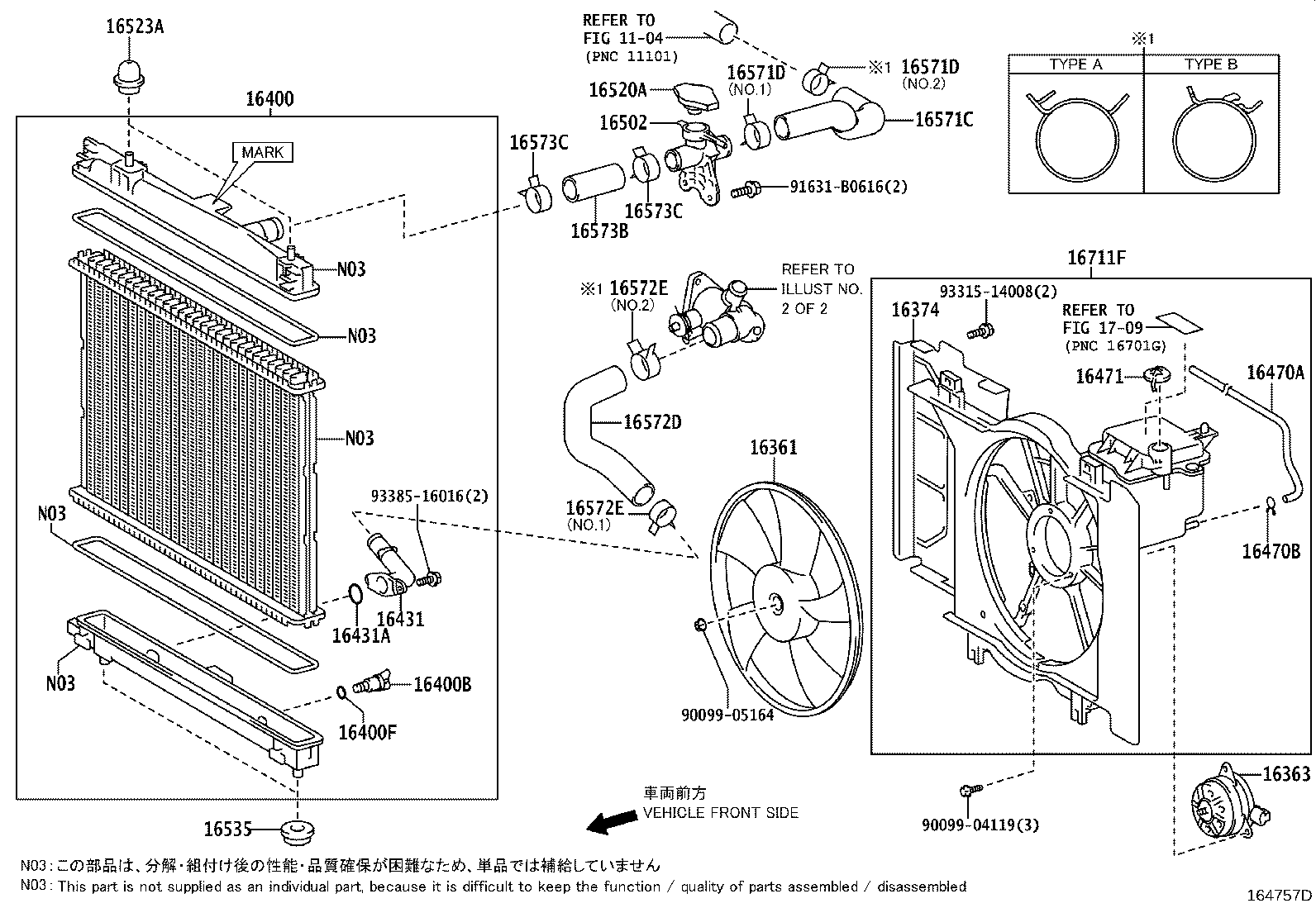

ILLUST NO. 1 OF 2(1205- )1NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-23070 |
1NRFE..NSP110 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28200 |
1NRFE..NSP110 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-40010 |
1NRFE..NSP110 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-47080 |
1NRFE..NSP110 MARK 2492 |
1 | ||
| 16400-47081 |
1NRFE..NSP110 MARK 9100 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1N#..NLP11#,NSP110 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1N#..NLP11#,NSP110 |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-47090 |
1NRFE..NSP110 |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-6A300 |
1NRFE..NSP110 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1NRFE..NSP110 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NRFE..NSP110 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
1NRFE..NSP110 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-23010 |
1NRFE..NSP110 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-31520 |
1NRFE..NSP110 |
1 | ||
| 16401-31480 |
1NRFE..NSP110 |
1 | ||
| 16401-62100 |
1NRFE..NSP110 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1N#..NLP11#,NSP110 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1N#..NLP11#,NSP110 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-47070 |
1NRFE..NSP110 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NRFE..NSP110 NO.2,TYPE B |
1 | ||
| 90467-33006 |
1NRFE..NSP110 NO.1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NRFE..NSP110 NO.2,TYPE B |
1 | ||
| 90467-33006 |
1NRFE..NSP110 NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-47060 |
1NRFE..NSP110 |
1 | ||
| 16572-47070 |
1NRFE..NSP110 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NRFE..NSP110 NO.2,TYPE B,NO.1 |
1 | ||
| 90467-33006 |
1NRFE..NSP110 NO.2,TYPE A |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NRFE..NSP110 NO.2,TYPE B,NO.1 |
1 | ||
| 90467-33006 |
1NRFE..NSP110 NO.2,TYPE A |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-23010 |
1NRFE..NSP110 L=94.2 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NRFE..NSP110 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NRFE..NSP110 |
2 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-23090 |
1NRFE..NSP110 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91631-B0616 | ||||
| 93315-14008 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||
