NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )1NRFE

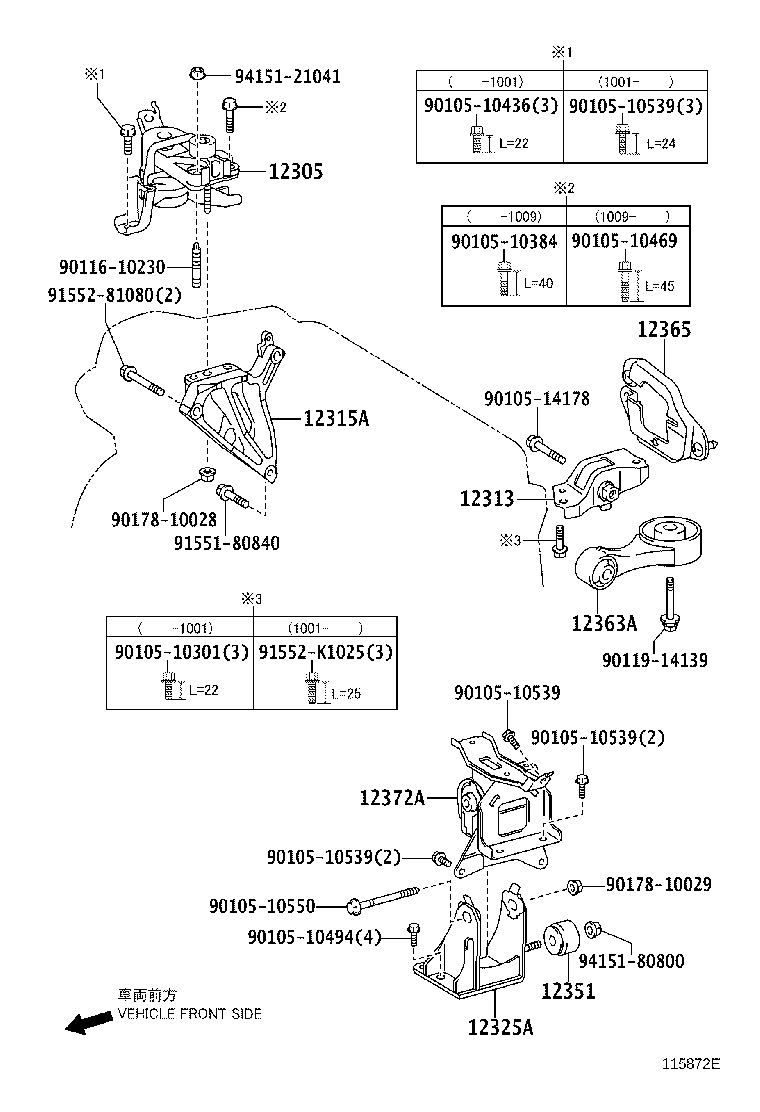

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0Y010 |
1NRFE..NSP110 |
1 | ||
| 12305-0Y011 |
1NRFE..NSP110 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-47010 |
1NRFE..NSP110 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-47040 |
1NRFE..NSP110 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-47080 |
1NRFE..NSP110 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-47010 |
1NRFE..NSP110 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-47030 |
1NRFE..NSP110 |
1 | ||
| 12365 - COVER, ENGINE MOVING CONTROL ROD | ||||
| 12365-40010 |
1N#..NLP11#,NSP110..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 12365-40010 |
1N#..NLP11#,NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-47070 |
1NRFE..NSP110 |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10384 | ||||
| 90105-10436 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10539 | ||||
| 90105-10550 | ||||
| 90105-14178 | ||||
| 90116-10230 | ||||
| 90119-14139 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 91551-80840 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 94151-21041 | ||||
| 94151-80800 | ||||
