NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

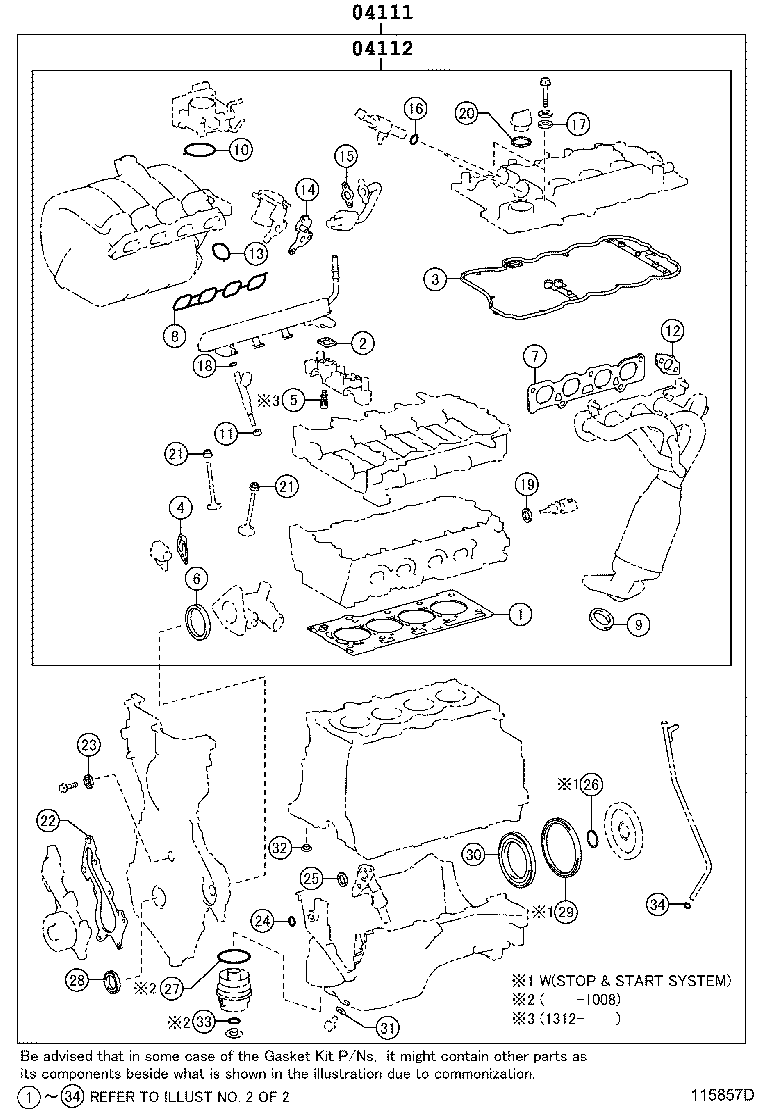

ILLUST NO. 1 OF 2(0901- )1NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-47044 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47053 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47055 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47074 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47065 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47063 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47073 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47072 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47053 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47054 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47041 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47051 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47064 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47075 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47067 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47056 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47077 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47066 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47068 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47076 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47190 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47180 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47057 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47170 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-47041 |
1NRFE..NSP110 |
1 | ||
| 04112-47044 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47043 |
1NRFE..NSP110 |
1 | ||
| 04112-47033 |
1NRFE..NSP110 |
1 | ||
| 04112-47034 |
1NRFE..NSP110 |
1 | ||
| 04112-47045 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47035 |
1NRFE..NSP110 |
1 | ||
| 04112-47043 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47036 |
1NRFE..NSP110 |
1 | ||
| 04112-47130 |
1NRFE..NSP110 |
1 | ||
| 04112-47046 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47120 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47032 |
1NRFE..NSP110 |
1 | ||

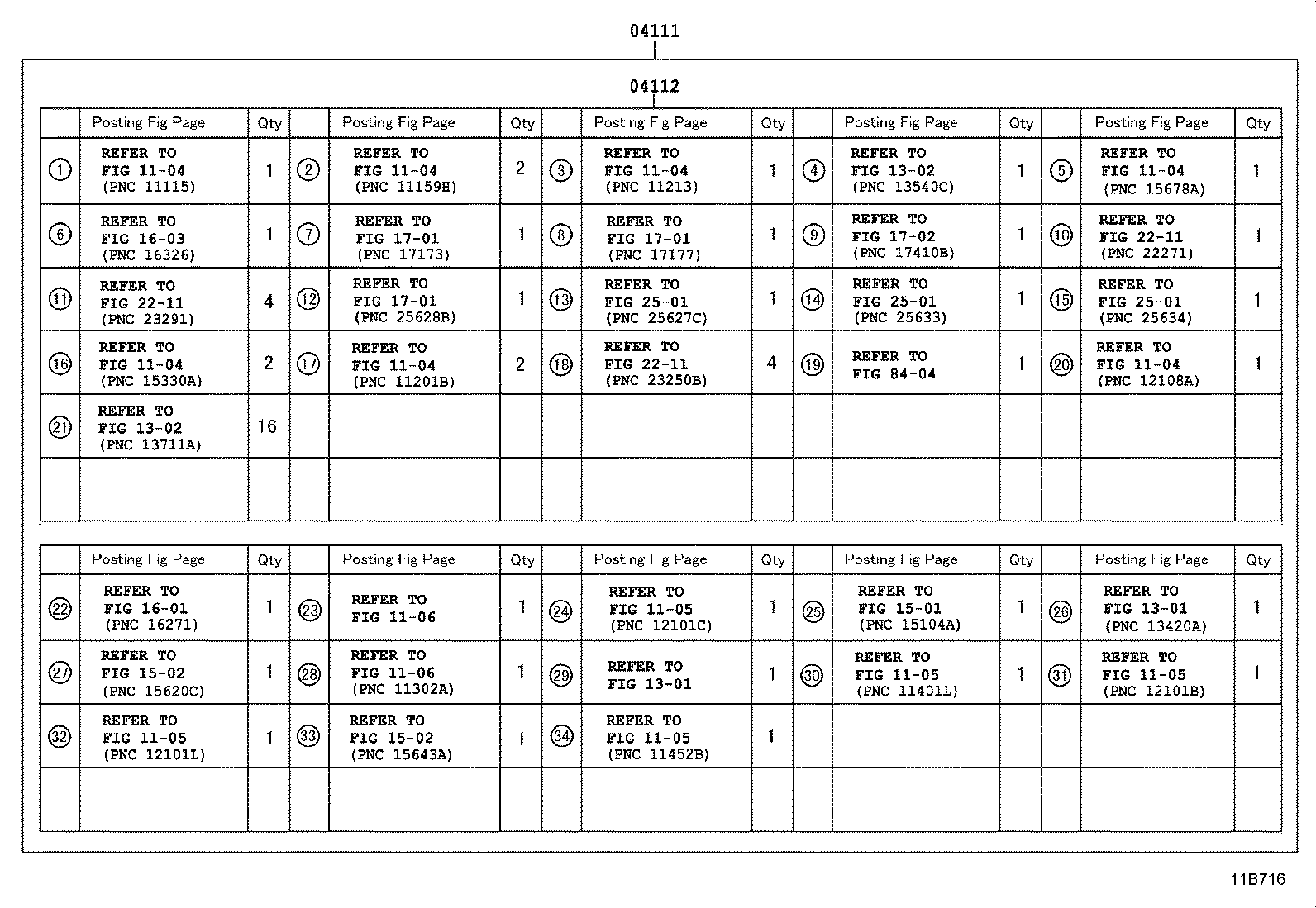

ILLUST NO. 2 OF 2(0901- )1NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-47044 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47053 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47055 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47074 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47065 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47063 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47072 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47053 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47073 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47054 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47041 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47051 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47064 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47075 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47067 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47056 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47077 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47066 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47068 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47076 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47190 |
1NRFE..NSP110..LHD |
1 | ||
| 04111-47180 |
1NRFE..NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 04111-47057 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04111-47170 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-47041 |
1NRFE..NSP110 |
1 | ||
| 04112-47044 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47043 |
1NRFE..NSP110 |
1 | ||
| 04112-47033 |
1NRFE..NSP110 |
1 | ||
| 04112-47034 |
1NRFE..NSP110 |
1 | ||
| 04112-47045 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47035 |
1NRFE..NSP110 |
1 | ||
| 04112-47043 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47036 |
1NRFE..NSP110 |
1 | ||
| 04112-47130 |
1NRFE..NSP110 |
1 | ||
| 04112-47046 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47120 |
1NRFE..NSP110..LHD EXHAUST MISSION CONTROL-EUROPE STEP4 W/O(ON BOARD DIAGNOSIS) |
1 | ||
| 04112-47032 |
1NRFE..NSP110 |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1106 | ||||
| 1301 | ||||
| 1302 | ||||
| 1501 | ||||
| 1502 | ||||
| 1601 | ||||
| 1603 | ||||
| 1701 | ||||
| 1702 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
