NLP115R-AHFRXW (2009)

Toyota Urban Cruiser

Production Feb 2009 - May 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901-1008)1NDTV

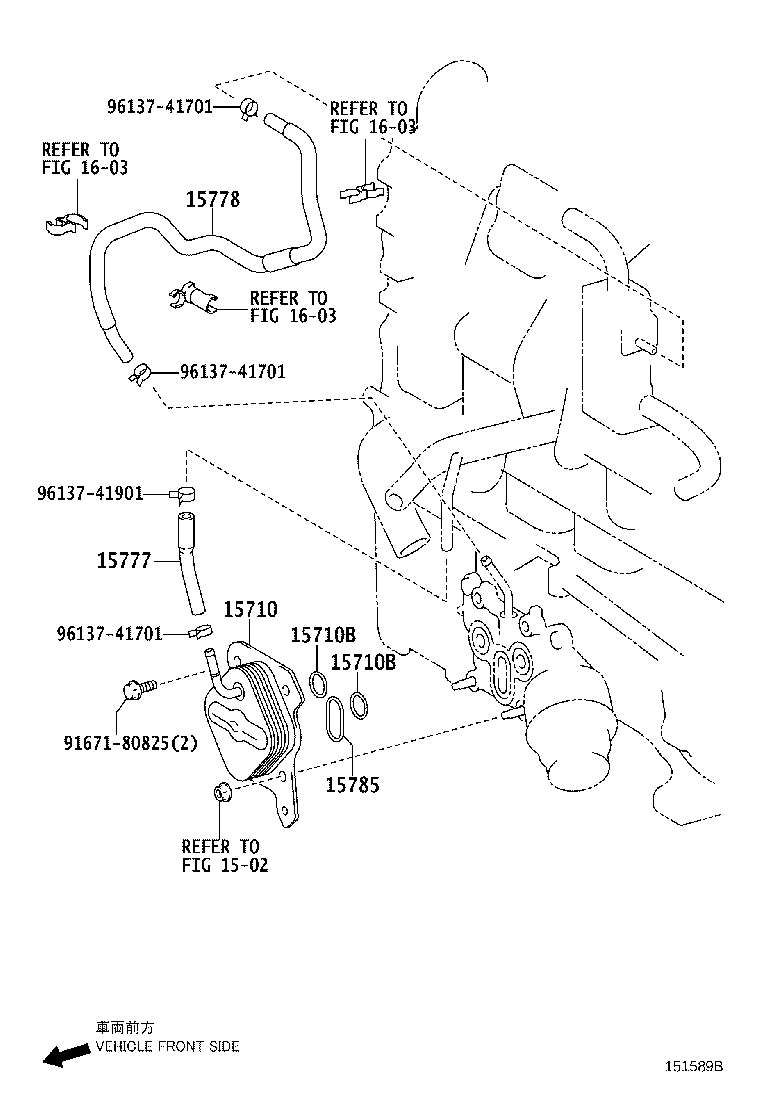

Click highlighted areas on diagram

diagram 1502 15710 15710B 15710B 15777 15778 15785 1603 1603 1603 9167180825 9613741701 9613741701 9613741701 9613741901
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-33050

1NDTV..NLP11#

 1
15710B - RING, O(FOR OIL COOLER)
96723-35024

1NDTV..NLP11#

 2
15710B - RING, O(FOR OIL COOLER)
96723-35024

1NDTV..NLP11#

 2
15777 - HOSE, OIL COOLER
15777-33010

1NDTV..NLP11#

 1
15778 - HOSE, OIL COOLER, NO.2
15778-33030

1NDTV..NLP11#

 1
15778-33010

1NDTV..NLP11#

 1
15785 - GASKET, OIL COOLER
15785-33010

1NDTV..NLP11#

 1
Common parts
91671-80825
96137-41701
96137-41901
Linked diagrams
1502
1603

(1008- )1NDTV

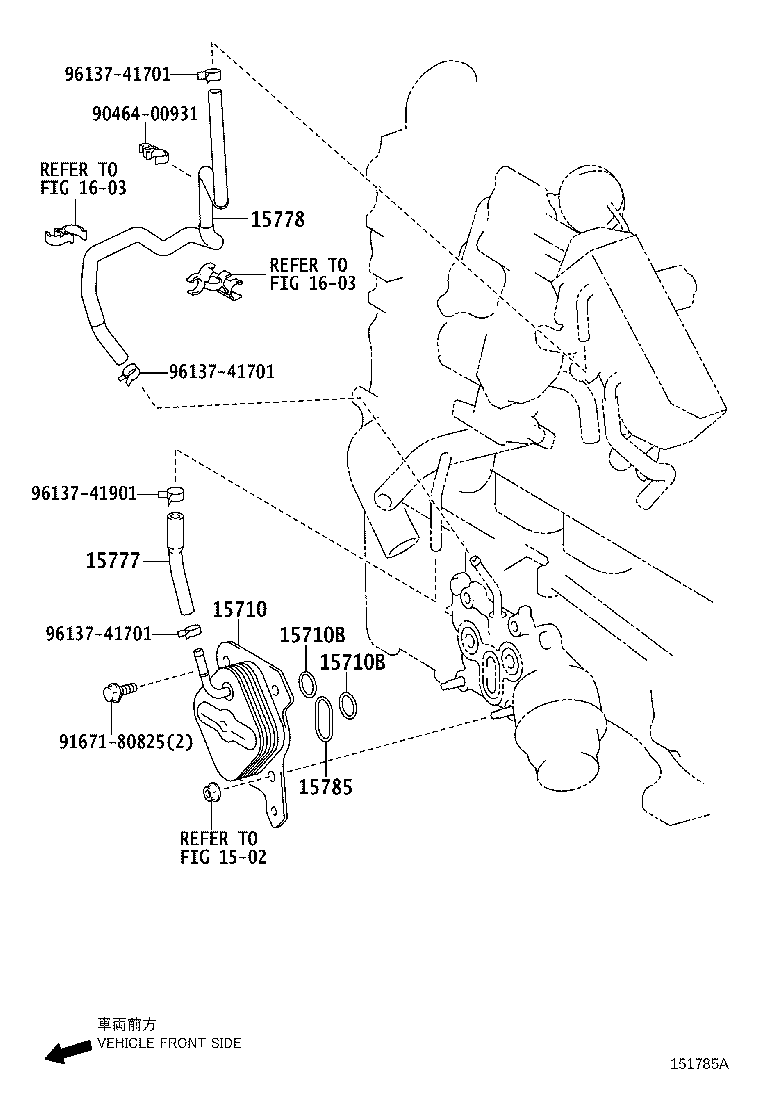

Click highlighted areas on diagram

diagram 1502 15710 15710B 15710B 15777 15778 15785 1603 1603 9046400931 9167180825 9613741701 9613741701 9613741701 9613741901
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-33050

1NDTV..NLP11#

 1
15710B - RING, O(FOR OIL COOLER)
96723-35024

1NDTV..NLP11#

 2
15710B - RING, O(FOR OIL COOLER)
96723-35024

1NDTV..NLP11#

 2
15777 - HOSE, OIL COOLER
15777-33010

1NDTV..NLP11#

 1
15778 - HOSE, OIL COOLER, NO.2
15778-33030

1NDTV..NLP11#

 1
15778-33010

1NDTV..NLP11#

 1
15785 - GASKET, OIL COOLER
15785-33010

1NDTV..NLP11#

 1
Common parts
90464-00931
91671-80825
96137-41701
96137-41901
Linked diagrams
1502
1603
