NLP110R-AHFRXW (2009)

Toyota Urban Cruiser

Production Jan 2009 - May 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

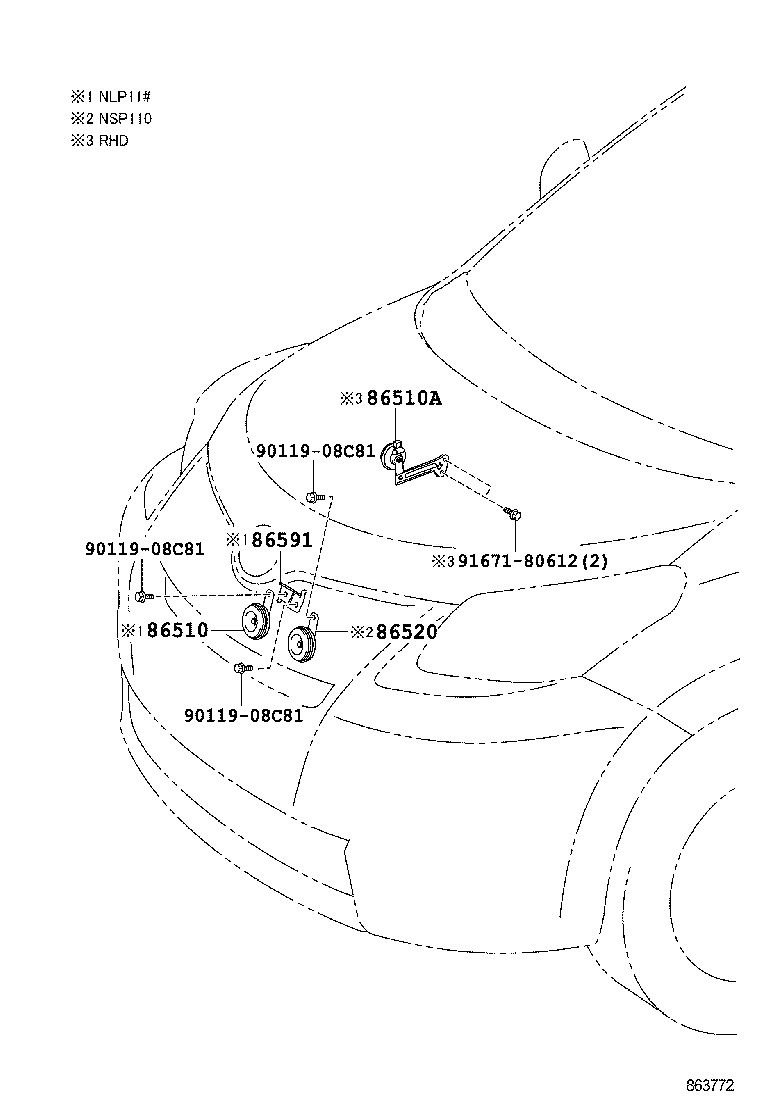

Click highlighted areas on diagram

diagram 86510 86510A 86520 86591 9011908C81 9011908C81 9011908C81 9167180612
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-20280

NLP11#

 1
86510A - HORN ASSY, SECURITY
86560-52050

NLP11#,NSP110..RHD

UK SPEC

 1
86591 - BRACKET, HORN
86591-52050

NLP11#

 1
Common parts
90119-08C81
91671-80612
