NLP110R-AHFRXW (2009)
Toyota Urban Cruiser

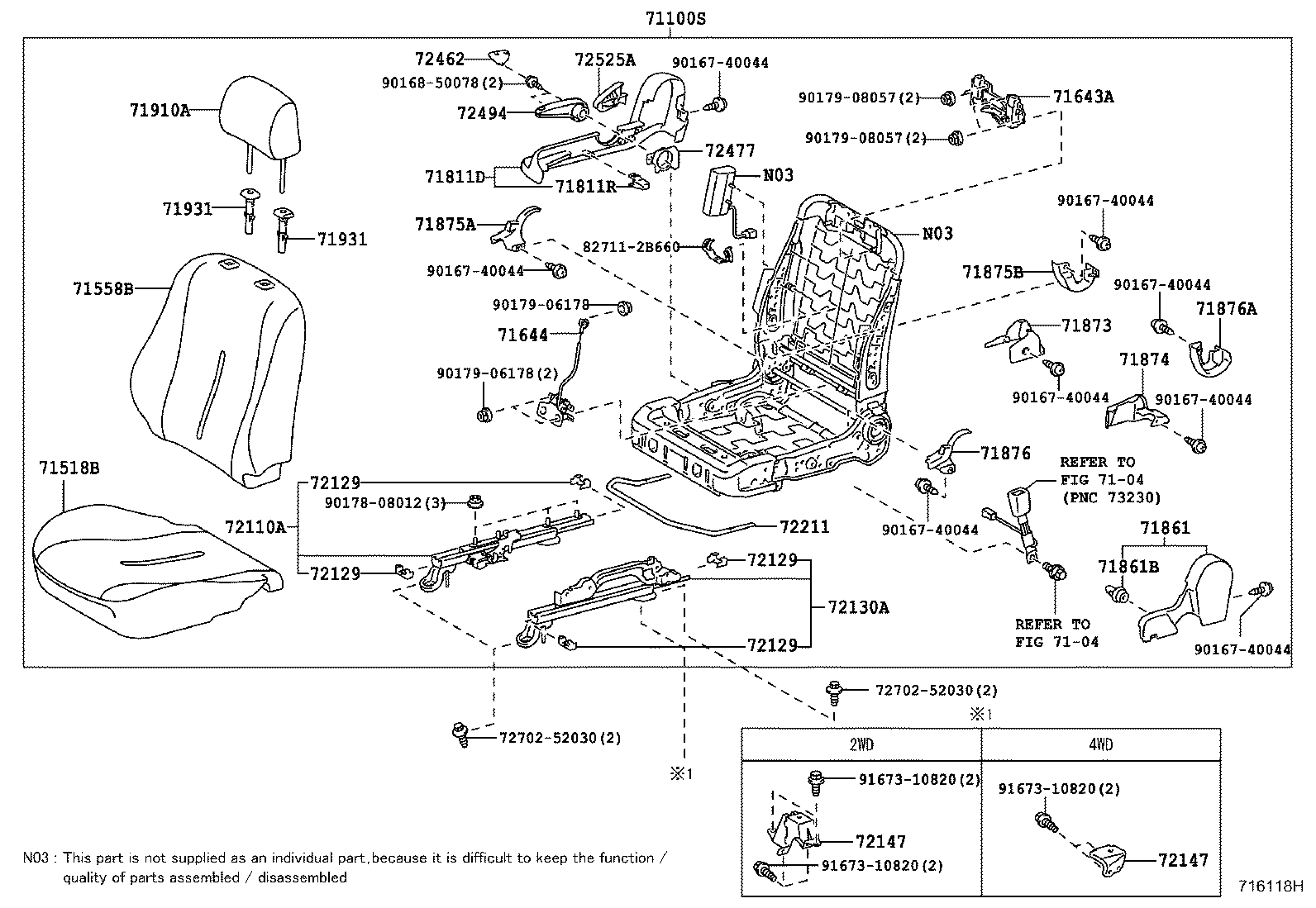

ILLUST NO. 1 OF 2(0901- )RHD
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-5CS20B1 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS30B1 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CT00B0 |
NLP11#,NSP110..RHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71010-52G30B0 |
NLP11#,NSP110..RHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71010-52G40B0 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71010-52J10B0 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS32B0 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71010-52Y91B0 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71010-52Y90B1 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS23B0 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71010-52Y92B0 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71100-5CT02B0 |
NLP11#,NSP110..RHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS22B0 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71100-5CS24B0 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52P30B1 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71518-52P40B1 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71518-52G30B6 |
NLP11#,NSP110..RHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71518-52P31B2 |
NLP11#,NSP110..RHD..N GRAY,TRIM1# |
1 | ||
| 71518-52G31B8 |
NLP11#,NSP110..RHD..N SOL PACKAGE,GRAY,TRIM1# |
1 | ||
| 71518-52P41B2 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71518-52T30B1 |
NLP11#,NSP110..RHD..N GRAY,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52S50B0 |
NLP11#,NSP110..R DK.GRAY,TRIM1# |
1 | ||
| 71558-52R50B0 |
NLP11#,NSP110..N DK.GRAY,TRIM1# |
1 | ||
| 71558-52S60B0 |
NLP11#,NSP110..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71558-52R51B1 |
NLP11#,NSP110..N GRAY,TRIM1# |
1 | ||
| 71558-52S61B1 |
NLP11#,NSP110..N SOL PACKAGE,GRAY,TRIM1# |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
NLP11#,NSP110 |
2 | ||
| 71643-12011 |
NLP11#,NSP110 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
NLP11#,NSP110 |
2 | ||
| 71644-12030 |
NLP11#,NSP110 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 90467-10203 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 90467-10203 |
NLP11#,NSP110..N |
1 | ||
| 90467-10203 |
NLP11#,NSP110..R |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52200B0 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-33020 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 71769-33020 |
NLP11#,NSP110..R |
1 | ||
| 71769-33020 |
NLP11#,NSP110..N |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52220B0 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52210B0 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52170B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52160B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D61B0 |
NLP115..N;NLP110,NSP110..RHD..N DK.GRAY,TRIM1# |
2 | ||
| 71910-52D60B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 71910-52D61B0 |
NLP110,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71910-52680B1 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NLP115..N;NLP110,NSP110..RHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NLP110,NSP110..RHD..N W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NLP110,NSP110..RHD..N W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP115..N;NLP110,NSP110..RHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NLP115..N;NLP110,NSP110..RHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NLP110,NSP110..RHD..N W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NLP110,NSP110..RHD..N W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP115..N;NLP110,NSP110..RHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-52071 |
NLP11#,NSP110 |
1 | ||
| 72110-52070 |
NLP11#,NSP110 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-52231 |
NLP110,NSP110..RHD..N |
1 | ||
| 72130-52230 |
NLP11#,NSP110..RHD |
1 | ||
| 72130-52231 |
NLP115..RHD..N;NLP110,NSP110..RHD..R |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
NLP110,NSP110 |
1 | ||
| 72147-52060 |
NLP110,NSP110 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
NLP110,NSP110 |
1 | ||
| 72147-52060 |
NLP110,NSP110 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52030 |
NLP11#,NSP110 |
1 | ||
| 72211-52110 |
NLP11#,NSP110 |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010B0 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
NLP11#,NSP110..RHD |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52020B0 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82711-2B660 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90178-08012 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

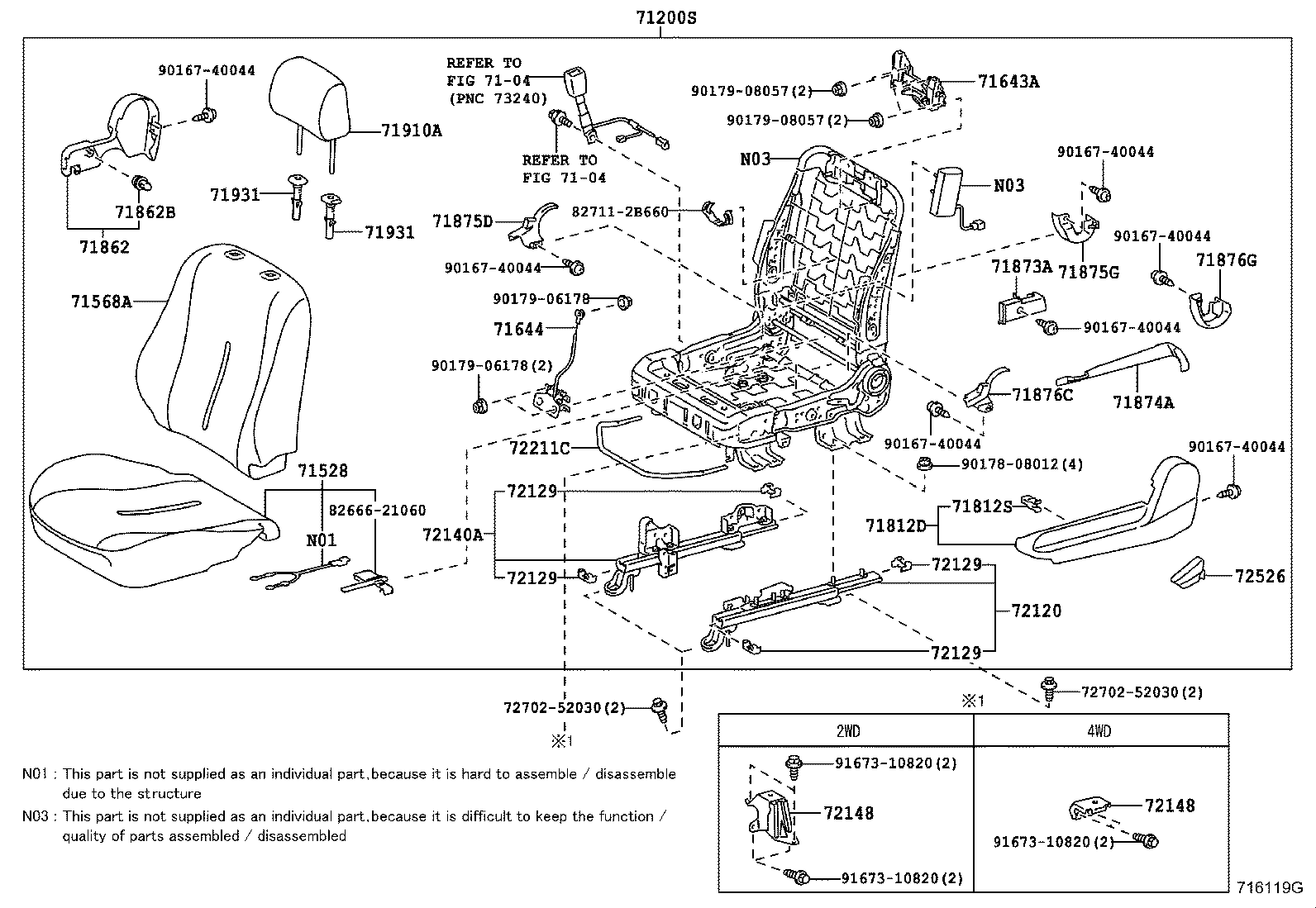

ILLUST NO. 2 OF 2(0901- )RHD
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-52J90B1 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71200-5CS40B0 |
NLP11#,NSP110..RHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71020-52D10B0 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR80B1 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71020-52D00B0 |
NLP11#,NSP110..RHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71020-52D80B0 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71200-5CS42B0 |
NLP11#,NSP110..RHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71200-5CR82B0 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71200-52J92B0 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71020-52T90B1 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71020-52T91B0 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71200-52J94B0 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71200-52J93B0 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71020-52T92B0 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52D90B1 |
NLP11#,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71528-52Q50B1 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71528-52G30B6 |
NLP11#,NSP110..RHD..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71528-52D91B2 |
NLP11#,NSP110..RHD..N GRAY,TRIM1# |
1 | ||
| 71528-52G31B8 |
NLP11#,NSP110..RHD..N SOL PACKAGE,GRAY,TRIM1# |
1 | ||
| 71528-52T30B1 |
NLP11#,NSP110..RHD..N GRAY,TRIM1# |
1 | ||
| 71528-52Q51B2 |
NLP11#,NSP110..RHD..R DK.GRAY,TRIM1# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52N50B0 |
NLP11#,NSP110..R DK.GRAY,TRIM1# |
1 | ||
| 71568-52N60B0 |
NLP11#,NSP110..N SOL PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71568-52M50B0 |
NLP11#,NSP110..N DK.GRAY,TRIM1# |
1 | ||
| 71568-52M51B1 |
NLP11#,NSP110..N GRAY,TRIM1# |
1 | ||
| 71568-52N61B1 |
NLP11#,NSP110..N SOL PACKAGE,GRAY,TRIM1# |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
NLP11#,NSP110 |
2 | ||
| 71643-12011 |
NLP11#,NSP110 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
NLP11#,NSP110 |
2 | ||
| 71644-12030 |
NLP11#,NSP110 |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 90467-10203 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 90467-10203 |
NLP11#,NSP110..N |
1 | ||
| 90467-10203 |
NLP11#,NSP110..R |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
NLP11#,NSP110..R |
1 | ||
| 71769-33020 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 71769-33020 |
NLP11#,NSP110..N |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52190B0 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52070B0 |
NLP11#,NSP110..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-52090B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52170B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D60B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 71910-52D61B0 |
NLP115..N;NLP110,NSP110..RHD..N DK.GRAY,TRIM1# |
2 | ||
| 71910-52D61B0 |
NLP110,NSP110..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 71910-52680B1 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NLP115..N;NLP110,NSP110..RHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NLP110,NSP110..RHD..N W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NLP110,NSP110..RHD..N W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP115..N;NLP110,NSP110..RHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NLP115..N;NLP110,NSP110..RHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NLP110,NSP110..RHD..N W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NLP110,NSP110..RHD..N W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP115..N;NLP110,NSP110..RHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NLP11#,NSP110..R;NLP110,NSP110..LHD..N W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52151 |
NLP11#,NSP110 |
1 | ||
| 72120-52150 |
NLP11#,NSP110 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72129-52030 |
NLP11#,NSP110 |
8 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52141 |
NLP110,NSP110..RHD..N |
1 | ||
| 72140-52141 |
NLP115..RHD..N;NLP110,NSP110..RHD..R |
1 | ||
| 72140-52140 |
NLP11#,NSP110..RHD |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
NLP110,NSP110 |
1 | ||
| 72148-52060 |
NLP110,NSP110 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
NLP110,NSP110 |
1 | ||
| 72148-52060 |
NLP110,NSP110 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-52030 |
NLP11#,NSP110 |
1 | ||
| 72211-52050 |
NLP11#,NSP110 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82666-21060 | ||||
| 82711-2B660 | ||||
| 90167-40044 | ||||
| 90178-08012 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
