NLP110R-AHFNXW (2009)
Toyota Urban Cruiser

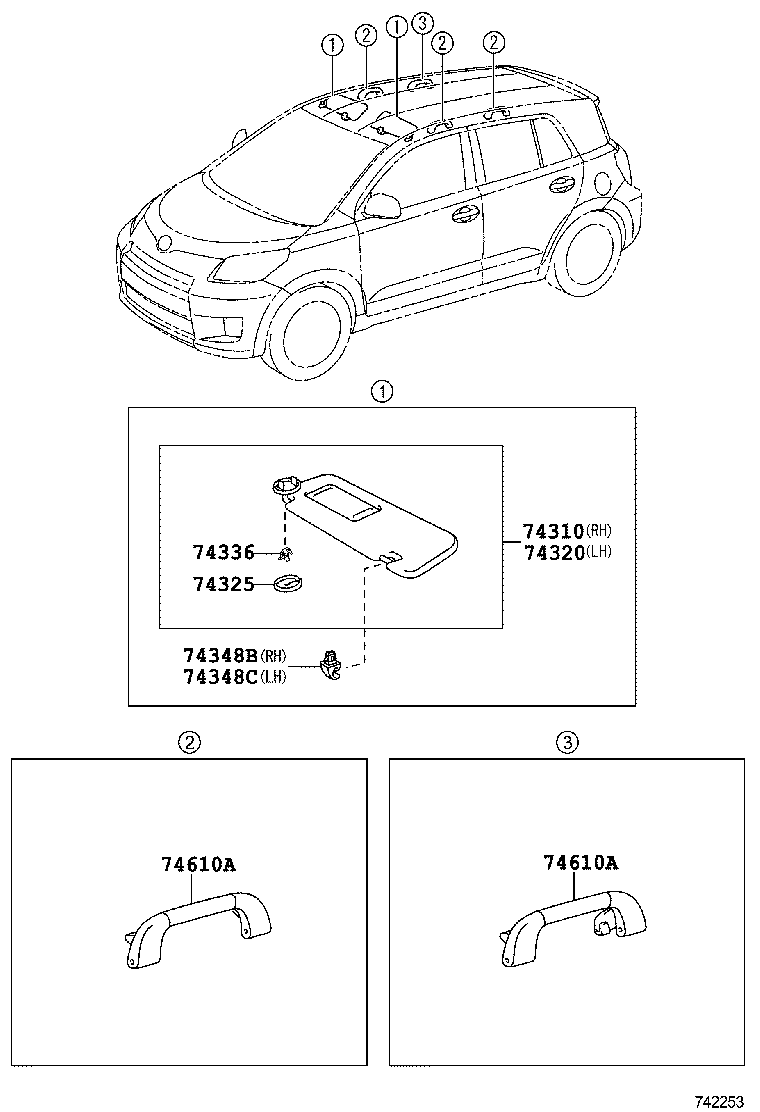

ILLUST NO. 2 OF 2(0901- )RHD
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52810B0 |
NLP11#,NSP110..RHD..R LT.GRAY,TRIM1# |
1 | ||
| 74310-52800B0 |
NLP11#,NSP110..RHD..N LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52A20B0 |
NLP11#,NSP110..RHD AIR BAG CAUTION LABEL(VISOR)-ENGLISH & *GDFSP,LT.GRAY,TRIM1# |
1 | ||
| 74320-52A90B0 |
NLP11#,NSP110..RHD AIR BAG CAUTION LABEL(VISOR)-*EGPRBT,LT.GRAY,TRIM1# |
1 | ||
| 74320-52A00B0 |
NLP11#,NSP110..RHD LT.GRAY,TRIM1# |
1 | ||
| 74325 - COVER, VISOR BRACKET | ||||
| 74318-52020B1 |
NLP11#,NSP110 LT.GRAY,TRIM1#,LH |
1 | ||
| 74317-52010B1 |
NLP11#,NSP110 LT.GRAY,TRIM1#,RH |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
NLP11#,NSP110 |
2 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-33040B1 |
NLP11#,NSP110 LT.GRAY,TRIM1# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-33040B1 |
NLP11#,NSP110 LT.GRAY,TRIM1# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52030B1 |
NLP11#,NSP110 LT.GRAY,TRIM1#,W(COAT HOOK) |
1 | ||
| 74610-52020B1 |
NLP11#,NSP110 LT.GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52030B1 |
NLP11#,NSP110 LT.GRAY,TRIM1#,W(COAT HOOK) |
1 | ||
| 74610-52020B1 |
NLP11#,NSP110 LT.GRAY,TRIM1# |
3 | ||

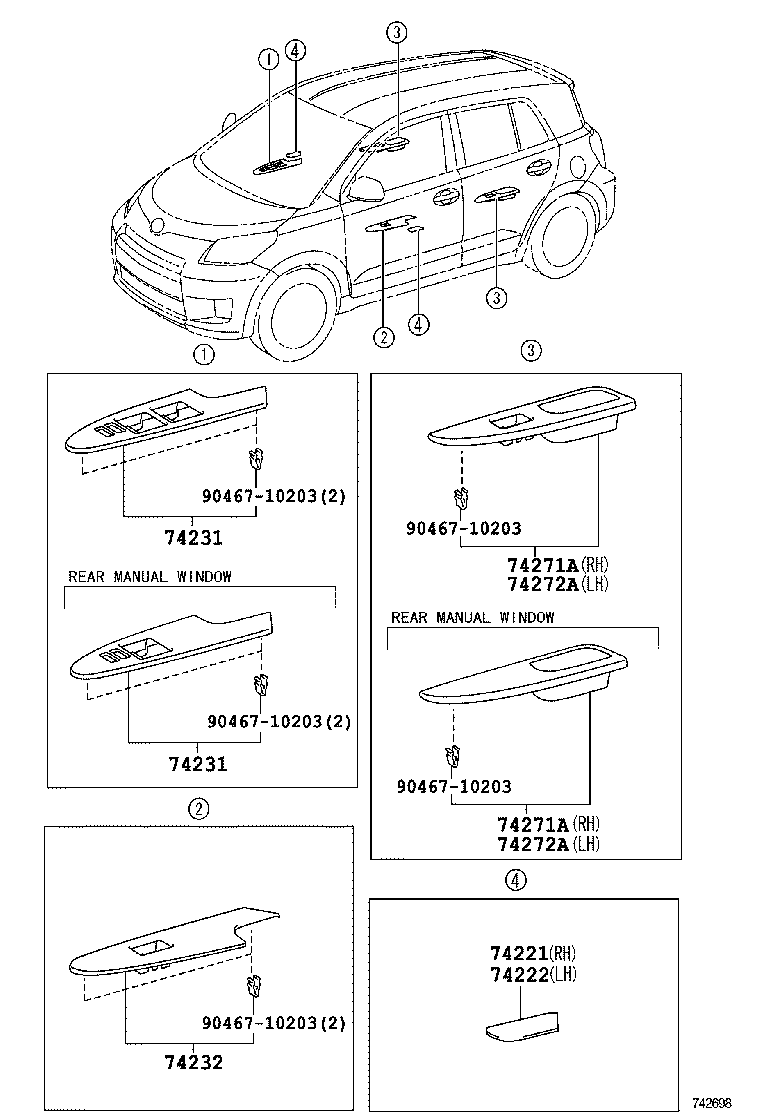

ILLUST NO. 1 OF 2(0901- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-52030 |
NLP11#,NSP110 |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-52030 |
NLP11#,NSP110 |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52460C0 |
NLP11#,NSP110..RHD..N BLACK & WHITE CONCEPT,BLACK,TRIM1# |
1 | ||
| 74231-52690B0 |
NLP11#,NSP110..RHD..N GRAY,TRIM1# |
1 | ||
| 74231-52560B0 |
NLP11#,NSP110..RHD..R SILVER,TRIM1# |
1 | ||
| 74231-52340B0 |
NLP11#,NSP110..RHD..N SILVER,TRIM1# |
1 | ||
| 74231-52710B0 |
NLP11#,NSP110..RHD..R GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52460C0 |
NLP11#,NSP110..RHD..N BLACK & WHITE CONCEPT,BLACK,TRIM1# |
1 | ||
| 74231-52690B0 |
NLP11#,NSP110..RHD..N GRAY,TRIM1# |
1 | ||
| 74231-52560B0 |
NLP11#,NSP110..RHD..R SILVER,TRIM1# |
1 | ||
| 74231-52340B0 |
NLP11#,NSP110..RHD..N SILVER,TRIM1# |
1 | ||
| 74231-52710B0 |
NLP11#,NSP110..RHD..R GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52470B0 |
NLP11#,NSP110..RHD SILVER,TRIM1# |
1 | ||
| 74232-52610B0 |
NLP11#,NSP110..RHD GRAY,TRIM1# |
1 | ||
| 74232-52360C0 |
NLP11#,NSP110..RHD..N BLACK & WHITE CONCEPT,BLACK,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-52170B0 |
NLP11#,NSP110..N SILVER,TRIM1# |
1 | ||
| 74271-52110C0 |
NLP11#,NSP110..N BLACK & WHITE CONCEPT,BLACK,TRIM1# |
1 | ||
| 74271-52180B0 |
NLP11#,NSP110..R SILVER,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-52170B0 |
NLP11#,NSP110..N SILVER,TRIM1# |
1 | ||
| 74271-52110C0 |
NLP11#,NSP110..N BLACK & WHITE CONCEPT,BLACK,TRIM1# |
1 | ||
| 74271-52180B0 |
NLP11#,NSP110..R SILVER,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-52170B0 |
NLP11#,NSP110..R SILVER,TRIM1# |
1 | ||
| 74272-52160B0 |
NLP11#,NSP110..N SILVER,TRIM1# |
1 | ||
| 74272-52100C0 |
NLP11#,NSP110..N BLACK & WHITE CONCEPT,BLACK,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-52170B0 |
NLP11#,NSP110..R SILVER,TRIM1# |
1 | ||
| 74272-52160B0 |
NLP11#,NSP110..N SILVER,TRIM1# |
1 | ||
| 74272-52100C0 |
NLP11#,NSP110..N BLACK & WHITE CONCEPT,BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
