NLP110R-AHFNXW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
May 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )

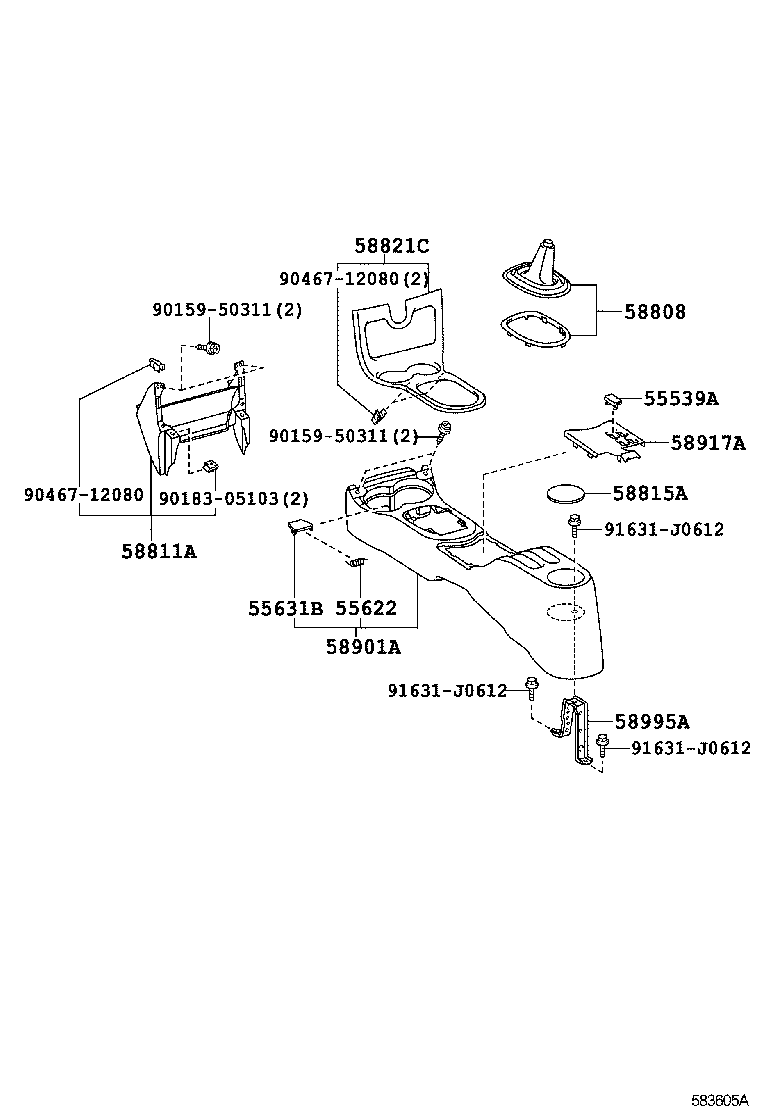

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070B0 |
NLP110..RHD DK.GRAY,TRIM1# |
3 | ||
| 55539-52070C0 |
NLP110..RHD BLACK,TRIM1# |
3 | ||
| 55622 - SPRING, INSTR PANEL CUP HOLDER, NO.1 | ||||
| 55622-52040 |
NLP11#,NSP110 |
2 | ||
| 55631B - LOCK, INSTRUMENT PANEL CUP HOLDER, NO.1 | ||||
| 55631-52040B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
2 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-52110B0 |
NLP11#,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 58808-52110 |
NLP11#,NSP110 |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-52020B0 |
NLP110,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-52050 |
NLP11#,NSP110 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-52070B0 |
NLP110,NSP110 SILVER,TRIM1# |
1 | ||
| 58821-52071C0 |
NLP110,NSP110..N BLACK,TRIM10 |
1 | ||
| 58821-52071B1 |
NLP110,NSP110..N GRAY,TRIM10 |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-52050B0 |
NLP110,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 58917A - COVER, CONSOLE BOX, REAR | ||||
| 58917-52070B0 |
NLP110,NSP110 DK.GRAY,TRIM1# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58902-52020 |
NLP110,NSP110 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 91631-J0612 | ||||
