NLP110R-AHFNXW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
May 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )RHD

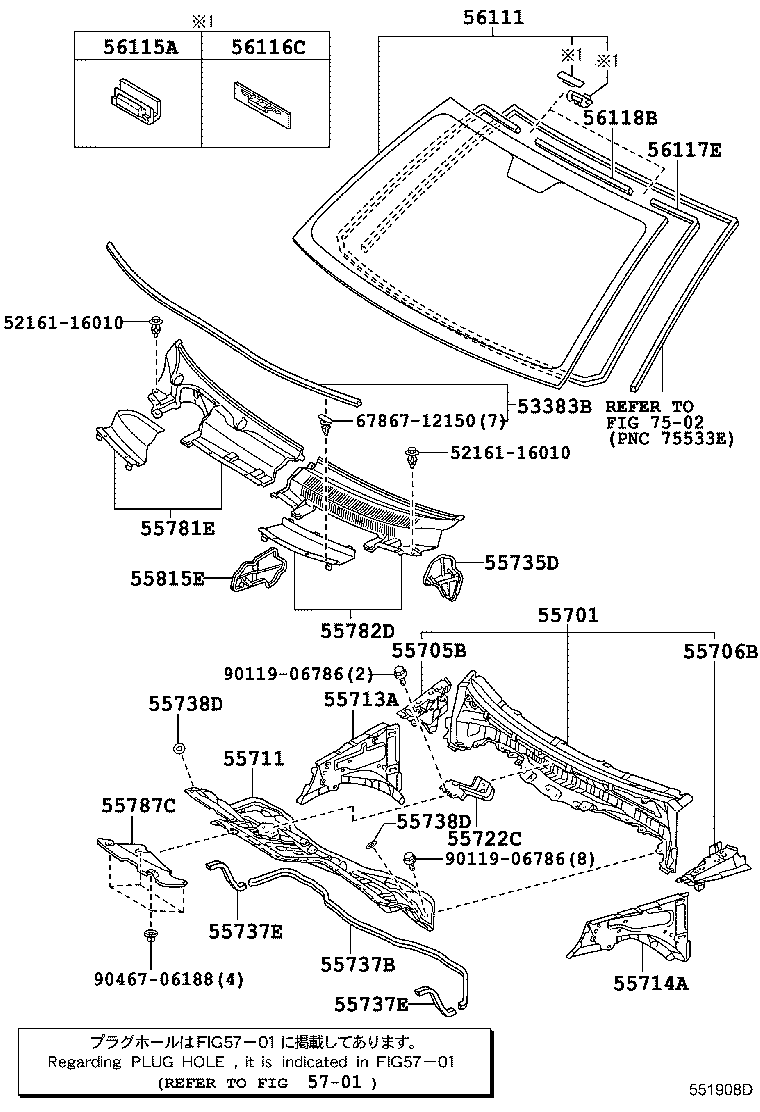

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-52110 |
NLP11#,NSP110 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-52320 |
NLP11#,NSP110..RHD |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-52130 |
NLP11#,NSP110 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-52130 |
NLP11#,NSP110 |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-52180 |
NLP11#..RHD |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-52110 |
NLP11#,NSP110 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-52110 |
NLP11#,NSP110 |
1 | ||
| 55722C - BRACE, COWL TOP TO COWL, INNER | ||||
| 55722-52070 |
NLP11#,NSP110..RHD |
1 | ||
| 55735D - SEAL, FRONT AIR SHUTTER, RH | ||||
| 55735-52060 |
NLP11#,NSP110..RHD |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-52010 |
NLP11#,NSP110 L=1295 |
1 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52050 |
NLP11#,NSP110 L=250.0 |
2 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52050 |
NLP11#,NSP110 L=250.0 |
2 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52040 |
NLP11#,NSP110 |
2 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52040 |
NLP11#,NSP110 |
2 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-52150 |
NLP11#,NSP110..RHD |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55709-52100 |
NLP11#,NSP110..RHD |
1 | ||
| 55787C - INSULATOR, COWL TOP PANEL, NO.1 | ||||
| 55787-52030 |
NLP11#..RHD |
1 | ||
| 55815E - SEAL, FRONT VENTILATOR, NO.1 | ||||
| 55815-52020 |
NLP11#,NSP110..RHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-52360 |
NLP11#,NSP110 *LAM,T=4.56,GREEN |
1 | ||
| 56101-52540 |
NLP11#,NSP110..N *LAM,T=4.56,GREEN,SOL PACKAGE |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NLP11#,NSP110 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NLP11#,NSP110 |
2 | ||
| 56117E - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-52160 |
NLP11#,NSP110..N L=3043,SOL PACKAGE |
1 | ||
| 56117-52160 |
NLP11#,NSP110 L=3043 |
1 | ||
| 56118B - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56118-52110 |
NLP11#,NSP110..N L=620,SOL PACKAGE |
1 | ||
| 56118-52110 |
NLP11#,NSP110 L=620 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 67867-12150 | ||||
| 90119-06786 | ||||
| 90467-06188 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7502 | ||||
