NLP110R-AHFNXW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
May 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )NLP11#

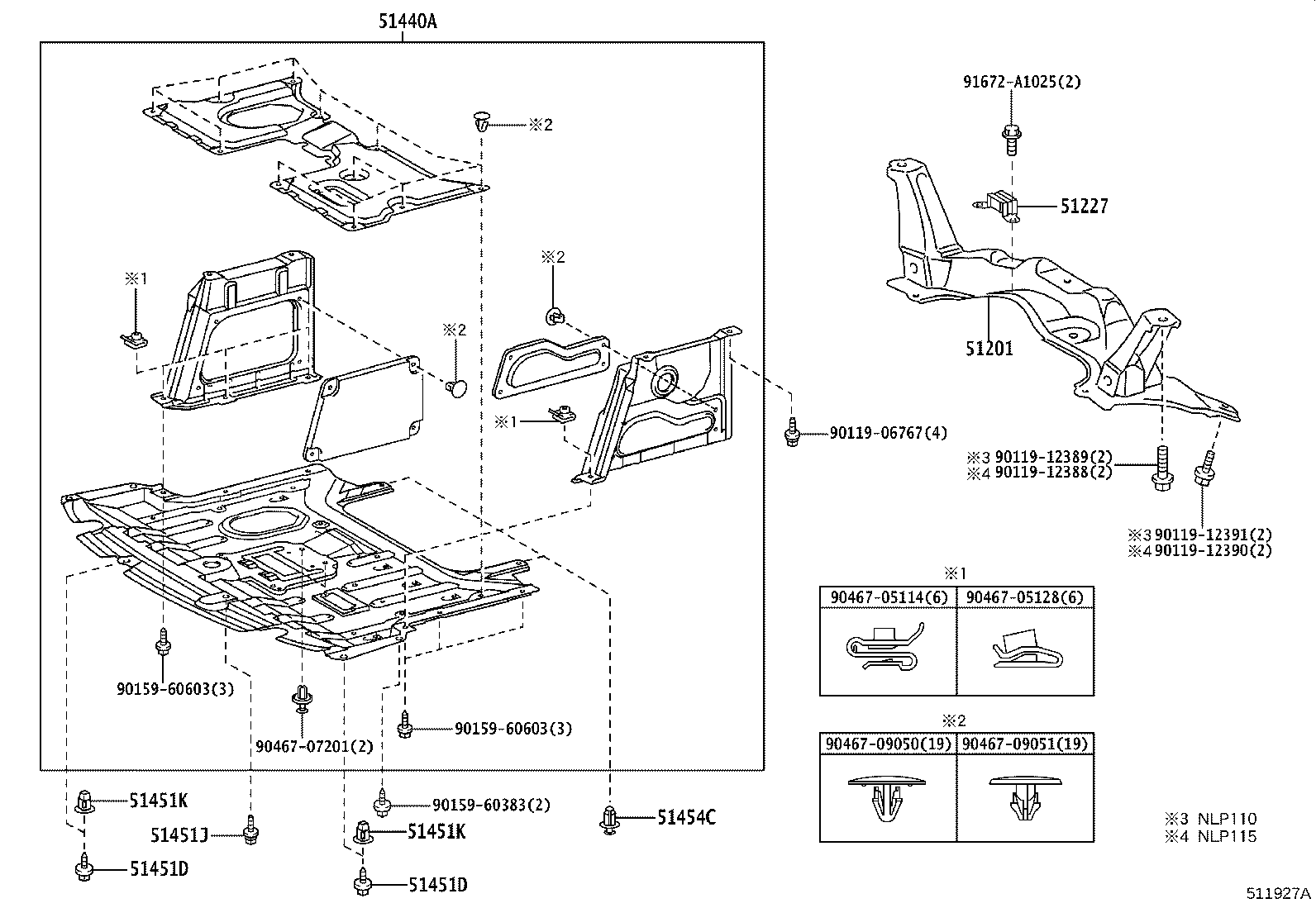

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-52093 |
NLP110,NSP110 |
1 | ||
| 51201-52094 |
NLP110,NSP110 |
1 | ||
| 51201-52090 |
NLP110,NSP110 |
1 | ||
| 51201-52096 |
NLP110,NSP110 |
1 | ||
| 51201-52097 |
NLP110,NSP110 |
1 | ||
| 51201-52095 |
NLP110,NSP110 |
1 | ||
| 51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER | ||||
| 51227-52070 |
NLP11# |
1 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51410-52061 |
NLP11# |
1 | ||
| 51410-52060 |
NLP11# |
1 | ||
| 51410-52062 |
NLP11# |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NLP11#,NSP110 |
3 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NLP11#,NSP110 |
3 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-06767 |
NLP11#,NSP110 |
1 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NLP11#,NSP110 |
3 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NLP11#,NSP110 |
3 | ||
| 51454C - SILENCER, ENGINE UNDER COVER, REAR | ||||
| 51454-48010 |
NLP11# |
2 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-12388 | ||||
| 90119-12389 | ||||
| 90119-12390 | ||||
| 90119-12391 | ||||
| 90159-60383 | ||||
| 90159-60603 | ||||
| 90467-05114 | ||||
| 90467-05128 | ||||
| 90467-07201 | ||||
| 90467-09050 | ||||
| 90467-09051 | ||||
| 91672-A1025 | ||||
