NLP110L-AHFRXW (2009)

Toyota Urban Cruiser

Production Jan 2009 - May 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )1NDTV

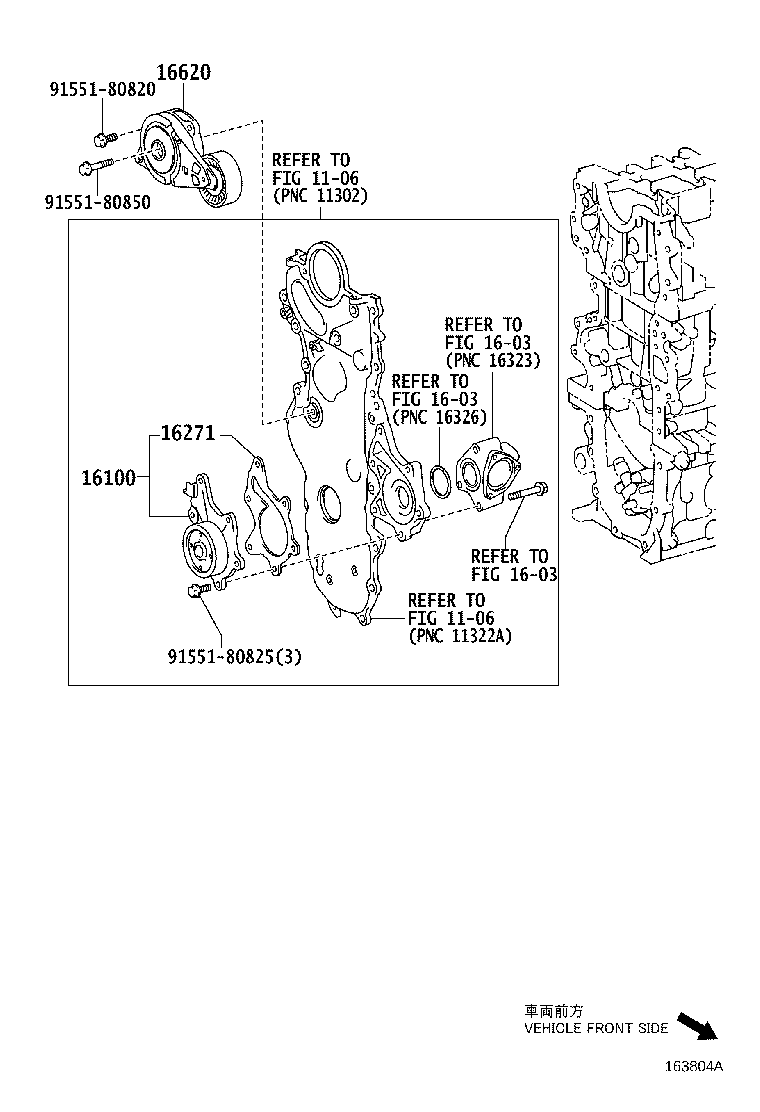

Click highlighted areas on diagram

diagram 1106 1106 1603 1603 1603 16100 16271 16620 9155180820 9155180825 9155180850
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39525

1NDTV..NLP11#

 1
16271 - GASKET, WATER PUMP
16271-33030

1NDTV..NLP11#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-33020

1NDTV..NLP11#

 1
16620-33021

1NDTV..NLP11#

 1
Common parts
91551-80820
91551-80825
91551-80850
Linked diagrams
1106
1603
