KP36V- (1969)
Toyota Toyota1000
Production
Apr 1969
-
Sep 1978
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

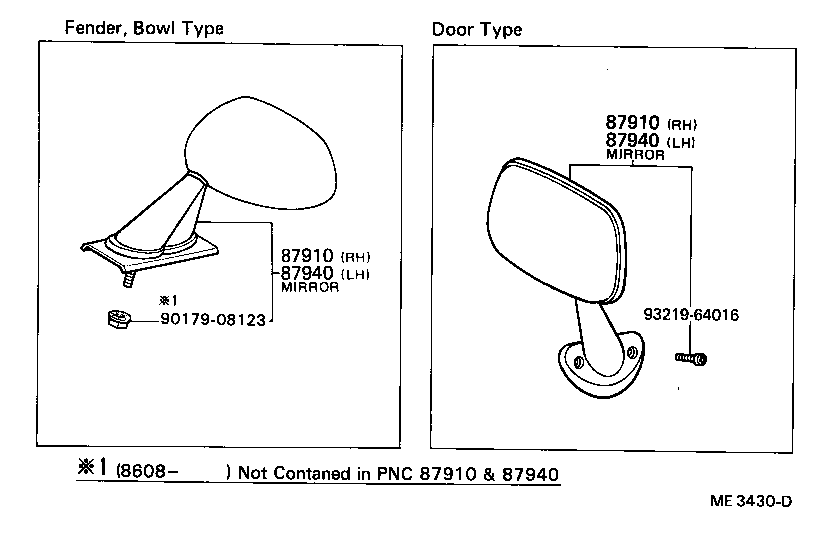

| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-19035 |
KP3# BOWL TYPE |
1 | ||
| 87910-19036 |
KP3# BOWL TYPE,WHITE |
1 | ||
| 87910-19065 |
KP3# BOWL TYPE,BROWN |
1 | ||
| 87910-19115 |
KP3# BOWL TYPE |
1 | ||
| 87910-19075 |
KP3# BOWL TYPE,YELLOW |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-19035 |
KP3# BOWL TYPE |
1 | ||
| 87910-19036 |
KP3# BOWL TYPE,WHITE |
1 | ||
| 87910-19065 |
KP3# BOWL TYPE,BROWN |
1 | ||
| 87910-19115 |
KP3# BOWL TYPE |
1 | ||
| 87910-19075 |
KP3# BOWL TYPE,YELLOW |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-19065 |
KP3# BOWL TYPE,YELLOW |
1 | ||
| 87940-19035 |
KP3# BOWL TYPE |
1 | ||
| 87940-19105 |
KP3# BOWL TYPE |
1 | ||
| 87940-19055 |
KP3# BOWL TYPE,BROWN |
1 | ||
| 87940-19036 |
KP3# BOWL TYPE,WHITE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-19065 |
KP3# BOWL TYPE,YELLOW |
1 | ||
| 87940-19035 |
KP3# BOWL TYPE |
1 | ||
| 87940-19105 |
KP3# BOWL TYPE |
1 | ||
| 87940-19055 |
KP3# BOWL TYPE,BROWN |
1 | ||
| 87940-19036 |
KP3# BOWL TYPE,WHITE |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 93219-64016 | ||||
(6904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

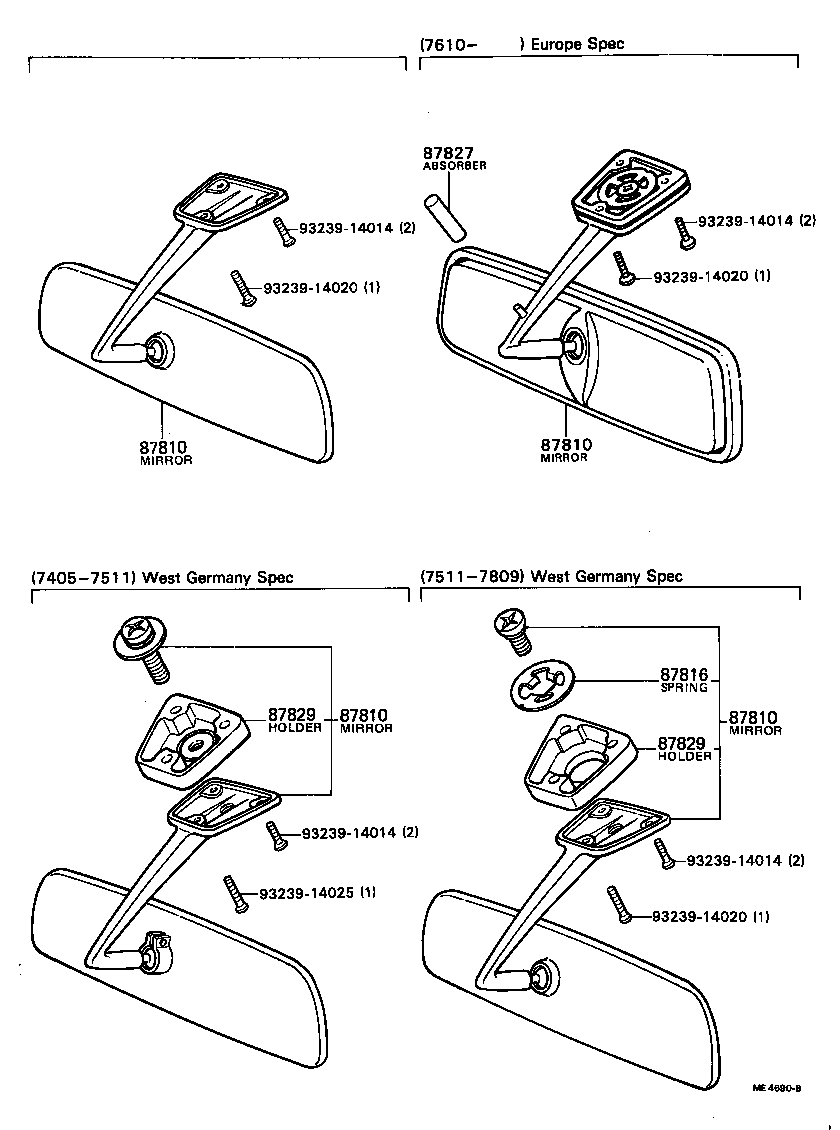

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-1005003 |
KP3# GRAY |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-1005003 |
KP3# GRAY |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-1005003 |
KP3# GRAY |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-1005003 |
KP3# GRAY |
1 | ||
| Common parts | ||||
| 93239-14014 | ||||
| 93239-14020 | ||||
| 93239-14025 | ||||
