Toyota Toyota1000 KP36 METER - JDM Part Detective

KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978

Engine 2K

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7010- )

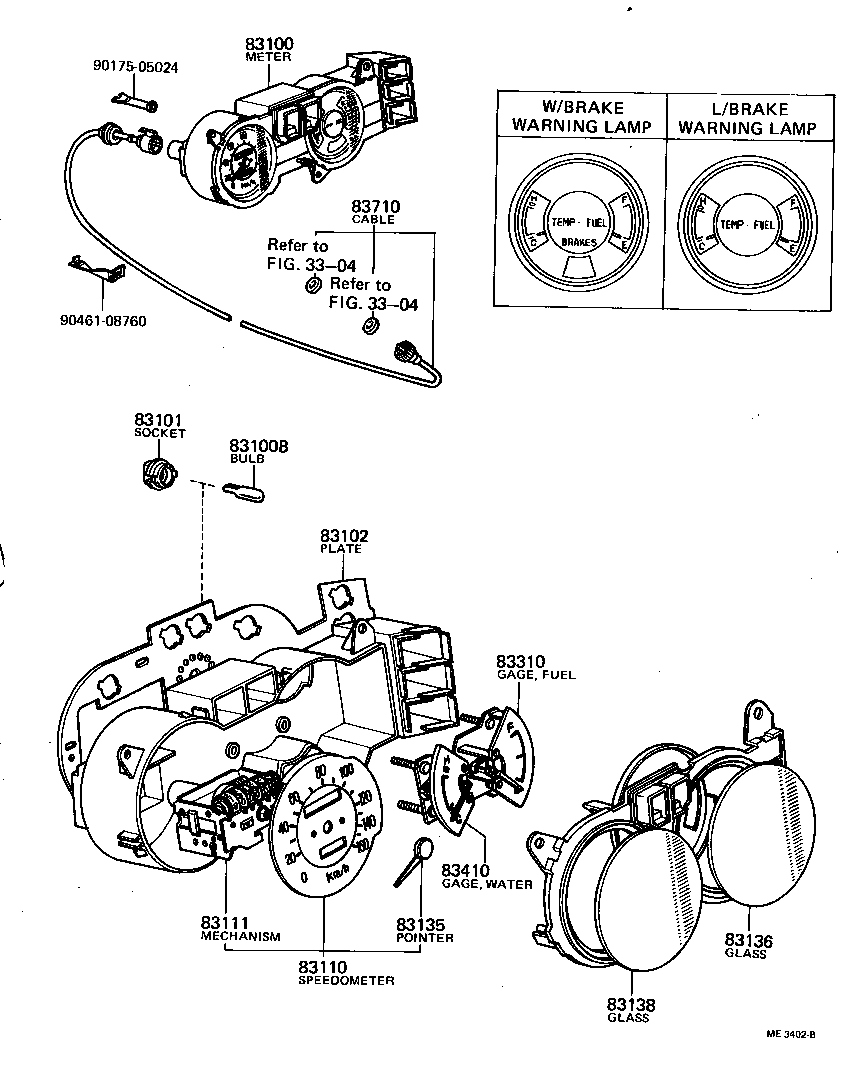

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83100-10140	KP3# MILE	04/1969 - 10/1970	1
83100-10180	KP3#..RHD MILE	10/1970 - 12/1971	1
83100-10131	KP3#..RHD KM	10/1970 - 12/1971	1
83100-10132	KP3#..RHD KM	01/1972 - 10/1972	1
83100-10181	KP3#..RHD MILE	01/1972 - 11/1975	1
83100-10130	KP3# KM	04/1969 - 10/1970	1
83100-10133	KP3#..RHD KM	10/1972 - 11/1975	1
83100B - BULB, COMBINATION METER, NO.1
90981-11007	KP3# 12V 3W,12V 3W	04/1969 - 09/1969	8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010	KP3#	04/1969 - 12/1971	8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-10021	KP3#..RHD	10/1970 - 12/1971	1
83102-10020	KP3#	04/1969 - 10/1970	1
83102-10023	KP3#..RHD	10/1972 - 11/1975	1
83102-10022	KP3#..RHD	01/1972 - 10/1972	1
83110 - SPEEDOMETER ASSY
83110-10121	KP3#..RHD KM	10/1970 - 12/1971	1
83110-10122	KP3#..RHD KM	01/1972 - 10/1972	1
83110-10132	KP30,36..RHD MILE	11/1975 - 08/1977	1
83110-10124	KP3#..RHD KM	11/1975 - 08/1977	1
83110-10130	KP3# MILE	04/1969 - 10/1970	1
83110-10120	KP3# KM	04/1969 - 10/1970	1
83110-10123	KP3#..RHD KM	10/1972 - 11/1975	1
83110-10131	KP3#..RHD MILE	10/1970 - 11/1975	1
83111 - MECHANISM, SPEEDOMETER
83112-12022	KP3# KM	01/1972 - 11/1975	1
83112-12041	KP3# MILE	01/1972 - 11/1975	1
83310 - GAGE ASSY, FUEL RECEIVER
83310-10050	KP3#	04/1969 - 10/1970	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-10010	KP3#	04/1969 - 10/1970	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-19365	KP30,36..(SED,V)..RHD L=1600,W/BRAKE BOOSTER	12/1975 - 09/1978	1
83710-19155	KP3#..RHD L=1500	01/1972 - 11/1975	1
83710-39075	KP3#..RHD L=1600	04/1969 - 12/1971	1
Common parts
90175-05024
90461-08760
Linked diagrams
3304

(6904-7010)

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83100-10140	KP3# MILE	04/1969 - 10/1970	1
83100-10180	KP3#..RHD MILE	10/1970 - 12/1971	1
83100-10131	KP3#..RHD KM	10/1970 - 12/1971	1
83100-10132	KP3#..RHD KM	01/1972 - 10/1972	1
83100-10181	KP3#..RHD MILE	01/1972 - 11/1975	1
83100-10130	KP3# KM	04/1969 - 10/1970	1
83100-10133	KP3#..RHD KM	10/1972 - 11/1975	1
83100B - BULB, COMBINATION METER, NO.1
90981-11007	KP3# 12V 3W,12V 3W	04/1969 - 09/1969	8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010	KP3#	04/1969 - 12/1971	8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-10021	KP3#..RHD	10/1970 - 12/1971	1
83102-10020	KP3#	04/1969 - 10/1970	1
83102-10023	KP3#..RHD	10/1972 - 11/1975	1
83102-10022	KP3#..RHD	01/1972 - 10/1972	1
83110 - SPEEDOMETER ASSY
83110-10121	KP3#..RHD KM	10/1970 - 12/1971	1
83110-10122	KP3#..RHD KM	01/1972 - 10/1972	1
83110-10132	KP30,36..RHD MILE	11/1975 - 08/1977	1
83110-10124	KP3#..RHD KM	11/1975 - 08/1977	1
83110-10130	KP3# MILE	04/1969 - 10/1970	1
83110-10120	KP3# KM	04/1969 - 10/1970	1
83110-10123	KP3#..RHD KM	10/1972 - 11/1975	1
83110-10131	KP3#..RHD MILE	10/1970 - 11/1975	1
83143 - HOOD, COMBINATION METER, FRONT
83143-10130	KP3#	04/1969 - 10/1970	1
83144 - HOOD, COMBINATION METER, REAR
83144-10130	KP3#	04/1969 - 10/1970	1
83310 - GAGE ASSY, FUEL RECEIVER
83310-10050	KP3#	04/1969 - 10/1970	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-10010	KP3#	04/1969 - 10/1970	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-19365	KP30,36..(SED,V)..RHD L=1600,W/BRAKE BOOSTER	12/1975 - 09/1978	1
83710-19155	KP3#..RHD L=1500	01/1972 - 11/1975	1
83710-39075	KP3#..RHD L=1600	04/1969 - 12/1971	1
Common parts
90099-00867
90119-06002
93385-15014
93540-13514
Linked diagrams
3304
3505
