Toyota Toyota1000 KP36 FUEL TANK & TUBE

Manufacturers Home
Toyota
EU
TOYOTA1000
KP36V- (1969)
7701 - FUEL TANK & TUBE

KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978

Engine 2K

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

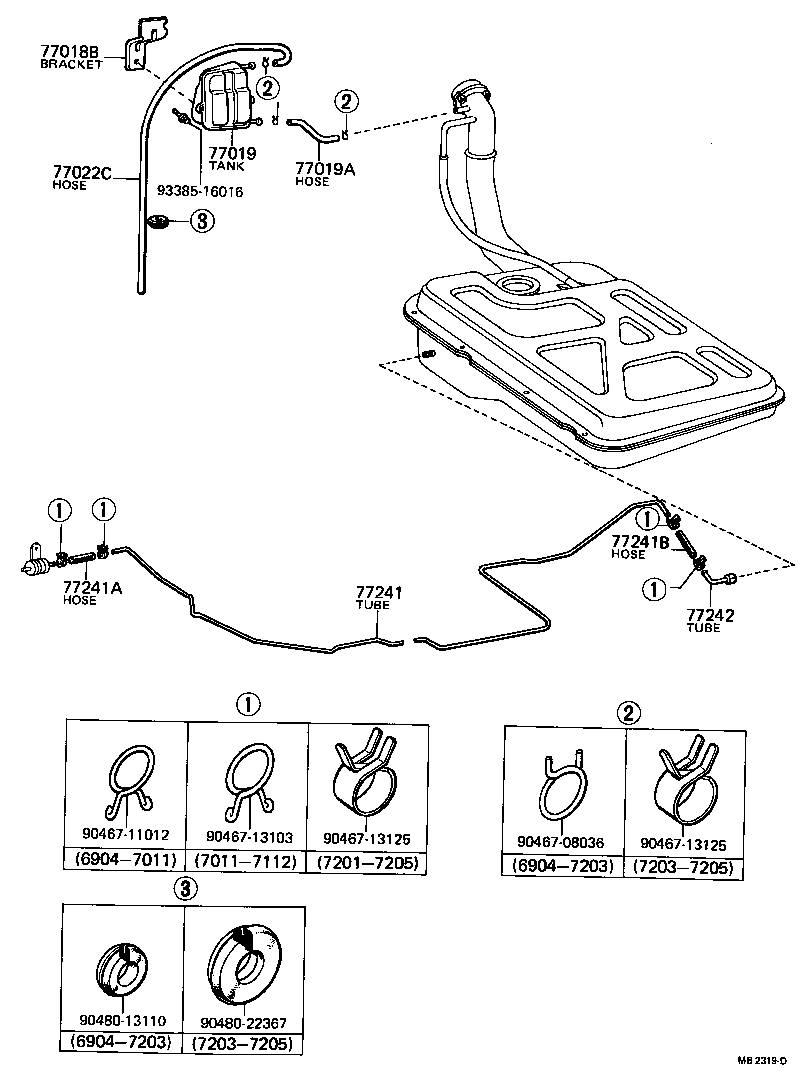

(6904-7205)V

Click highlighted areas on diagram

Part #	Description	Period	Qty
77018B - BRACKET, VAPOUR SEPARATOR
61785-11010	KP36..V	04/1969 - 05/1972	2
61785-11020	KP36..V	05/1972 - 09/1978	1
77019 - TANK SUB-ASSY, FUEL EXPANSION
77267-11010	KP36..V	04/1969 - 05/1972	1
77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
90446-09217	KP36..V L=90	04/1969 - 03/1972	1
95331-08009	KP36..V *H,L=90,L=90	03/1972 - 05/1972	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
90446-09207	KP36 L=850	04/1969 - 03/1970	1
90446-09207	KP36..V L=850	03/1970 - 03/1972	1
95332-04026	KP36..V L=260	04/1974 - 09/1978	1
95331-08026	KP36..V L=260	05/1972 - 04/1973	1
95331-06026	KP36..V L=260	04/1973 - 04/1974	1
95331-08085	KP36..V L=850	03/1972 - 05/1972	1
77241 - TUBE, FUEL MAIN, NO.1
77241-11064	KP36..V	10/1973 - 06/1975	1
77241-11061	KP36..V	04/1970 - 10/1971	1
77241-11064	KP36..V..RHD	06/1975 - 11/1975	1
77241-11060	KP36..V	04/1969 - 04/1970	1
77241-11063	KP36..V	04/1973 - 10/1973	1
77241-11062	KP36..V	10/1971 - 04/1973	1
77251-11080	KP36..V	11/1975 - 09/1978	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06007	KP3# *H,L=70,L=70	04/1973 - 11/1975	1
95331-06008	KP3# *H,L=80,L=80	11/1975 - 02/1976	1
90445-12695	KP3# L=80	11/1970 - 12/1971	1
90445-12414	KP3# L=80	04/1969 - 11/1970	1
95331-06009	KP3# *H,L=90,L=90	02/1976 - 06/1977	1
95331-08008	KP3# *H,L=80,L=80	01/1972 - 04/1973	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-12181	KP36 L=90	04/1969 - 11/1969	1
90445-12678	KP36 L=90	11/1970 - 12/1971	1
95331-08009	KP36 *H,L=90,L=90	01/1972 - 04/1973	1
95332-06015	KP36..V *H,L=150,L=150	11/1977 - 09/1978	1
90445-12467	KP36 L=90	11/1969 - 11/1970	1
95331-06015	KP36..V *H,L=150,L=150	04/1973 - 11/1977	1
77242 - TUBE, FUEL MAIN, NO.2
77209-13010	KP36..V	04/1969 - 04/1973	1
Common parts
90467-08036
90467-11012
90467-13103
90467-13125
90480-13110
90480-22367
93385-16016

(6904-7205)V

Click highlighted areas on diagram

Part #	Description	Period	Qty
77031 - CAP ASSY, FUEL TANK
77310-12010	KP3#	04/1969 - 06/1969	1
77310-10030	KP3#	06/1971 - 12/1971	1
77310-12011	KP3#	06/1969 - 06/1971	1
77310-10030	KP36	01/1972 - 05/1972	1
77031B - GASKET (FOR FUEL TANK CAP)
77316-10010	KP3#	06/1971 - 12/1971	1
77316-12010	KP3#	04/1969 - 06/1969	1
77316-12040	KP36	06/1973 - 11/1975	1
77316-12040	KP3#	04/1973 - 06/1973	1
77316-10010	KP36	01/1972 - 05/1972	1
77316-12040	KP36	05/1972 - 04/1973	1
77316-12012	KP3#	06/1969 - 06/1971	1
77100 - TANK ASSY, FUEL
77100-11062	KP36..V	04/1973 - 09/1978	1
77100-11060	KP36..V	04/1969 - 05/1972	1
77100-11061	KP36..V	05/1972 - 04/1973	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	KP3#	04/1969 - 08/1988	1
77100B - GASKET(FOR FUEL TANK)
90430-12038	KP3#	04/1969 - 05/1977	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-18878	KP36..V L=680	05/1972 - 10/1972	1
90446-09001	KP36..V L=575	04/1969 - 05/1972	1
90445-18878	KP36 L=680	10/1972 - 11/1975	1
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
90446-18206	KP36..V L=560	04/1969 - 05/1972	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-11901	KP36	04/1969 - 09/1969	1
77201-11071	KP36	05/1972 - 10/1972	1
77201-11071	KP36..V	10/1972 - 09/1978	1
77201-11902	KP36	09/1969 - 05/1972	1
77213 - HOSE, FUEL TANK SUB INLET
77213-11041	KP36..V	09/1972 - 09/1978	1
77213-11040	KP36..V	04/1969 - 09/1972	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-12010	KP3#	04/1969 - 08/1988	1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77308-11020	KP36..V W/FUEL LOCK	04/1969 - 09/1978	1
77308-11010	KP36..V W/O FUEL LOCK	04/1969 - 11/1975	1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05040	KP3#	04/1969 - 12/1971	1
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
90508-16163	KP3#	04/1969 - 12/1971	1
77652 - CUSHION, FUEL TANK, NO.1
77651-13010	KP36..V	04/1969 - 09/1978	3
Common parts
90202-04046
90467-17042
90480-25208
90480-75154
91656-40818
93249-14012
93315-15010
96111-10670

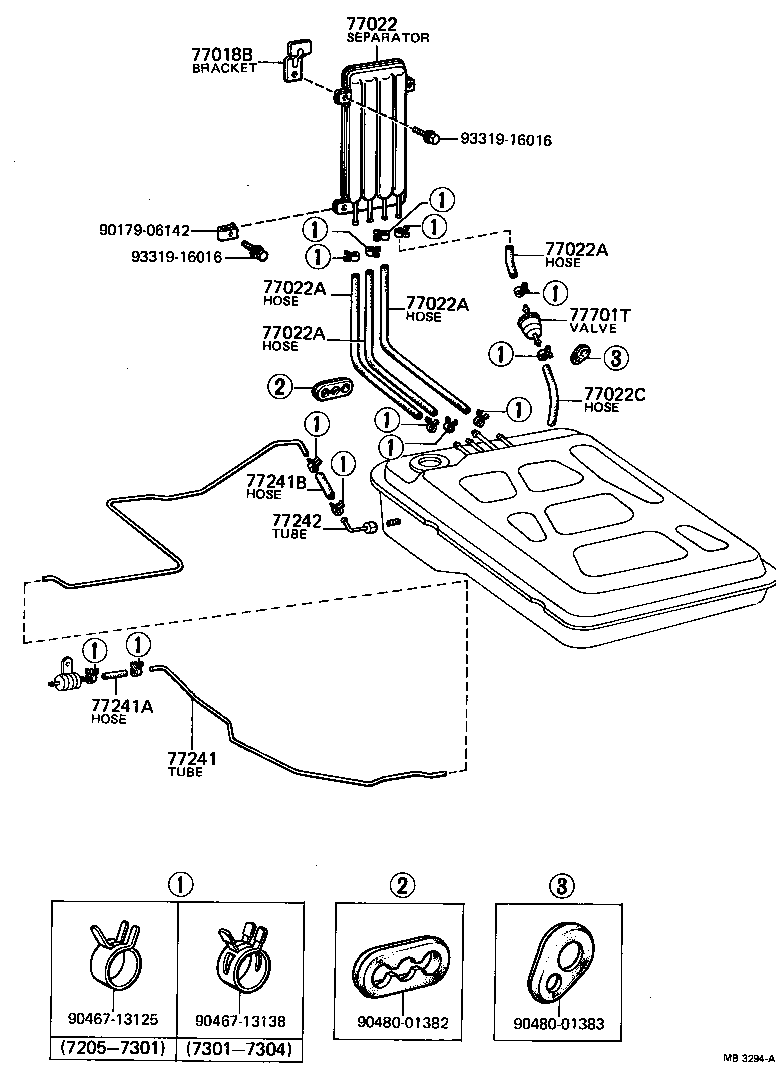

(7205-7304)V

Click highlighted areas on diagram

Part #	Description	Period	Qty
77018B - BRACKET, VAPOUR SEPARATOR
61785-11010	KP36..V	04/1969 - 05/1972	2
61785-11020	KP36..V	05/1972 - 09/1978	1
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77267-11020	KP36..V	05/1972 - 04/1973	1
77267-11021	KP36..V	04/1973 - 09/1978	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06055	KP36..V *H,L=550,L=550	04/1973 - 09/1978	3
95331-08055	KP36..V *H,L=550,L=550	05/1972 - 04/1973	3
95332-06008	KP36..V *H,L=80,L=80	11/1977 - 09/1978	1
95331-08008	KP36..V *H,L=80,L=80	05/1972 - 04/1973	1
95331-06008	KP36..V *H,L=80,L=80	04/1973 - 11/1977	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06055	KP36..V *H,L=550,L=550	04/1973 - 09/1978	3
95331-08055	KP36..V *H,L=550,L=550	05/1972 - 04/1973	3
95332-06008	KP36..V *H,L=80,L=80	11/1977 - 09/1978	1
95331-08008	KP36..V *H,L=80,L=80	05/1972 - 04/1973	1
95331-06008	KP36..V *H,L=80,L=80	04/1973 - 11/1977	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06055	KP36..V *H,L=550,L=550	04/1973 - 09/1978	3
95331-08055	KP36..V *H,L=550,L=550	05/1972 - 04/1973	3
95332-06008	KP36..V *H,L=80,L=80	11/1977 - 09/1978	1
95331-08008	KP36..V *H,L=80,L=80	05/1972 - 04/1973	1
95331-06008	KP36..V *H,L=80,L=80	04/1973 - 11/1977	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06055	KP36..V *H,L=550,L=550	04/1973 - 09/1978	3
95331-08055	KP36..V *H,L=550,L=550	05/1972 - 04/1973	3
95332-06008	KP36..V *H,L=80,L=80	11/1977 - 09/1978	1
95331-08008	KP36..V *H,L=80,L=80	05/1972 - 04/1973	1
95331-06008	KP36..V *H,L=80,L=80	04/1973 - 11/1977	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
90446-09207	KP36 L=850	04/1969 - 03/1970	1
90446-09207	KP36..V L=850	03/1970 - 03/1972	1
95332-04026	KP36..V L=260	04/1974 - 09/1978	1
95331-08026	KP36..V L=260	05/1972 - 04/1973	1
95331-06026	KP36..V L=260	04/1973 - 04/1974	1
95331-08085	KP36..V L=850	03/1972 - 05/1972	1
77241 - TUBE, FUEL MAIN, NO.1
77241-11064	KP36..V	10/1973 - 06/1975	1
77241-11061	KP36..V	04/1970 - 10/1971	1
77241-11064	KP36..V..RHD	06/1975 - 11/1975	1
77241-11060	KP36..V	04/1969 - 04/1970	1
77241-11063	KP36..V	04/1973 - 10/1973	1
77241-11062	KP36..V	10/1971 - 04/1973	1
77251-11080	KP36..V	11/1975 - 09/1978	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06007	KP3# *H,L=70,L=70	04/1973 - 11/1975	1
95331-06008	KP3# *H,L=80,L=80	11/1975 - 02/1976	1
90445-12695	KP3# L=80	11/1970 - 12/1971	1
90445-12414	KP3# L=80	04/1969 - 11/1970	1
95331-06009	KP3# *H,L=90,L=90	02/1976 - 06/1977	1
95331-08008	KP3# *H,L=80,L=80	01/1972 - 04/1973	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-12181	KP36 L=90	04/1969 - 11/1969	1
90445-12678	KP36 L=90	11/1970 - 12/1971	1
95331-08009	KP36 *H,L=90,L=90	01/1972 - 04/1973	1
95332-06015	KP36..V *H,L=150,L=150	11/1977 - 09/1978	1
90445-12467	KP36 L=90	11/1969 - 11/1970	1
95331-06015	KP36..V *H,L=150,L=150	04/1973 - 11/1977	1
77242 - TUBE, FUEL MAIN, NO.2
77209-13010	KP36..V	04/1969 - 04/1973	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10029	KP36	04/1974 - 01/1976	1
90917-10004	KP36	05/1972 - 06/1972	1
90917-10012	KP36	06/1972 - 04/1973	1
90917-10020	KP36	04/1973 - 04/1974	1
Common parts
90179-06142
90467-13125
90467-13138
90480-01382
90480-01383
93319-16016

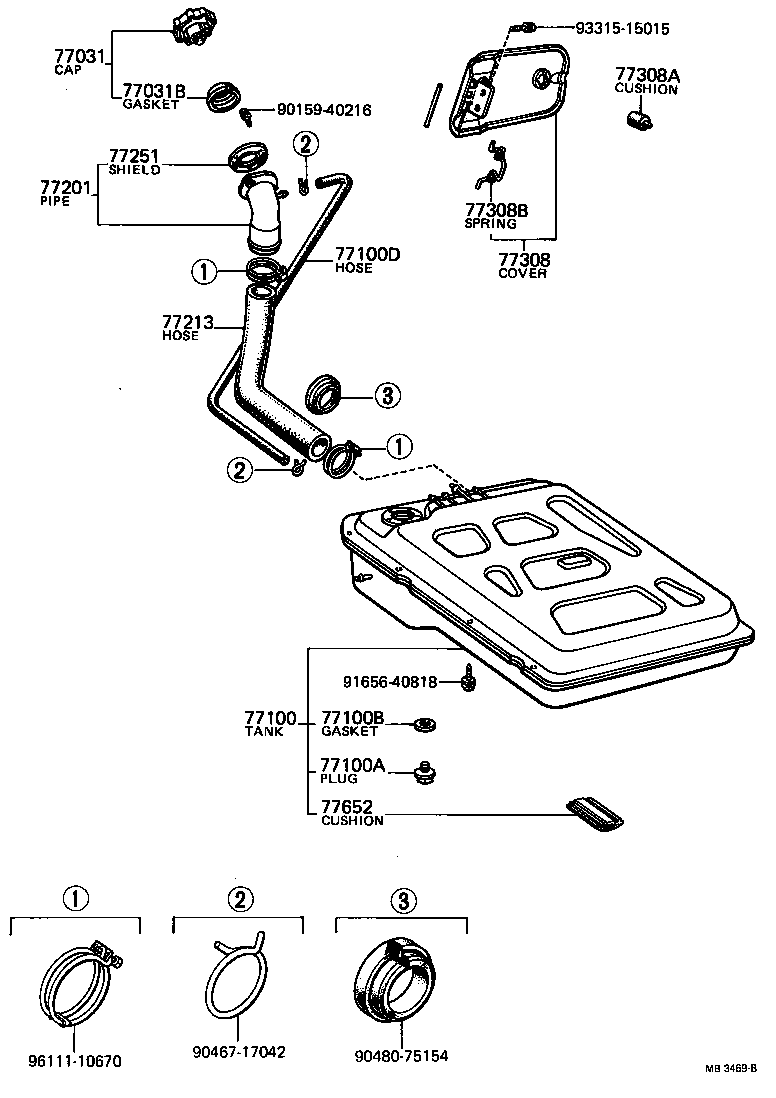

(7205-7809)V

Click highlighted areas on diagram

Part #	Description	Period	Qty
77031 - CAP ASSY, FUEL TANK
77310-12010	KP3#	04/1969 - 06/1969	1
77310-10030	KP3#	06/1971 - 12/1971	1
77310-12011	KP3#	06/1969 - 06/1971	1
77310-10030	KP36	01/1972 - 05/1972	1
77031B - GASKET (FOR FUEL TANK CAP)
77316-10010	KP3#	06/1971 - 12/1971	1
77316-12010	KP3#	04/1969 - 06/1969	1
77316-12040	KP36	06/1973 - 11/1975	1
77316-12040	KP3#	04/1973 - 06/1973	1
77316-10010	KP36	01/1972 - 05/1972	1
77316-12040	KP36	05/1972 - 04/1973	1
77316-12012	KP3#	06/1969 - 06/1971	1
77100 - TANK ASSY, FUEL
77100-11062	KP36..V	04/1973 - 09/1978	1
77100-11060	KP36..V	04/1969 - 05/1972	1
77100-11061	KP36..V	05/1972 - 04/1973	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	KP3#	04/1969 - 08/1988	1
77100B - GASKET(FOR FUEL TANK)
90430-12038	KP3#	04/1969 - 05/1977	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-18878	KP36..V L=680	05/1972 - 10/1972	1
90446-09001	KP36..V L=575	04/1969 - 05/1972	1
90445-18878	KP36 L=680	10/1972 - 11/1975	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-11901	KP36	04/1969 - 09/1969	1
77201-11071	KP36	05/1972 - 10/1972	1
77201-11071	KP36..V	10/1972 - 09/1978	1
77201-11902	KP36	09/1969 - 05/1972	1
77213 - HOSE, FUEL TANK SUB INLET
77213-11041	KP36..V	09/1972 - 09/1978	1
77213-11040	KP36..V	04/1969 - 09/1972	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-12010	KP3#	04/1969 - 08/1988	1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77308-11020	KP36..V W/FUEL LOCK	04/1969 - 09/1978	1
77308-11010	KP36..V W/O FUEL LOCK	04/1969 - 11/1975	1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05040	KP3#	04/1969 - 12/1971	1
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
90508-16163	KP3#	04/1969 - 12/1971	1
77652 - CUSHION, FUEL TANK, NO.1
77651-13010	KP36..V	04/1969 - 09/1978	3
Common parts
90159-40216
90467-17042
90480-75154
91656-40818
93315-15015
96111-10670

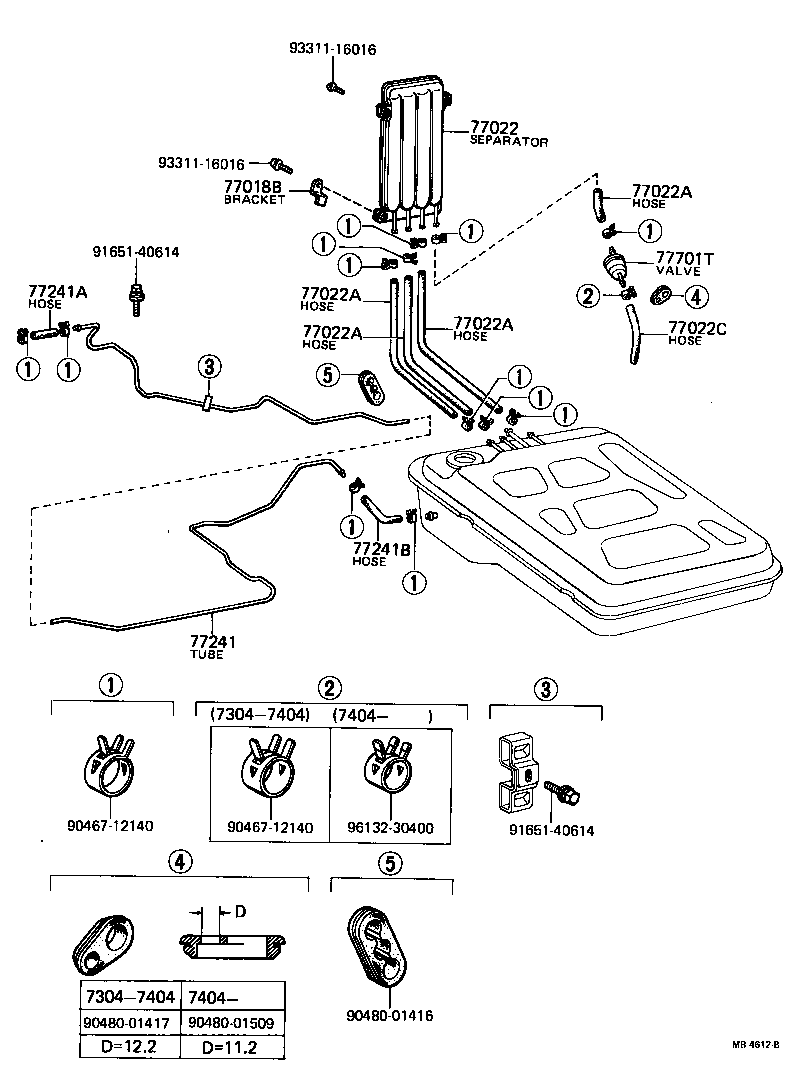

(7304-7809)V

Click highlighted areas on diagram

Part #	Description	Period	Qty
77018B - BRACKET, VAPOUR SEPARATOR
61785-11010	KP36..V	04/1969 - 05/1972	2
61785-11020	KP36..V	05/1972 - 09/1978	1
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77267-11020	KP36..V	05/1972 - 04/1973	1
77267-11021	KP36..V	04/1973 - 09/1978	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06055	KP36..V *H,L=550,L=550	04/1973 - 09/1978	3
95331-08055	KP36..V *H,L=550,L=550	05/1972 - 04/1973	3
95332-06008	KP36..V *H,L=80,L=80	11/1977 - 09/1978	1
95331-08008	KP36..V *H,L=80,L=80	05/1972 - 04/1973	1
95331-06008	KP36..V *H,L=80,L=80	04/1973 - 11/1977	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06055	KP36..V *H,L=550,L=550	04/1973 - 09/1978	3
95331-08055	KP36..V *H,L=550,L=550	05/1972 - 04/1973	3
95332-06008	KP36..V *H,L=80,L=80	11/1977 - 09/1978	1
95331-08008	KP36..V *H,L=80,L=80	05/1972 - 04/1973	1
95331-06008	KP36..V *H,L=80,L=80	04/1973 - 11/1977	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06055	KP36..V *H,L=550,L=550	04/1973 - 09/1978	3
95331-08055	KP36..V *H,L=550,L=550	05/1972 - 04/1973	3
95332-06008	KP36..V *H,L=80,L=80	11/1977 - 09/1978	1
95331-08008	KP36..V *H,L=80,L=80	05/1972 - 04/1973	1
95331-06008	KP36..V *H,L=80,L=80	04/1973 - 11/1977	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06055	KP36..V *H,L=550,L=550	04/1973 - 09/1978	3
95331-08055	KP36..V *H,L=550,L=550	05/1972 - 04/1973	3
95332-06008	KP36..V *H,L=80,L=80	11/1977 - 09/1978	1
95331-08008	KP36..V *H,L=80,L=80	05/1972 - 04/1973	1
95331-06008	KP36..V *H,L=80,L=80	04/1973 - 11/1977	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
90446-09207	KP36 L=850	04/1969 - 03/1970	1
90446-09207	KP36..V L=850	03/1970 - 03/1972	1
95332-04026	KP36..V L=260	04/1974 - 09/1978	1
95331-08026	KP36..V L=260	05/1972 - 04/1973	1
95331-06026	KP36..V L=260	04/1973 - 04/1974	1
95331-08085	KP36..V L=850	03/1972 - 05/1972	1
77241 - TUBE, FUEL MAIN, NO.1
77241-11064	KP36..V	10/1973 - 06/1975	1
77241-11061	KP36..V	04/1970 - 10/1971	1
77241-11064	KP36..V..RHD	06/1975 - 11/1975	1
77241-11060	KP36..V	04/1969 - 04/1970	1
77241-11063	KP36..V	04/1973 - 10/1973	1
77241-11062	KP36..V	10/1971 - 04/1973	1
77251-11080	KP36..V	11/1975 - 09/1978	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06007	KP3# *H,L=70,L=70	04/1973 - 11/1975	1
95331-06008	KP3# *H,L=80,L=80	11/1975 - 02/1976	1
90445-12695	KP3# L=80	11/1970 - 12/1971	1
90445-12414	KP3# L=80	04/1969 - 11/1970	1
95331-06009	KP3# *H,L=90,L=90	02/1976 - 06/1977	1
95331-08008	KP3# *H,L=80,L=80	01/1972 - 04/1973	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-12181	KP36 L=90	04/1969 - 11/1969	1
90445-12678	KP36 L=90	11/1970 - 12/1971	1
95331-08009	KP36 *H,L=90,L=90	01/1972 - 04/1973	1
95332-06015	KP36..V *H,L=150,L=150	11/1977 - 09/1978	1
90445-12467	KP36 L=90	11/1969 - 11/1970	1
95331-06015	KP36..V *H,L=150,L=150	04/1973 - 11/1977	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10029	KP36	04/1974 - 01/1976	1
90917-10004	KP36	05/1972 - 06/1972	1
90917-10012	KP36	06/1972 - 04/1973	1
90917-10020	KP36	04/1973 - 04/1974	1
Common parts
90467-12140
90480-01416
90480-01417
90480-01509
91651-40614
93311-16016
96132-30400

KP36V- (1969)

(6904-7205)V

(6904-7205)V

(7205-7304)V

(7205-7809)V

(7304-7809)V

Part Price Details
