KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7511)

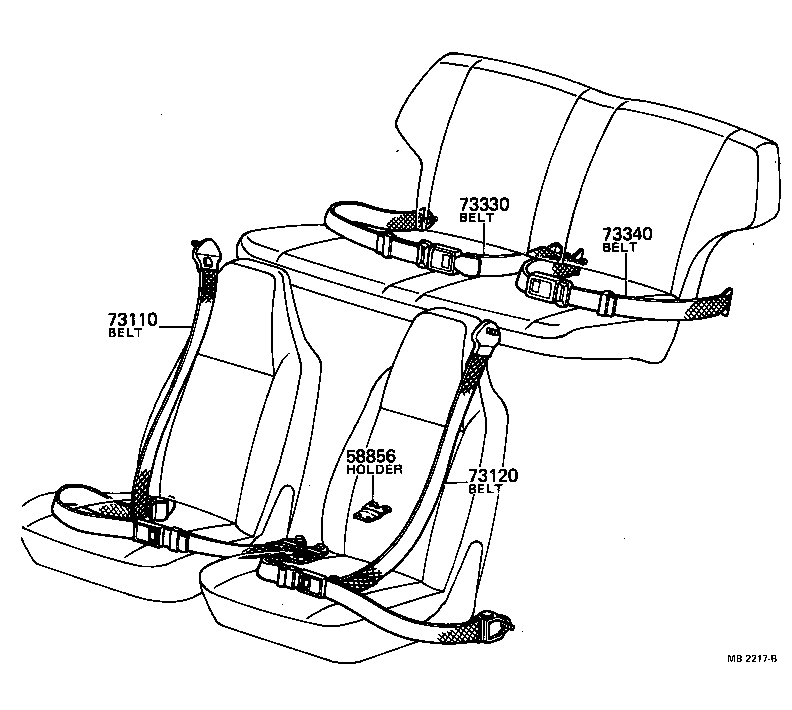

Click highlighted areas on diagram

diagram 58856 73110 73120 73330 73340
Part # Description Qty Price
58856 - HOLDER, SEAT BELT BUCKLE
58853-10010

KP3#

 1
73110 - BELT ASSY, FRONT SEAT 3 POINT TYPE, RH
71870-1002001

KP3#..SED,V

BLACK,BLACK

 1
71870-1002201

KP3#..SED,V

BLACK,BLACK

 1
71870-1002002

KP3#..SED,V

RED,RED/MAROON

 1
71870-1002301

KP3#..SED,V

BLACK,BLACK

 1
71870-1002101

KP3#..SED,V

BLACK,BLACK

 1
73120 - BELT ASSY, FRONT SEAT 3 POINT TYPE, LH
71870-1002101

KP3#..SED,V

BLACK,BLACK

 1
71870-1002201

KP3#..SED,V

BLACK,BLACK

 1
71870-1002001

KP3#..SED,V

BLACK,BLACK

 1
71870-1002002

KP3#..SED,V

RED,RED/MAROON

 1
71870-1002301

KP3#..SED,V

BLACK,BLACK

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
71910-1101001

KP36..V

BLACK,BLACK

 1
71930-11010

KP36..V

 1
71910-1101002

KP36..V

RED,RED/MAROON

 1
71910-1101101

KP36..V

BLACK,BLACK,TRIM2#

 1
71930-1101001

KP36..V

BLACK,BLACK,TRIM2#

 1
71930-1101006

KP36..V

LIGHT BROWN,BROWN,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
71910-1101002

KP36..V

RED,RED/MAROON

 1
71910-1101001

KP36..V

BLACK,BLACK

 1
71910-1101101

KP36..V

BLACK,BLACK,TRIM2#

 1
71930-1101006

KP36..V

LIGHT BROWN,BROWN,TRIM4#

 1
71930-1101001

KP36..V

BLACK,BLACK,TRIM2#

 1
71930-11010

KP36..V

 1

(7511- )

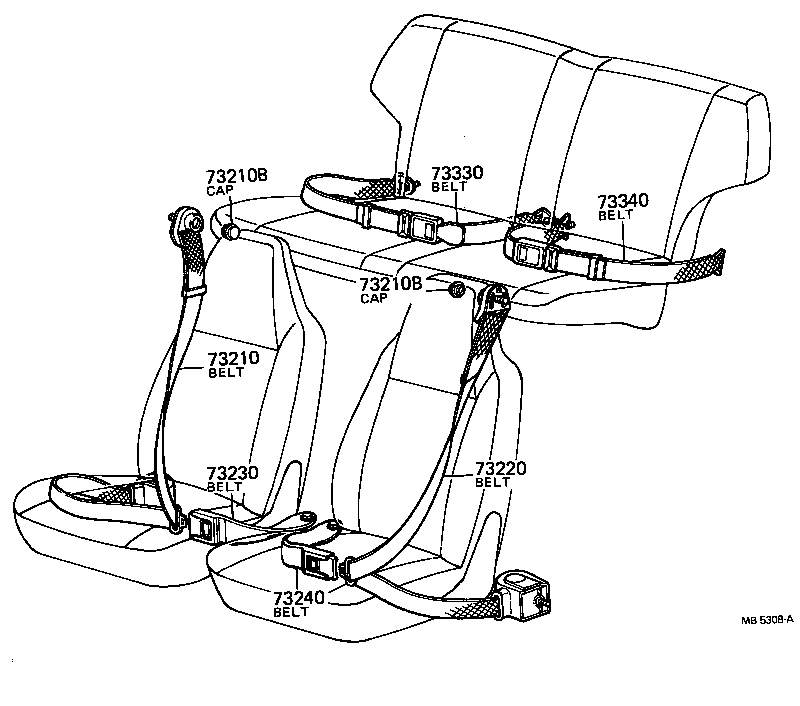

Click highlighted areas on diagram

diagram 73210 73210B 73210B 73220 73230 73240 73330 73340
Part # Description Qty Price
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201001

KP3#

BLACK,BLACK,TRIM2#,4#

 2
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201001

KP3#

BLACK,BLACK,TRIM2#,4#

 2
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-10010

KP3#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-10010

KP3#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
71910-1101001

KP36..V

BLACK,BLACK

 1
71930-11010

KP36..V

 1
71910-1101002

KP36..V

RED,RED/MAROON

 1
71910-1101101

KP36..V

BLACK,BLACK,TRIM2#

 1
71930-1101001

KP36..V

BLACK,BLACK,TRIM2#

 1
71930-1101006

KP36..V

LIGHT BROWN,BROWN,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
71910-1101002

KP36..V

RED,RED/MAROON

 1
71910-1101001

KP36..V

BLACK,BLACK

 1
71910-1101101

KP36..V

BLACK,BLACK,TRIM2#

 1
71930-1101006

KP36..V

LIGHT BROWN,BROWN,TRIM4#

 1
71930-1101001

KP36..V

BLACK,BLACK,TRIM2#

 1
71930-11010

KP36..V

 1
