KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )KP36,37

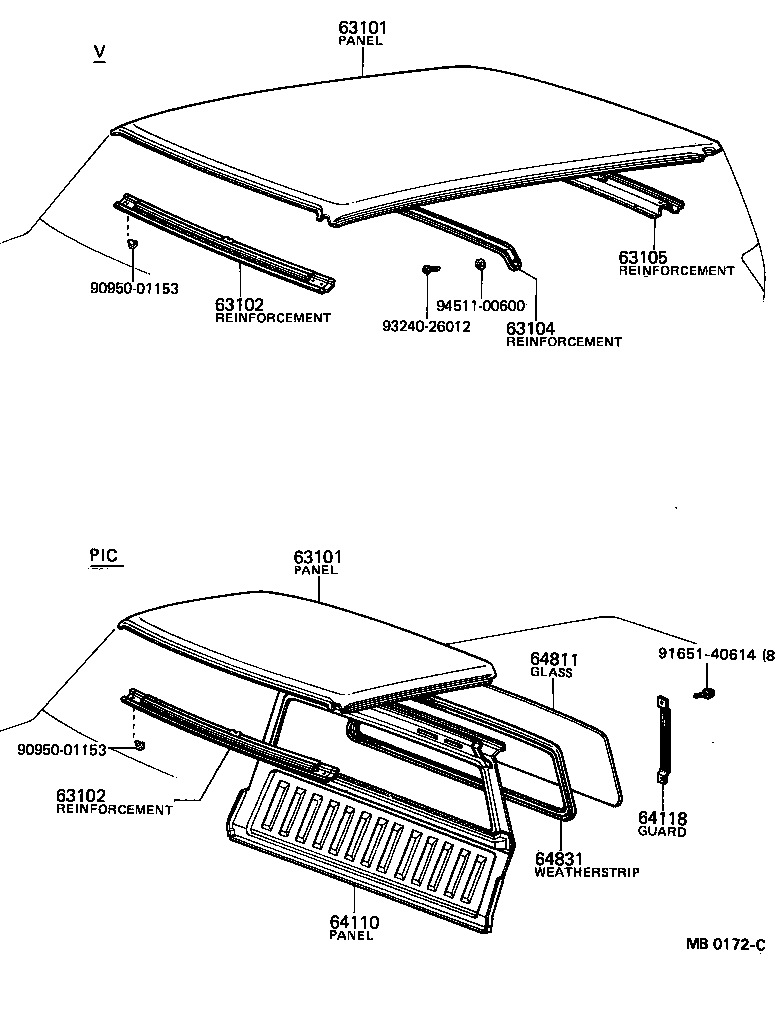

Click highlighted areas on diagram

diagram 63101 63101 63102 63102 63104 63105 64110 64118 64811 64831 9095001153 9095001153 9165140614 9324026012 9451100600
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-11040

KP36..V

 1
63101 - PANEL SUB-ASSY, ROOF
63111-11040

KP36..V

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-10040

KP3#

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-10040

KP3#

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63143-11010

KP36..V

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63133-11010

KP36..V

 1
Common parts
90950-01153
91651-40614
93240-26012
94511-00600
