KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7809)V

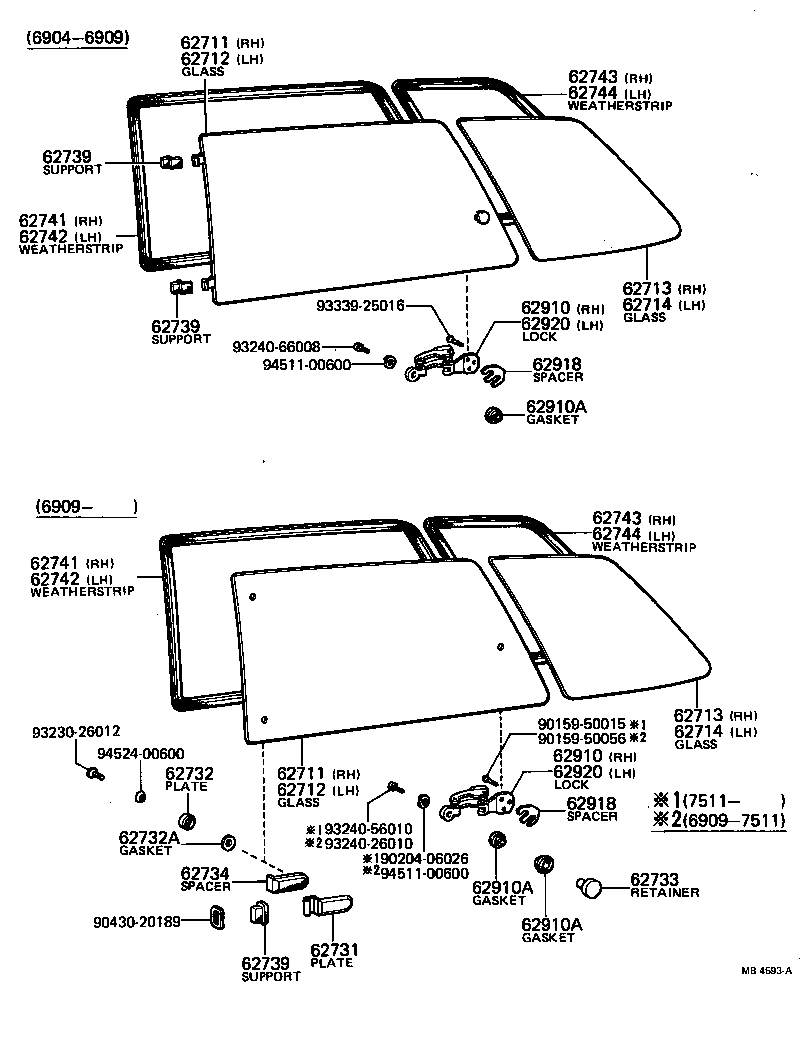

Click highlighted areas on diagram

diagram 62711 62711 62712 62712 62713 62713 62714 62714 62731 62732 62732A 62733 62734 62739 62739 62739 62741 62741 62742 62742 62743 62743 62744 62744 62910 62910 62910A 62910A 62910A 62918 62918 62920 62920 9015950015 9015950056 9020406026 9043020189 9323026012 9324026010 9324056010 9324066008 9333925016 9451100600 9451100600 9452400600
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62071-11010

KP36

*TEM,T=4.0

 1
62711-11021

KP36..V

*TEM,T=4.0

 1
62711 - GLASS, QUARTER WINDOW, RH
62071-11010

KP36

*TEM,T=4.0

 1
62711-11021

KP36..V

*TEM,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62072-11010

KP36

*TEM,T=4.0

 1
62712-11021

KP36..V

*TEM,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62072-11010

KP36

*TEM,T=4.0

 1
62712-11021

KP36..V

*TEM,T=4.0

 1
62713 - GLASS, QUARTER WINDOW, REAR RH
62713-11020

KP36..V

*TEM,T=4.0

 1
62713 - GLASS, QUARTER WINDOW, REAR RH
62713-11020

KP36..V

*TEM,T=4.0

 1
62714 - GLASS, QUARTER WINDOW, REAR LH
62714-11020

KP36..V

*TEM,T=4.0

 1
62714 - GLASS, QUARTER WINDOW, REAR LH
62714-11020

KP36..V

*TEM,T=4.0

 1
62731 - PLATE, QUARTER OR SIDE WINDOW HINGE
62731-10031

KP36..V

 4
62731-10031

KP3#..SED,V

 4
62732 - PLATE, QUARTER OR SIDE WINDOW HINGE FINISH
62732-10030

KP36..V

 4
62732-10030

KP3#..SED,V

 4
62732A - GASKET(FOR QUARTER WINDOW HINGE FINISH PLATE)
90430-06199

KP3#..SED,V

 4
90430-06199

KP36..V

 4
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62733-12010

KP30,36..SED,V

 6
62734 - SPACER, QUARTER WINDOW HINGE
62734-10030

KP36..V

 4
62734-10030

KP3#..SED,V

 4
62739 - SUPPORT, QUARTER WINDOW HINGE
62739-10021

KP3#..SED,V

 4
62739-10021

KP36..V

 4
62739-10020

KP3#

 4
62739 - SUPPORT, QUARTER WINDOW HINGE
62739-10021

KP3#..SED,V

 4
62739-10021

KP36..V

 4
62739-10020

KP3#

 4
62739 - SUPPORT, QUARTER WINDOW HINGE
62739-10021

KP3#..SED,V

 4
62739-10021

KP36..V

 4
62739-10020

KP3#

 4
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-11020

KP36..V

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-11020

KP36..V

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-11020

KP36..V

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-11020

KP36..V

 1
62743 - WEATHERSTRIP, QUARTER WINDOW, REAR RH
62743-11020

KP36..V

 1
62743 - WEATHERSTRIP, QUARTER WINDOW, REAR RH
62743-11020

KP36..V

 1
62744 - WEATHERSTRIP, QUARTER WINDOW, REAR LH
62744-11010

KP36..V

 1
62744 - WEATHERSTRIP, QUARTER WINDOW, REAR LH
62744-11010

KP36..V

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-11010

KP36

 1
62910-11011

KP36..V

 1
62910-11013

KP36..V

 1
62910-11012

KP36..V

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-11010

KP36

 1
62910-11011

KP36..V

 1
62910-11013

KP36..V

 1
62910-11012

KP36..V

 1
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62734-12010

KP30,36..SED,V

 4
90430-08180

KP3#

 2
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62734-12010

KP30,36..SED,V

 4
90430-08180

KP3#

 2
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62734-12010

KP30,36..SED,V

 4
90430-08180

KP3#

 2
62918 - SPACER, QUARTER WINDOW LOCK SUPPORT
62918-13010

KP36..V

 1
62918 - SPACER, QUARTER WINDOW LOCK SUPPORT
62918-13010

KP36..V

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62920-11012

KP36..V

 1
62920-11010

KP36

 1
62920-11011

KP36..V

 1
62920-11013

KP36..V

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62920-11012

KP36..V

 1
62920-11010

KP36

 1
62920-11011

KP36..V

 1
62920-11013

KP36..V

 1
Common parts
90159-50015
90159-50056
90204-06026
90430-20189
93230-26012
93240-26010
93240-56010
93240-66008
93339-25016
94511-00600
94524-00600
