KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

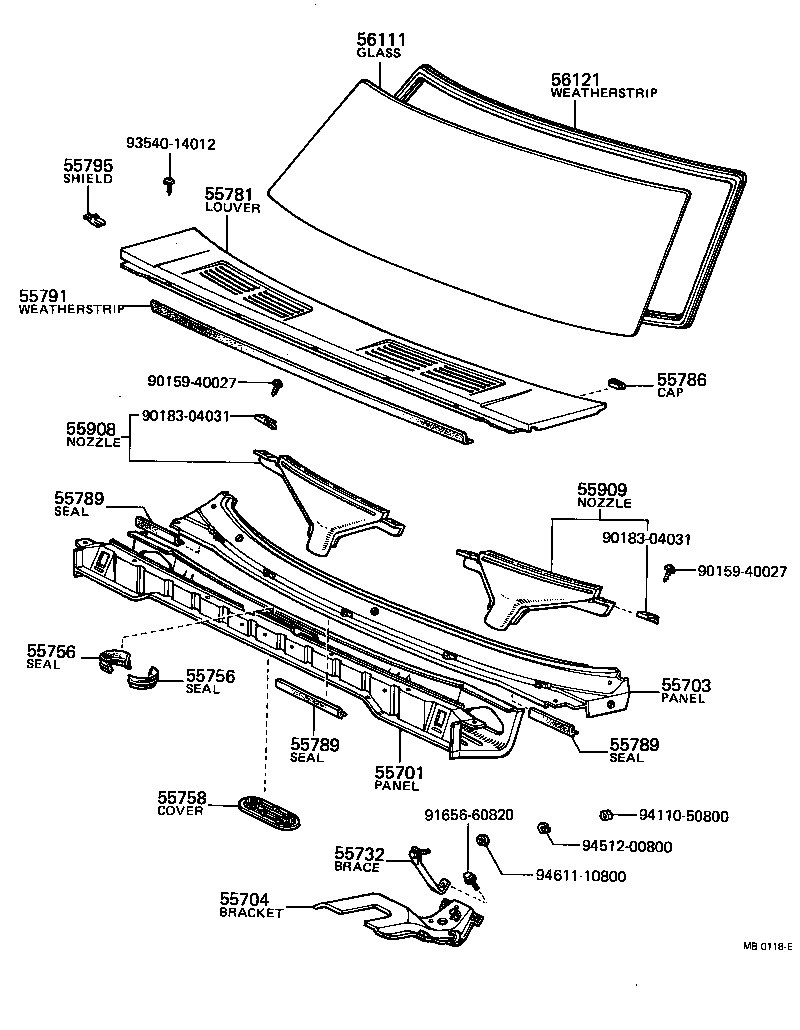

Click highlighted areas on diagram

diagram 55701 55703 55704 55732 55756 55756 55758 55781 55786 55789 55789 55789 55791 55795 55908 55909 56111 56121 9015940027 9015940027 9018304031 9018304031 9165660820 9354014812 9411050800 9451200800 9461110800
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55701-10031

KP3#..RHD

 1
55701-10030

KP3#..RHD

 1
55703 - PANEL SUB-ASSY, COWL TOP, REAR
55703-10010

KP3#..RHD

 1
55704 - BRACKET SUB-ASSY, STEERING COLUMN CLAMP
55704-10010

KP3#..RHD

 1
55704-10030

KP30,36..(SED,V)..RHD

W/COLLAPSIBLE STEERING

 1
55704-10011

KP3#..RHD

 1
55732 - BRACE, STEERING COLUMN BRACKET
55733-10010

KP30,36..(SED,V)..RHD

W/COLLAPSIBLE STEERING

 1
55756 - SEAL, HEATER AIR DUCT
55785-10010

KP3#

 2
55756 - SEAL, HEATER AIR DUCT
55785-10010

KP3#

 2
55758 - COVER, HEATER AIR DUCT
55759-10010

KP3#

 1
55781 - LOUVER, COWL VENTILATOR
55781-10010

KP3#

 1
55786 - CAP, COWL VENTILATOR LOUVER
55786-20020

KP3#

 5
55789 - SEAL, COWL TOP TO LOUVER
55789-10010

KP3#

SIDE

 2
55788-10010

KP3#

CTR

 1
55789 - SEAL, COWL TOP TO LOUVER
55789-10010

KP3#

SIDE

 2
55788-10010

KP3#

CTR

 1
55789 - SEAL, COWL TOP TO LOUVER
55789-10010

KP3#

SIDE

 2
55788-10010

KP3#

CTR

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
55791-10010

KP3#

 1
55795 - SHIELD, COWL TOP TO LOUVER, SIDE
55795-10010

KP3#

RH

 1
55796-10010

KP3#

LH

 1
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55908-10010

KP3#

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55909-10010

KP3#

 1
56111 - GLASS, WINDSHIELD
56111-10070

KP3#..SED,V

*LAM,T=6.6,*LAM,T=6.6

 1
56111-10060

KP30,36

*TZT,T=5.0,*TZT,T=5.0

 1
56111-10050

KP30,36

*ZT,T=5.0,*ZT,T=5.0

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-10050

KP3#

W/O MOULDING

 1
56121-10060

KP3#

W/MOULDING

 1
Common parts
90159-40027
90183-04031
91656-60820
93540-14812
94110-50800
94512-00800
94611-10800
