KP36V- (1969)
Toyota Toyota1000
Production
Apr 1969
-
Sep 1978
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6904- )

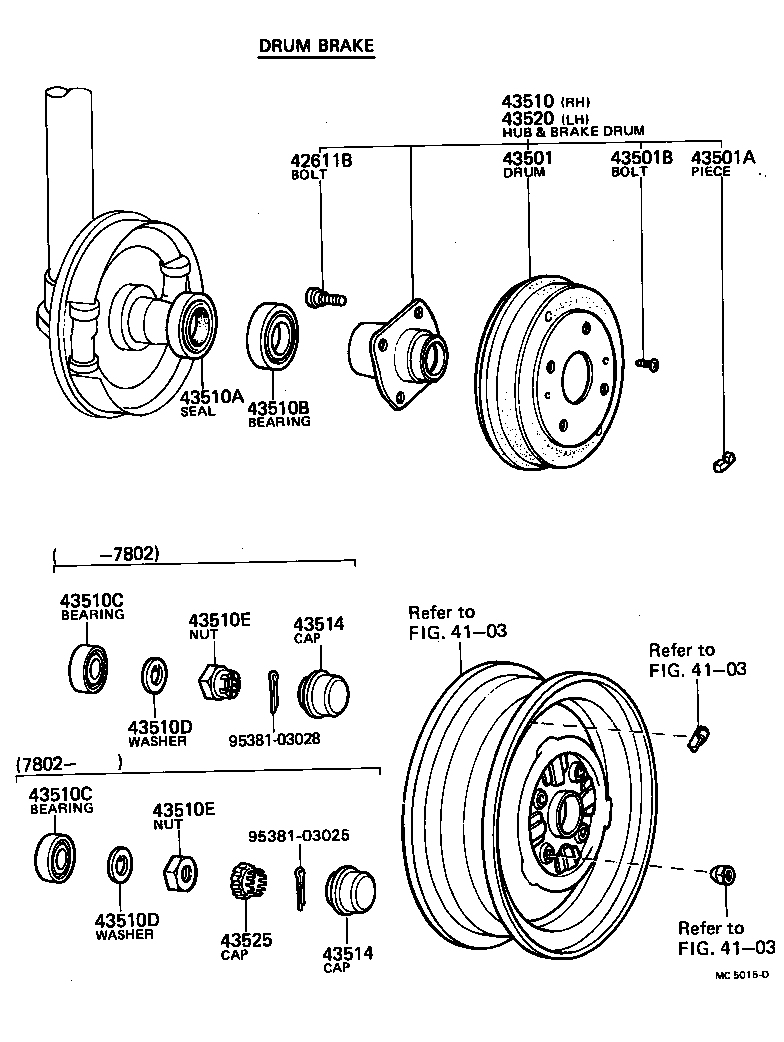

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02036 |
KP30,36 *12-1.5PX33-20.5,DISC BRAKE |
8 | ||
| 90942-02021 |
KP3# *12-1.5PX38-24 |
8 | ||
| 90942-02032 |
KP3# *12-1.5PX38-25.5 |
8 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-12011 |
KP3# |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01098 |
KP3# 24.5G,24.5G |
1 | ||
| 90937-01099 |
KP3# 32.5G,32.5G |
1 | ||
| 90937-01100 |
KP3# 40.5G,40.5G |
1 | ||
| 90937-01096 |
KP3# 8.5G,8.5G |
1 | ||
| 90937-01097 |
KP3# 16.5G,16.5G |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10007 |
KP3# |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-12011 |
KP3# |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90312-40011 |
KP3# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-26027 |
KP3# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-17017 |
KP3# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-17017 |
KP3# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-16010 |
KP3# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-16010 |
KP3# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-16025 |
KP3# |
2 | ||
| 90171-16033 |
KP3# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-16025 |
KP3# |
2 | ||
| 90171-16033 |
KP3# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-12010 |
KP3# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-12010 |
KP3# |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-12011 |
KP3# |
1 | ||
| Common parts | ||||
| 95381-03025 | ||||
| 95381-03028 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(6904-7112)SED,V ; (7201-7507)KP30 ; (7507-7512); (7512-7809)SED,V

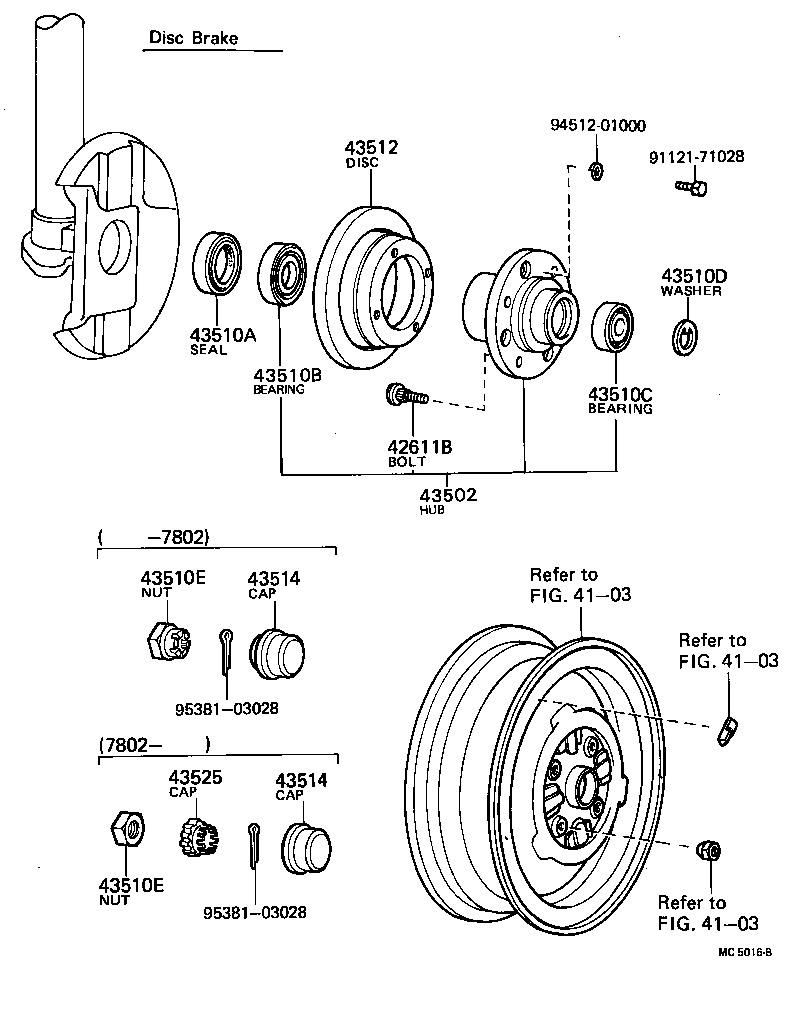

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02036 |
KP30,36 *12-1.5PX33-20.5,DISC BRAKE |
8 | ||
| 90942-02021 |
KP3# *12-1.5PX38-24 |
8 | ||
| 90942-02032 |
KP3# *12-1.5PX38-25.5 |
8 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-19025 |
KP30,36..SED,V DISC BRAKE |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90312-40011 |
KP3# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-26027 |
KP3# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-17017 |
KP3# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-16010 |
KP3# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-16025 |
KP3# |
2 | ||
| 90171-16033 |
KP3# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-16025 |
KP3# |
2 | ||
| 90171-16033 |
KP3# |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-12021 |
KP3#..SED,V |
2 | ||
| 43512-10030 |
KP30,36..SED,V DISC BRAKE |
2 | ||
| 43512-12022 |
KP3#..SED,V |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-12010 |
KP3# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-12010 |
KP3# |
2 | ||
| Common parts | ||||
| 91121-71028 | ||||
| 94512-01000 | ||||
| 95381-03028 | ||||
| Linked diagrams | ||||
| 4103 | ||||
