KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7404)

Click highlighted areas on diagram

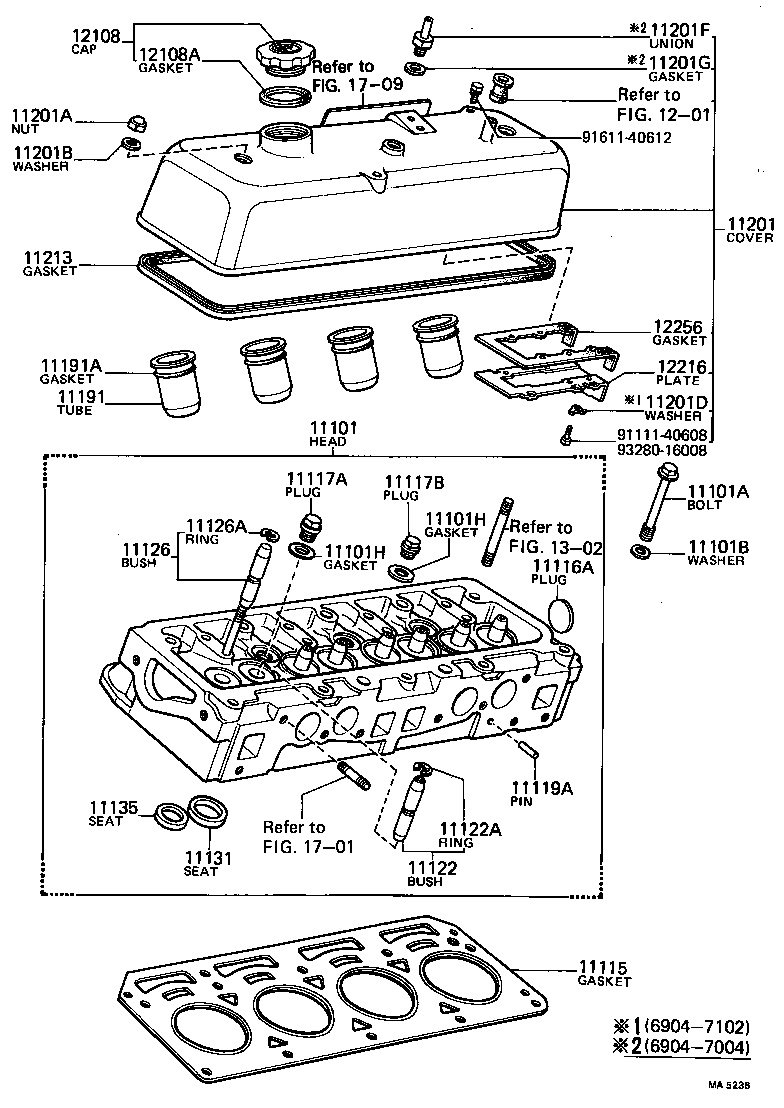

diagram 11101 11101A 11101B 11101H 11101H 11115 11116A 11117A 11117B 11119A 11122 11122A 11126 11126A 11131 11135 11191 11191A 11201 11201A 11201B 11201D 11201F 11201G 11213 1201 12108 12108A 12216 12256 1302 1701 1709 9111140608 9161140612 9328016008
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19018

2K..KP3#

 1
11101-19017

2K..KP3#

 1
11101-19016

2K..KP3#

 1
11101-19035

2K..KP3#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02020

2K,3KH..KP3#

*10-1.25PX100-20

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2K..KP3#

 10
90201-10246

2K..KP3#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-18152

2K,3KH..KP3#

OD=25,ID=18

 3
90430-15151

2K,3KH..KP3#

OD=21,ID=15

 2
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-18152

2K,3KH..KP3#

OD=25,ID=18

 3
90430-15151

2K,3KH..KP3#

OD=21,ID=15

 2
11115 - GASKET, CYLINDER HEAD
11115-12011

2K..KP3#

 1
11115-12010

2K..KP3#

 1
11116A - PLUG, TIGHT, NO.1
90330-40035

2K..KP3#

OD=40

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-18063

2K,3KH..KP3#

L=11,OD=18,P=1.5

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-15045

2K,3KH..KP3#

L=11,15-1.5P

 2
11119A - PIN, STRAIGHT, NO.1
90250-08120

2K,3KH..KP3#

L=18,OD=8,L=18,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-22020

2K..KP3#

O/S 0.05,O/S 0.05

 4
11122-22020

2K..KP3#

STD,STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

2K,3KH..KP3#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-22020

2K..KP3#

STD,STD

 4
11127-22020

2K..KP3#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

2K,3KH..KP3#

 4
11131 - SEAT, INTAKE VALVE
11131-22010

2K..KP3#

STD

 4
11132-22010

2K..KP3#

O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11136-22010

2K..KP3#

O/S 0.03

 4
11135-22013

2K..KP3#

STD

 4
11136-22011

2K..KP3#

O/S 0.03

 4
11135-22012

2K..KP3#

STD

 4
11191 - TUBE, SPARK PLUG
11191-22010

2K,3KH..KP3#

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

2K,3KH..KP3#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-22010

2K..KP3#

W/O PCV

 1
11201-29105

2K..KP3#

W/PCV

 1
11201-24011

2K..KP3#

W/PCV

 1
11201-29107

2K..KP3#

W/PCV

 1
11201-29106

2K..KP3#

W/PCV

 1
11201-24010

2K..KP3#

W/PCV

 1
11201-29108

2K,3KH..KP3#

W/PCV

 1
11201-19015

2K,3KH..KP3#

W/PCV

 1
11201-22021

2K..KP3#

W/PCV

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
94171-10800

2K,3KH..KP3#

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08017

2K,3KH..KP3#

 2
11201D - WASHER, LOCK(FOR CYLINDER HEAD COVER)
90215-06014

2K..KP3#

 6
11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION)
90404-14126

2K..KP3#

 1
11201G - GASKET(FOR POSITIVE CRANKCASE VENTILATION)
90430-14145

2K..KP3#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-22010

2K,3KH..KP3#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-12903

2K..KP3#

 1
12181-31020

2K,3KH..KP3#

 1
12181-12902

2K..KP3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2K..KP3#

 1
12216 - PLATE, VENTILATION BAFFLE
12216-22010

2K,3KH..KP3#

 1
12256 - GASKET, VENTILATION BAFFLE
12256-22010

2K,3KH..KP3#

 1
Common parts
91111-40608
91611-40612
93280-16008
Linked diagrams
1201
1302
1701
1709
