8111 - REAR COMBINATION LAMP

KP36LV- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978

Engine 2K

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

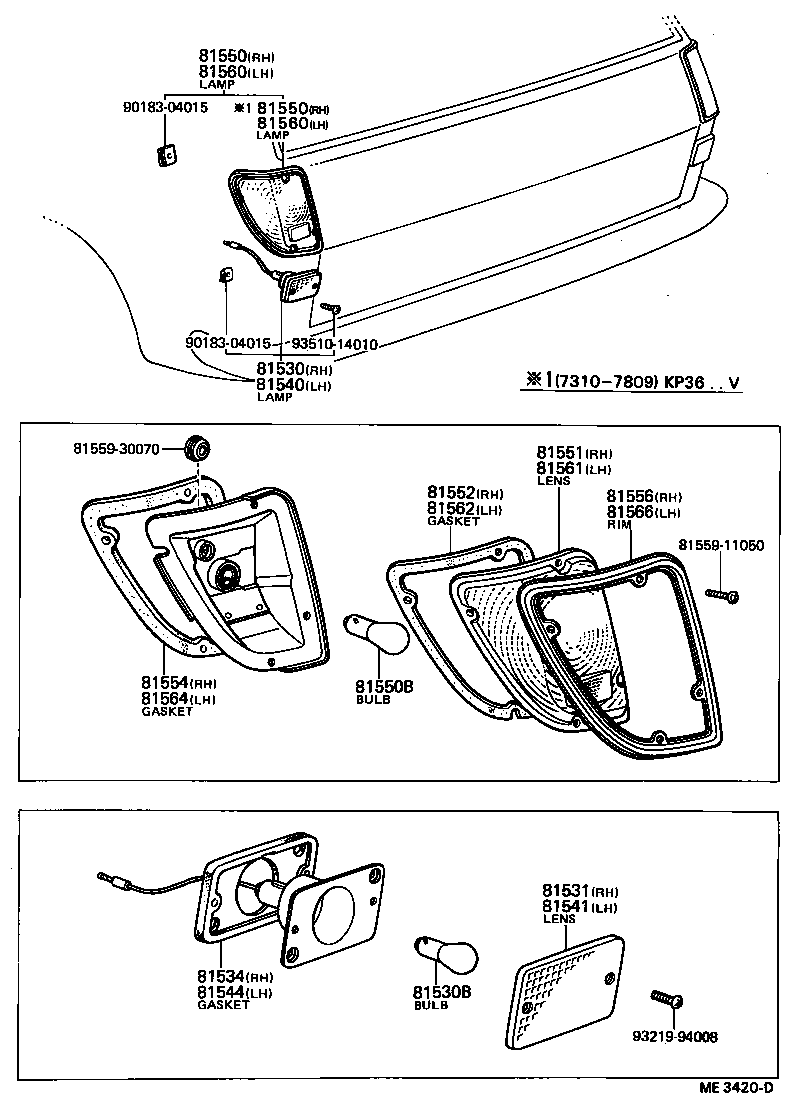

(6904-7112)V

Click highlighted areas on diagram

Part #	Description	Period	Qty
81530 - LAMP ASSY, REAR TURN SIGNAL, RH
81530-19015	KP36..V TURN SIGNAL & BACK UP LAMP	04/1969 - 12/1971	1
81530B - BULB, REAR TURN SIGNAL LAMP
99132-11230	KP36..V 12V 23W	04/1969 - 12/1971	2
81531 - LENS, REAR TURN SIGNAL LAMP, RH
81531-11010	KP36..V AMBER	04/1969 - 12/1971	1
81534 - GASKET, REAR TURN SIGNAL LAMP BODY, RH
81672-11010	KP36..V	04/1969 - 12/1971	1
81540 - LAMP ASSY, REAR TURN SIGNAL, LH
81540-19015	KP36..V TURN SIGNAL & BACK UP LAMP	04/1969 - 12/1971	1
81541 - LENS, REAR TURN SIGNAL LAMP, LH
81531-11010	KP36..V AMBER	04/1969 - 12/1971	1
81544 - GASKET, REAR TURN SIGNAL LAMP BODY, LH
81682-11010	KP36..V	04/1969 - 12/1971	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-19165	KP36..V RED	04/1969 - 12/1971	1
81550-19565	KP36..V AMBER-RED	01/1972 - 10/1973	1
81550-11062	KP36..V AMBER-RED	10/1973 - 09/1978	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-19165	KP36..V RED	04/1969 - 12/1971	1
81550-19565	KP36..V AMBER-RED	01/1972 - 10/1973	1
81550-11062	KP36..V AMBER-RED	10/1973 - 09/1978	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230	KP3# 12V 23W,12V 23W	04/1969 - 12/1971	2
99132-11210	KP30,36..SED,V 12V 21W,12V 21W	01/1972 - 09/1978	4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-11050	KP36..V RED	04/1969 - 12/1971	1
81551-11051	KP36..V AMBER-RED	01/1972 - 09/1978	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-11050	KP36..V	04/1969 - 09/1978	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-11050	KP36..V	04/1969 - 09/1978	1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-11050	KP36..V	04/1969 - 09/1978	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19155	KP36..V RED	04/1969 - 12/1971	1
81560-19545	KP36..V AMBER-RED	01/1972 - 10/1973	1
81560-11042	KP36..V AMBER-RED	10/1973 - 09/1978	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19155	KP36..V RED	04/1969 - 12/1971	1
81560-19545	KP36..V AMBER-RED	01/1972 - 10/1973	1
81560-11042	KP36..V AMBER-RED	10/1973 - 09/1978	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-11030	KP36..V RED	04/1969 - 12/1971	1
81561-11031	KP36..V AMBER-RED	01/1972 - 09/1978	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-11050	KP36..V	04/1969 - 09/1978	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-11050	KP36..V	04/1969 - 09/1978	1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-11030	KP36..V	04/1969 - 09/1978	1
Common parts
81559-11050
81559-30070
90183-04015
93219-94008
93510-14010

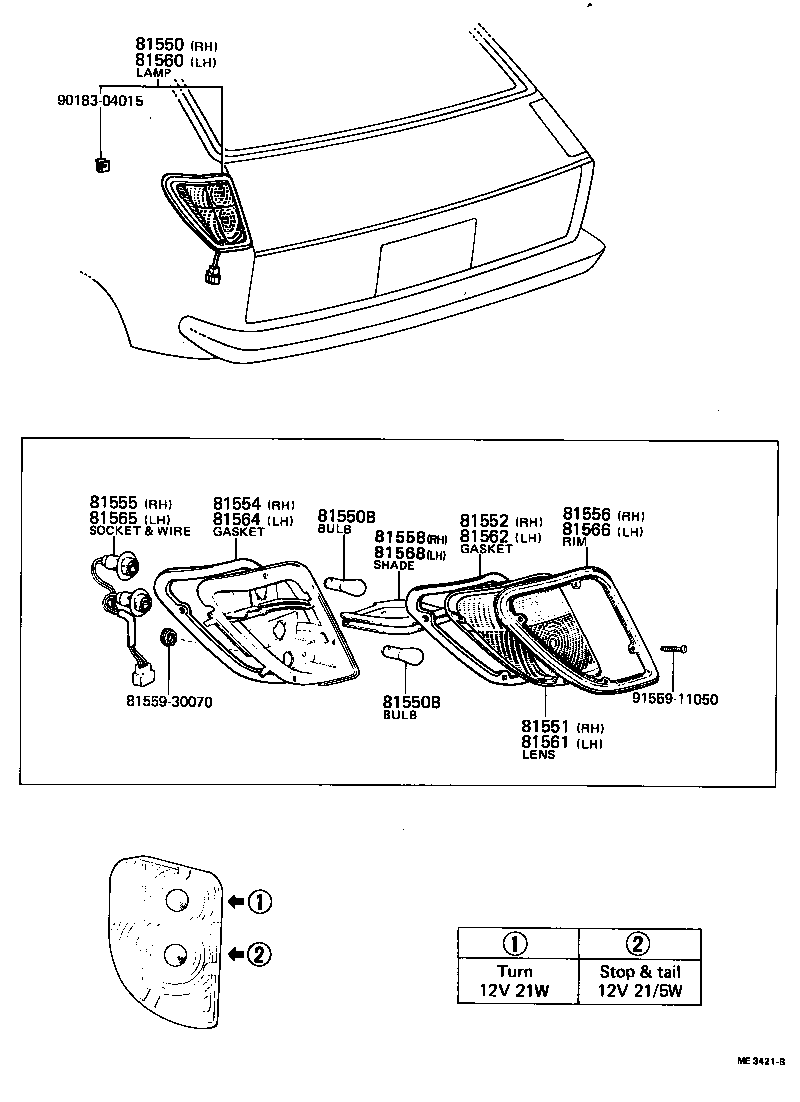

(7201-7809)V

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-19165	KP36..V RED	04/1969 - 12/1971	1
81550-19565	KP36..V AMBER-RED	01/1972 - 10/1973	1
81550-11062	KP36..V AMBER-RED	10/1973 - 09/1978	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230	KP3# 12V 23W,12V 23W	04/1969 - 12/1971	2
99132-11210	KP30,36..SED,V 12V 21W,12V 21W	01/1972 - 09/1978	4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230	KP3# 12V 23W,12V 23W	04/1969 - 12/1971	2
99132-11210	KP30,36..SED,V 12V 21W,12V 21W	01/1972 - 09/1978	4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-11050	KP36..V RED	04/1969 - 12/1971	1
81551-11051	KP36..V AMBER-RED	01/1972 - 09/1978	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-11050	KP36..V	04/1969 - 09/1978	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-11050	KP36..V	04/1969 - 09/1978	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-11052	KP36..V	10/1973 - 09/1978	1
81555-11061	KP36..V	01/1972 - 10/1973	1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-11050	KP36..V	04/1969 - 09/1978	1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-11051	KP36..V	01/1972 - 09/1978	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19155	KP36..V RED	04/1969 - 12/1971	1
81560-19545	KP36..V AMBER-RED	01/1972 - 10/1973	1
81560-11042	KP36..V AMBER-RED	10/1973 - 09/1978	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-11030	KP36..V RED	04/1969 - 12/1971	1
81561-11031	KP36..V AMBER-RED	01/1972 - 09/1978	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-11050	KP36..V	04/1969 - 09/1978	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-11050	KP36..V	04/1969 - 09/1978	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-10052	KP36..V	10/1973 - 09/1978	1
81555-11061	KP36..V	01/1972 - 10/1973	1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-11030	KP36..V	04/1969 - 09/1978	1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81567-11031	KP36..V	01/1972 - 09/1978	1
Common parts
81559-30070
90183-04015
91559-11050
