KP36LV- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

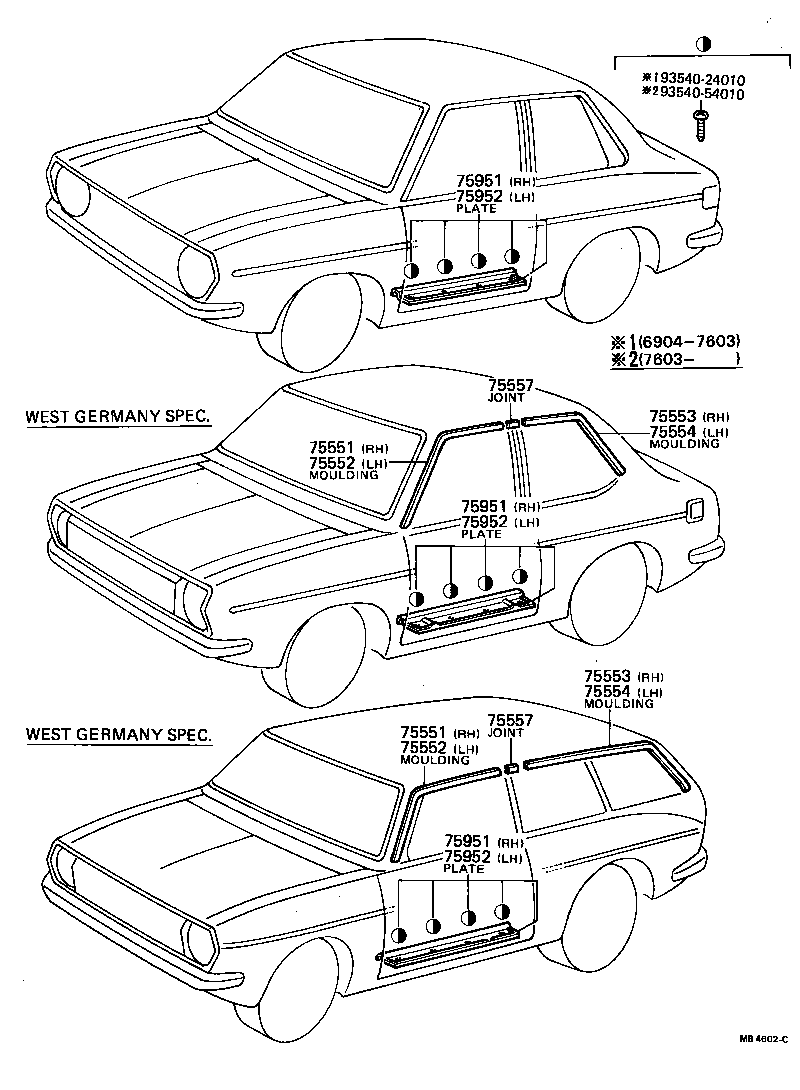

Click highlighted areas on diagram

diagram 75551 75551 75552 75552 75553 75553 75554 75554 75557 75557 75951 75951 75951 75952 75952 75952 9354024010 9354054010
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-10020

KP30,36..(SED,V)..LHD

WEST GERMANY SPEC

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-10020

KP30,36..(SED,V)..LHD

WEST GERMANY SPEC

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-10020

KP30,36..(SED,V)..LHD

WEST GERMANY SPEC

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-10020

KP30,36..(SED,V)..LHD

WEST GERMANY SPEC

 1
75553 - MOULDING, ROOF DRIP SIDE FINISH, RH
75553-11010

KP36..V..LHD

WEST GERMANY SPEC

 1
75553 - MOULDING, ROOF DRIP SIDE FINISH, RH
75553-11010

KP36..V..LHD

WEST GERMANY SPEC

 1
75554 - MOULDING, ROOF DRIP SIDE FINISH, LH
75554-11010

KP36..V..LHD

WEST GERMANY SPEC

 1
75554 - MOULDING, ROOF DRIP SIDE FINISH, LH
75554-11010

KP36..V..LHD

WEST GERMANY SPEC

 1
75557 - JOINT, ROOF DRIP SIDE FINISH MOULDING
75557-10010

KP30,36..(SED,V)..LHD

WEST GERMANY SPEC

 2
75557 - JOINT, ROOF DRIP SIDE FINISH MOULDING
75557-10010

KP30,36..(SED,V)..LHD

WEST GERMANY SPEC

 2
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
62611-1002101

KP3#..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002111

KP30,36..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002116

KP30,36..SED,V

LIGHT BROWN,BROWN,TRIM4#

 1
62611-1002106

KP3#..SED,V

BROWN,BROWN,TRIM4#

 1
62611-19035

KP3#..SED,V

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
62611-1002101

KP3#..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002111

KP30,36..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002116

KP30,36..SED,V

LIGHT BROWN,BROWN,TRIM4#

 1
62611-1002106

KP3#..SED,V

BROWN,BROWN,TRIM4#

 1
62611-19035

KP3#..SED,V

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
62611-1002101

KP3#..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002111

KP30,36..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002116

KP30,36..SED,V

LIGHT BROWN,BROWN,TRIM4#

 1
62611-1002106

KP3#..SED,V

BROWN,BROWN,TRIM4#

 1
62611-19035

KP3#..SED,V

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
62611-19035

KP3#..SED,V

 1
62611-1002111

KP30,36..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002106

KP3#..SED,V

BROWN,BROWN,TRIM4#

 1
62611-1002101

KP3#..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002116

KP30,36..SED,V

LIGHT BROWN,BROWN,TRIM4#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
62611-19035

KP3#..SED,V

 1
62611-1002111

KP30,36..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002106

KP3#..SED,V

BROWN,BROWN,TRIM4#

 1
62611-1002101

KP3#..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002116

KP30,36..SED,V

LIGHT BROWN,BROWN,TRIM4#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
62611-19035

KP3#..SED,V

 1
62611-1002111

KP30,36..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002106

KP3#..SED,V

BROWN,BROWN,TRIM4#

 1
62611-1002101

KP3#..SED,V

BLACK,BLACK,TRIM2#

 1
62611-1002116

KP30,36..SED,V

LIGHT BROWN,BROWN,TRIM4#

 1
Common parts
93540-24010
93540-54010
