Toyota Toyota1000 KP36 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
EU
TOYOTA1000
KP36LV- (1969)
4804 - REAR SPRING & SHOCK ABSORBER

KP36LV- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978

Engine 2K

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

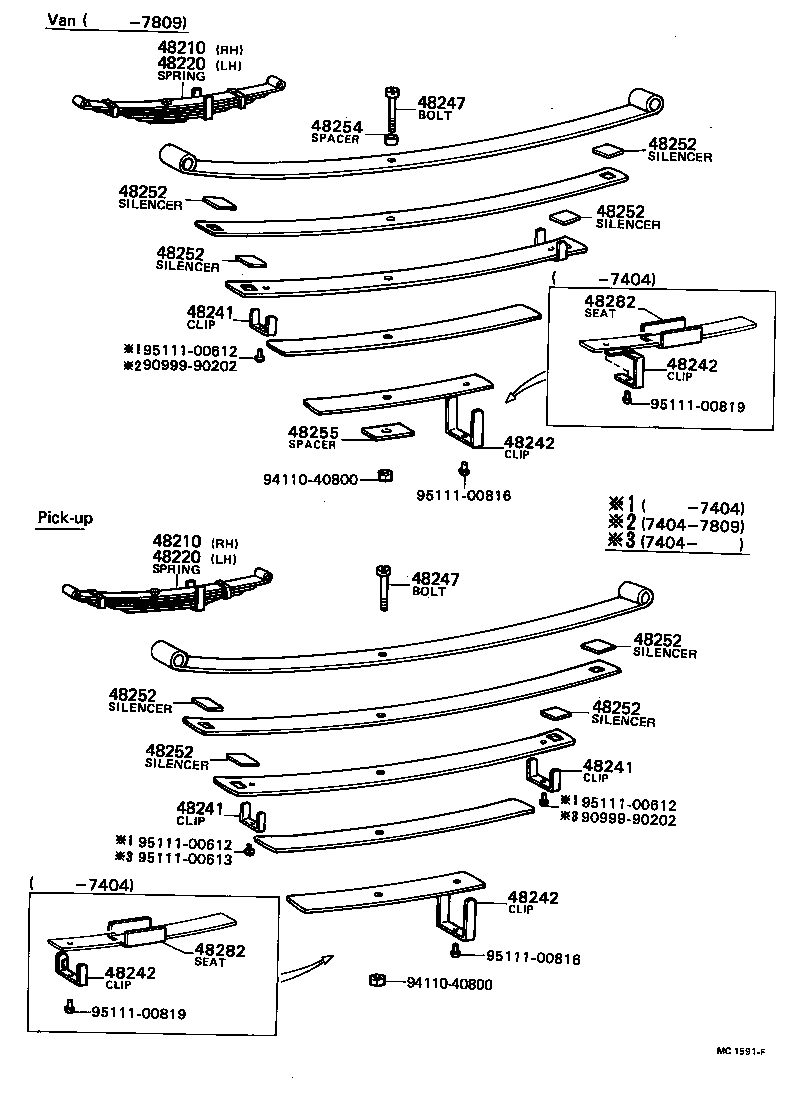

(7310- )KP36,37

Click highlighted areas on diagram

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-11050	KP36	04/1969 - 08/1969	1
48210-11051	KP36..V	08/1969 - 02/1971	1
48210-11052	KP36..V	03/1971 - 10/1973	1
48210-11053	KP36..V	10/1973 - 09/1978	1
48210 - SPRING ASSY, REAR RH
48210-11050	KP36	04/1969 - 08/1969	1
48210-11051	KP36..V	08/1969 - 02/1971	1
48210-11052	KP36..V	03/1971 - 10/1973	1
48210-11053	KP36..V	10/1973 - 09/1978	1
48220 - SPRING ASSY, REAR LH
48210-11051	KP36..V	08/1969 - 02/1971	1
48210-11052	KP36..V	03/1971 - 10/1973	1
48210-11050	KP36	04/1969 - 08/1969	1
48210-11053	KP36..V	10/1973 - 09/1978	1
48220 - SPRING ASSY, REAR LH
48210-11051	KP36..V	08/1969 - 02/1971	1
48210-11052	KP36..V	03/1971 - 10/1973	1
48210-11050	KP36	04/1969 - 08/1969	1
48210-11053	KP36..V	10/1973 - 09/1978	1
48241 - CLIP, REAR SPRING, NO.1
48241-11060	KP36	03/1971 - 12/1971	4
48241-11060	KP36	01/1972 - 04/1974	4
48241-11050	KP36..V	04/1969 - 02/1971	4
48241-10070	KP36..V	04/1974 - 09/1978	4
48241 - CLIP, REAR SPRING, NO.1
48241-11060	KP36	03/1971 - 12/1971	4
48241-11060	KP36	01/1972 - 04/1974	4
48241-11050	KP36..V	04/1969 - 02/1971	4
48241-10070	KP36..V	04/1974 - 09/1978	4
48241 - CLIP, REAR SPRING, NO.1
48241-11060	KP36	03/1971 - 12/1971	4
48241-11060	KP36	01/1972 - 04/1974	4
48241-11050	KP36..V	04/1969 - 02/1971	4
48241-10070	KP36..V	04/1974 - 09/1978	4
48242 - CLIP, REAR SPRING, NO.2
48241-11053	KP36..V	10/1973 - 04/1974	2
48242 - CLIP, REAR SPRING, NO.2
48241-11053	KP36..V	10/1973 - 04/1974	2
48242 - CLIP, REAR SPRING, NO.2
48241-11053	KP36..V	10/1973 - 04/1974	2
48242 - CLIP, REAR SPRING, NO.2
48241-11053	KP36..V	10/1973 - 04/1974	2
48247 - BOLT, REAR SPRING, CENTER
48247-11050	KP36..V	04/1969 - 09/1978	2
48247 - BOLT, REAR SPRING, CENTER
48247-11050	KP36..V	04/1969 - 09/1978	2
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48254 - SPACER, REAR SPRING LEAF
48254-11053	KP36..V	04/1974 - 09/1978	2
48255 - SPACER, REAR SPRING LEAF
48255-11053	KP36..V	04/1974 - 09/1978	2
48282 - SEAT, REAR HELPER SPRING
48282-11010	KP36	04/1969 - 04/1974	2
48282 - SEAT, REAR HELPER SPRING
48282-11010	KP36	04/1969 - 04/1974	2
Common parts
90999-90202
94110-40800
95111-00612
95111-00613
95111-00816
95111-00819

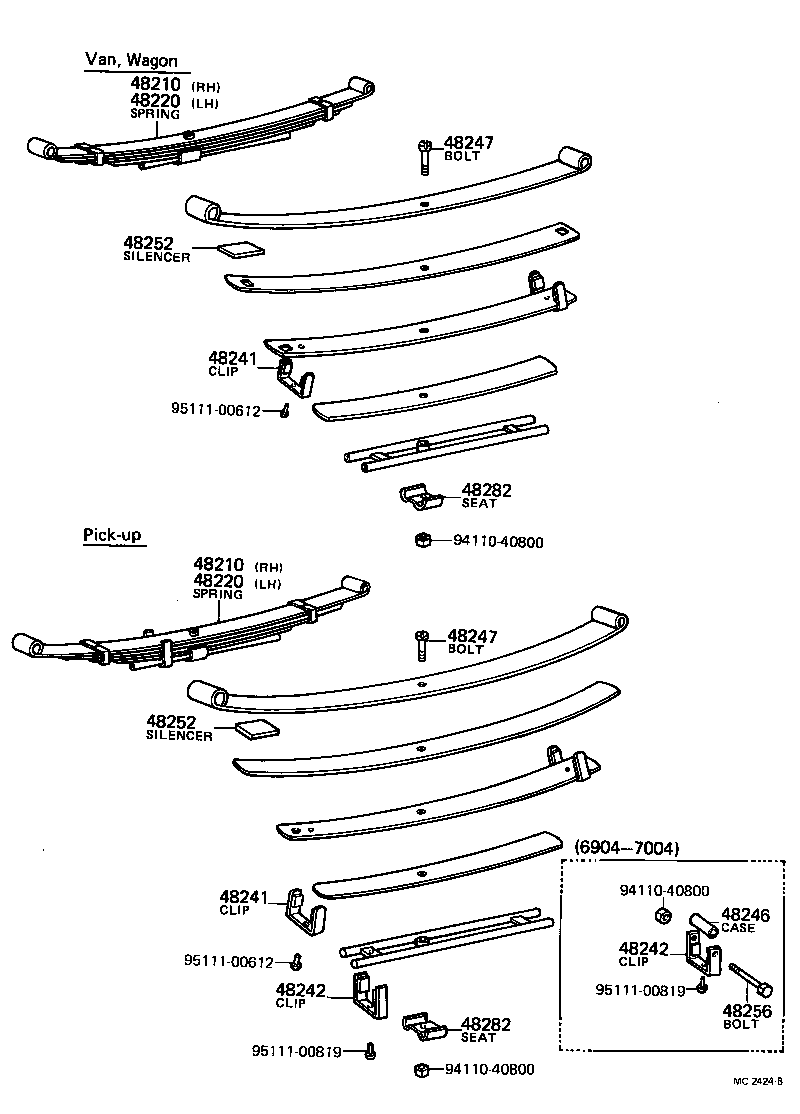

(6904-7310)KP36

Click highlighted areas on diagram

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-11050	KP36	04/1969 - 08/1969	1
48210-11051	KP36..V	08/1969 - 02/1971	1
48210-11052	KP36..V	03/1971 - 10/1973	1
48210-11053	KP36..V	10/1973 - 09/1978	1
48210 - SPRING ASSY, REAR RH
48210-11050	KP36	04/1969 - 08/1969	1
48210-11051	KP36..V	08/1969 - 02/1971	1
48210-11052	KP36..V	03/1971 - 10/1973	1
48210-11053	KP36..V	10/1973 - 09/1978	1
48220 - SPRING ASSY, REAR LH
48210-11051	KP36..V	08/1969 - 02/1971	1
48210-11052	KP36..V	03/1971 - 10/1973	1
48210-11050	KP36	04/1969 - 08/1969	1
48210-11053	KP36..V	10/1973 - 09/1978	1
48220 - SPRING ASSY, REAR LH
48210-11051	KP36..V	08/1969 - 02/1971	1
48210-11052	KP36..V	03/1971 - 10/1973	1
48210-11050	KP36	04/1969 - 08/1969	1
48210-11053	KP36..V	10/1973 - 09/1978	1
48241 - CLIP, REAR SPRING, NO.1
48241-11060	KP36	03/1971 - 12/1971	4
48241-11060	KP36	01/1972 - 04/1974	4
48241-11050	KP36..V	04/1969 - 02/1971	4
48241-10070	KP36..V	04/1974 - 09/1978	4
48241 - CLIP, REAR SPRING, NO.1
48241-11060	KP36	03/1971 - 12/1971	4
48241-11060	KP36	01/1972 - 04/1974	4
48241-11050	KP36..V	04/1969 - 02/1971	4
48241-10070	KP36..V	04/1974 - 09/1978	4
48242 - CLIP, REAR SPRING, NO.2
48241-11053	KP36..V	10/1973 - 04/1974	2
48242 - CLIP, REAR SPRING, NO.2
48241-11053	KP36..V	10/1973 - 04/1974	2
48247 - BOLT, REAR SPRING, CENTER
48247-11050	KP36..V	04/1969 - 09/1978	2
48247 - BOLT, REAR SPRING, CENTER
48247-11050	KP36..V	04/1969 - 09/1978	2
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48252 - SILENCER, REAR SPRING
48252-30010	KP3#..SED,V	10/1970 - 12/1971	8
48252-10012	KP3#	04/1969 - 10/1970	8
48282 - SEAT, REAR HELPER SPRING
48282-11010	KP36	04/1969 - 04/1974	2
48282 - SEAT, REAR HELPER SPRING
48282-11010	KP36	04/1969 - 04/1974	2
Common parts
94110-40800
95111-00612
95111-00819

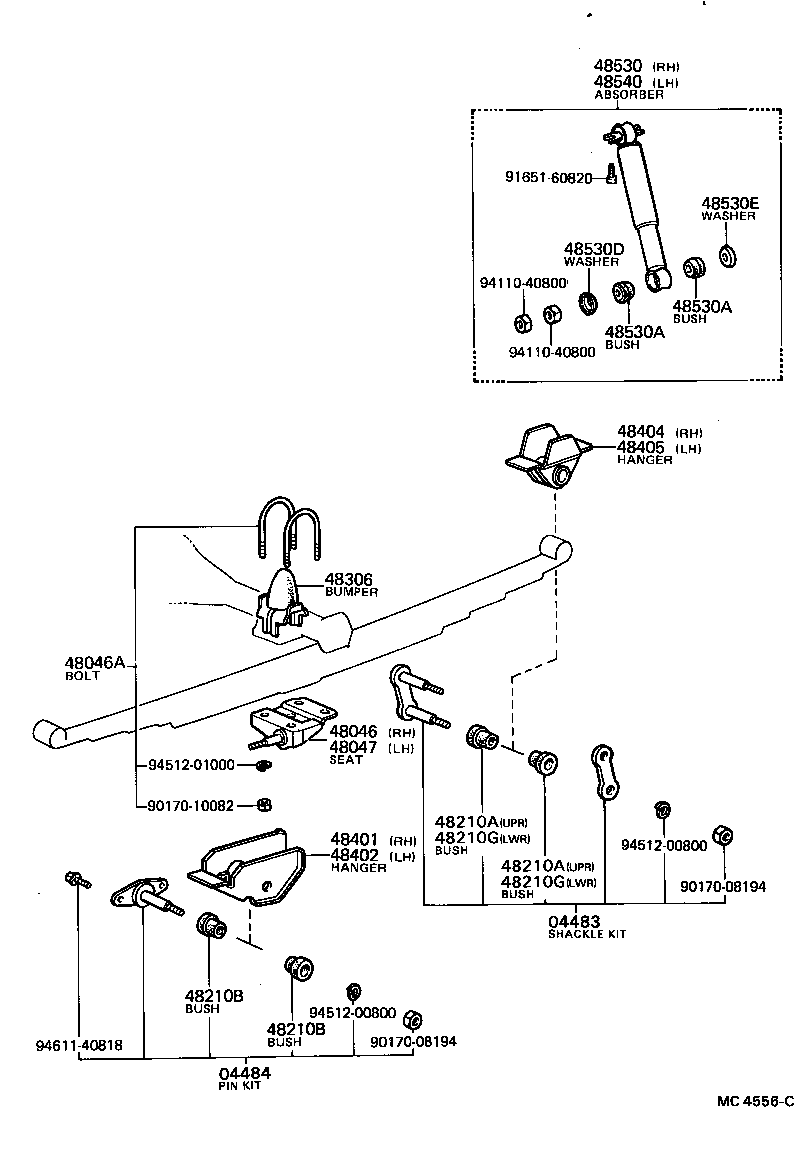

(6904-7809)V

Click highlighted areas on diagram

Part #	Description	Period	Qty
04483 - SHACKLE KIT, REAR SPRING
04483-10020	KP30,36..SED,V	04/1969 - 09/1978	2
04484 - PIN KIT, REAR SPRING
04484-10020	KP30,36..SED,V	04/1969 - 09/1978	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-11020	KP36..V	04/1969 - 09/1978	1
48046A - BOLT, U(FOR REAR SPRING)
90118-10051	KP30,36..SED,V	04/1969 - 09/1978	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-11020	KP36..V	04/1969 - 09/1978	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-10015	KP3#	04/1969 - 02/1976	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-10015	KP3#	04/1969 - 02/1976	4
48210B - BUSH(FOR REAR SPRING PIN)
90385-10055	KP30,36..SED,V	04/1969 - 09/1978	4
48210B - BUSH(FOR REAR SPRING PIN)
90385-10055	KP30,36..SED,V	04/1969 - 09/1978	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-10015	KP3#	04/1969 - 02/1976	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-10015	KP3#	04/1969 - 02/1976	4
48306 - BUMPER SUB-ASSY, REAR SPRING
48341-11031	KP36..V	04/1969 - 09/1978	2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
57711-10010	KP30,36..SED,V	04/1969 - 09/1978	1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
57712-10010	KP30,36..SED,V	04/1969 - 09/1978	1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
57702-11010	KP36..V	04/1969 - 09/1978	1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
57702-11010	KP36..V	04/1969 - 09/1978	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-19086	KP36..V	01/1972 - 09/1978	1
48531-19085	KP36..V	04/1969 - 12/1971	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-12008	KP3#	04/1969 - 12/1971	4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-12008	KP3#	04/1969 - 12/1971	4
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03001	KP3#	04/1969 - 12/1971	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03001	KP36	01/1972 - 01/1974	2
90948-03002	KP3#	04/1969 - 12/1971	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-19085	KP36..V	04/1969 - 12/1971	1
48531-19086	KP36..V	01/1972 - 09/1978	1
Common parts
90170-08194
90170-10082
91651-60820
94110-40800
94512-00800
94512-01000
94611-40818
