KP36LV- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7004)

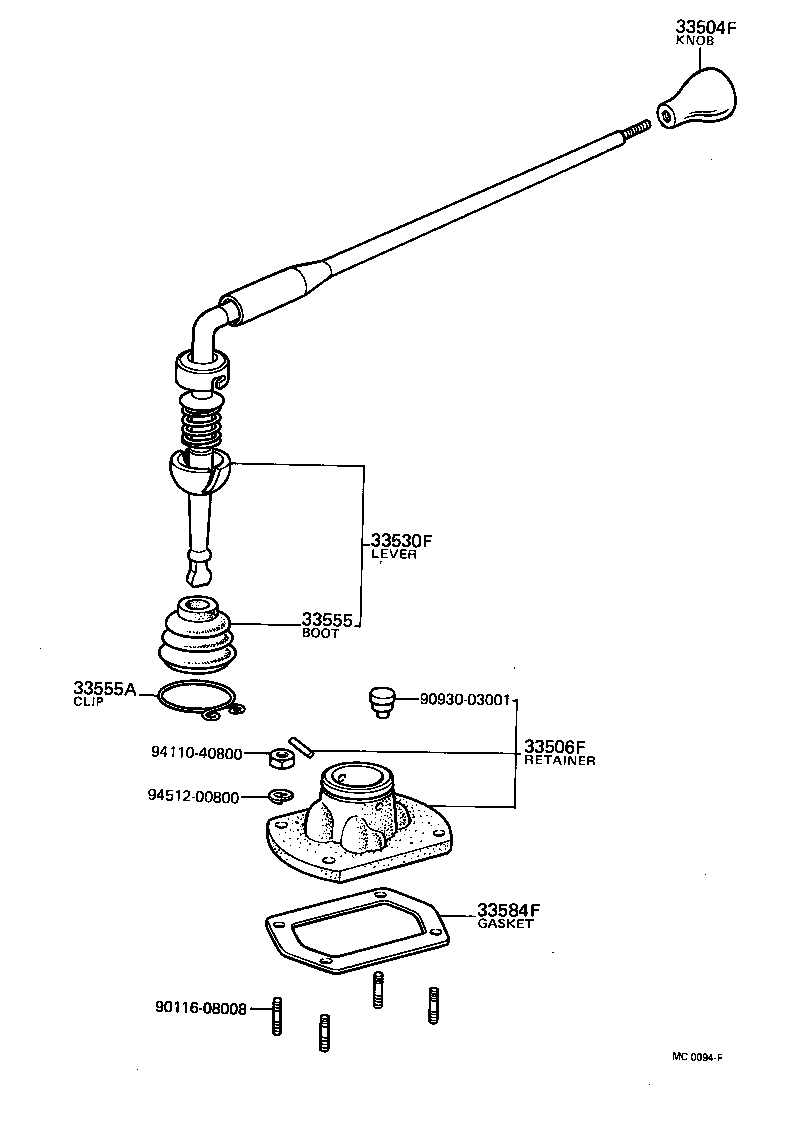

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33555 33555A 33584F 9011608008 9093003001 9411040800 9451200800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22020

KP3#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-12020

KP3#

 1
33506-12010

KP3#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-12021

KP3#

 1
33530-10020

KP3#

 1
33530-10021

KP3#

 1
33555 - BOOT, SHIFT LEVER
33555-12010

KP3#

 1
33555A - CLIP (FOR LEVER BOOT)
90467-44037

KP3#

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-12010

KP3#

T=0.5

 1
33584-12020

KP3#

T=0.3

 1
Common parts
90116-08008
90930-03001
94110-40800
94512-00800

(7004-7404)

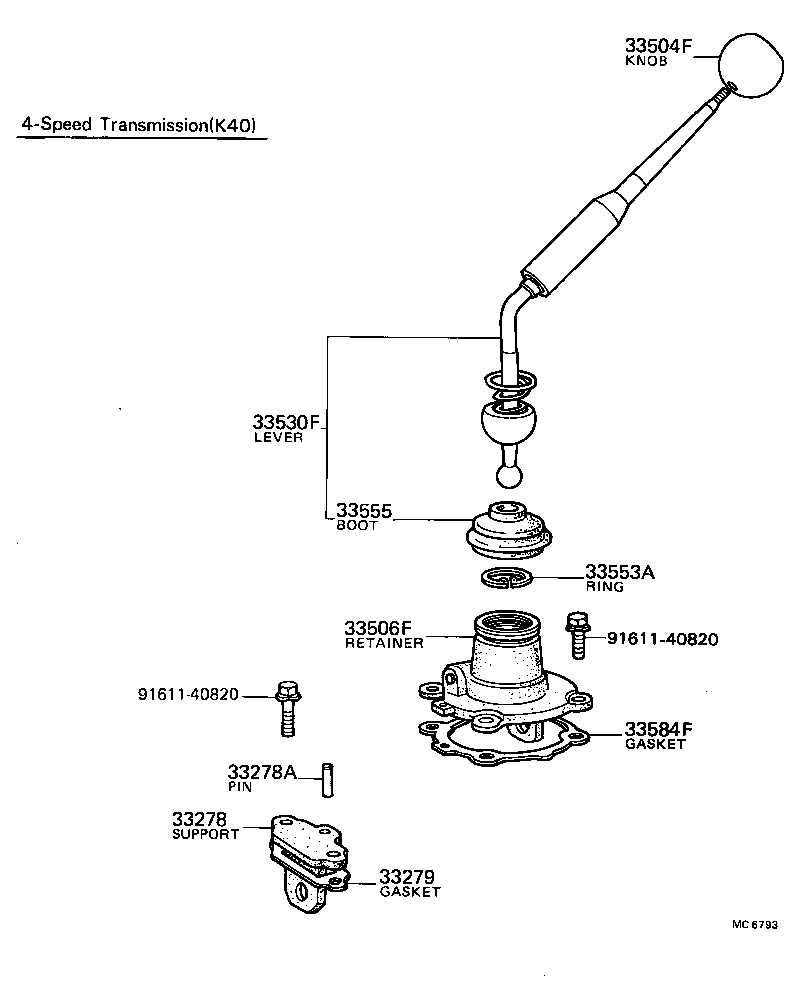

Click highlighted areas on diagram

diagram 33278 33278A 33279 33504F 33506F 33530F 33553A 33555 33584F 9161140820 9161140820
Part # Description Qty Price
33278 - SUPPORT, SHIFT & SELECT LEVER SHAFT
33278-12010

KP3#

 1
33278-12011

KP3#

 1
33278A - PIN, SHIFT AND SELECT LEVER SHAFT SUPPORT STRAIGHT
90250-06068

KP3#

 1
33279 - GASKET, SHIFT & SELECT LEVER SHAFT SUPPORT
33279-12010

KP3#

T=0.3

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22020

KP3#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-12020

KP3#

 1
33506-12010

KP3#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-12021

KP3#

 1
33530-10020

KP3#

 1
33530-10021

KP3#

 1
33555 - BOOT, SHIFT LEVER
33555-12010

KP3#

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-12010

KP3#

T=0.5

 1
33584-12020

KP3#

T=0.3

 1
Common parts
91611-40820
