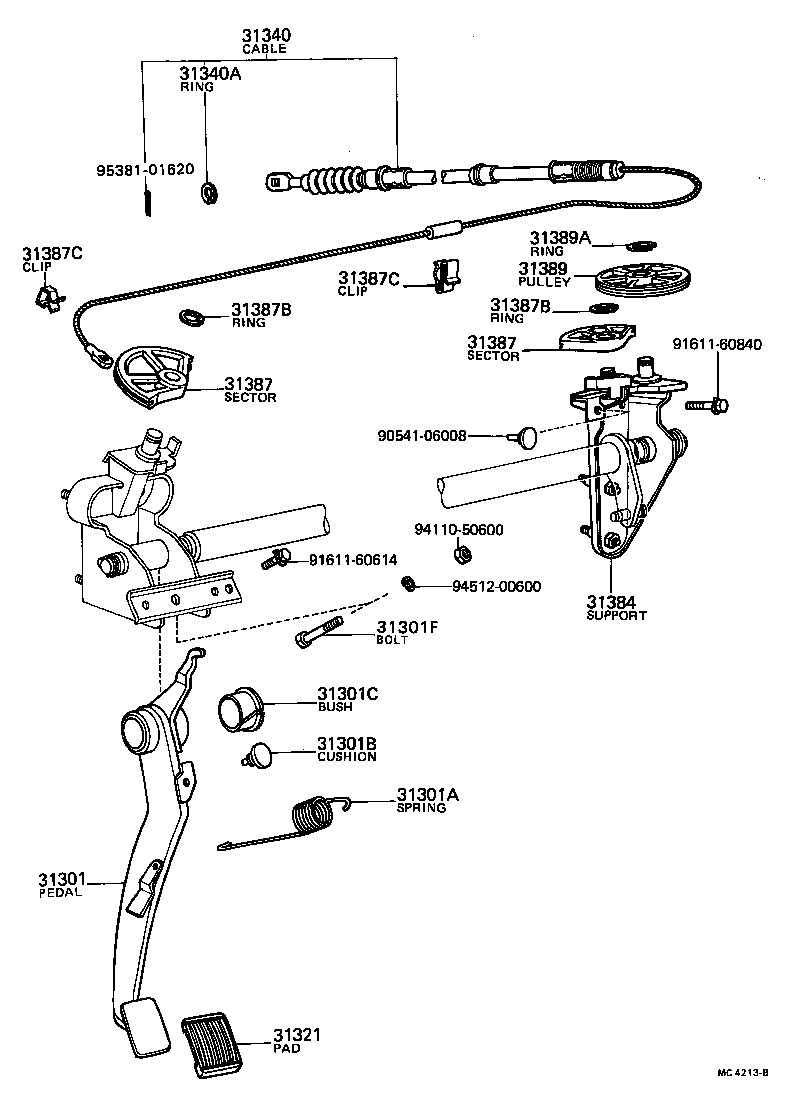

KP36LV- (1969)
Toyota Toyota1000
(6904- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-10040 |
KP3#..LHD |
1 | ||
| 31301-10070 |
KP30,36..(SED,V)..LHD W/TANDEM BRAKE M/C & BOOSTER |
1 | ||
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-10040 |
KP3#..LHD |
1 | ||
| 31301-10070 |
KP30,36..(SED,V)..LHD W/TANDEM BRAKE M/C & BOOSTER |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-12024 |
KP3#..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-12024 |
KP3#..LHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
KP3# |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-23001 |
KP30,36..(SED,V)..LHD ID=23,W/TANDEM M/C & BOOSTER |
1 | ||
| 90386-13007 |
KP3# |
2 | ||
| 90386-16001 |
KP30,36..(SED,V)..LHD ID=16,W/TANDEM M/C & BOOSTER |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-23001 |
KP30,36..(SED,V)..LHD ID=23,W/TANDEM M/C & BOOSTER |
1 | ||
| 90386-13007 |
KP3# |
2 | ||
| 90386-16001 |
KP30,36..(SED,V)..LHD ID=16,W/TANDEM M/C & BOOSTER |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-23001 |
KP30,36..(SED,V)..LHD ID=23,W/TANDEM M/C & BOOSTER |
1 | ||
| 90386-13007 |
KP3# |
2 | ||
| 90386-16001 |
KP30,36..(SED,V)..LHD ID=16,W/TANDEM M/C & BOOSTER |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-23001 |
KP30,36..(SED,V)..LHD ID=23,W/TANDEM M/C & BOOSTER |
1 | ||
| 90386-13007 |
KP3# |
2 | ||
| 90386-16001 |
KP30,36..(SED,V)..LHD ID=16,W/TANDEM M/C & BOOSTER |
1 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-06319 |
KP3# |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-10020 |
KP3# |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-10020 |
KP3# |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 31324-12021 |
KP30,36..LHD |
1 | ||
| 31340 - CABLE ASSY, CLUTCH RELEASE | ||||
| 31340-19085 |
KP3#..LHD |
1 | ||
| 31340-19165 |
KP30,36..(SED,V)..LHD W/TANDEM BRAKE M/C |
1 | ||
| 31340A - RING, E(FOR CLUTCH RELEASE CABLE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 31384 - SUPPORT ASSY, CLUTCH RELEASE SECTOR | ||||
| 31030-10010 |
KP3#..LHD |
1 | ||
| 31039-10020 |
KP30,36..(SED,V)..LHD W/TANDEM BRAKE M/C & BOOSTER |
1 | ||
| 31387 - SECTOR, CLUTCH RELEASE | ||||
| 31387-10010 |
KP30,36..LHD |
2 | ||
| 31387 - SECTOR, CLUTCH RELEASE | ||||
| 31387-10010 |
KP30,36..LHD |
2 | ||
| 31387B - RING, E(FOR CLUTCH RELEASE SECTOR) | ||||
| 96160-00800 |
KP30,36..LHD |
2 | ||
| 31387B - RING, E(FOR CLUTCH RELEASE SECTOR) | ||||
| 96160-00800 |
KP30,36..LHD |
2 | ||
| 31387C - CLIP(FOR CLUTCH RELEASE SECTOR) | ||||
| 90468-06008 |
KP30,36..LHD CLAMP TYPE |
1 | ||
| 90463-06153 |
KP30,36..LHD CLIP TYPE |
1 | ||
| 31387C - CLIP(FOR CLUTCH RELEASE SECTOR) | ||||
| 90468-06008 |
KP30,36..LHD CLAMP TYPE |
1 | ||
| 90463-06153 |
KP30,36..LHD CLIP TYPE |
1 | ||
| 31389 - PULLEY, CLUTCH RELEASE | ||||
| 31389-10010 |
KP30,36..LHD |
1 | ||
| 31389A - RING, E(FOR CLUTCH RELEASE PULLEY) | ||||
| 96160-00800 |
KP30,36..LHD |
1 | ||
| Common parts | ||||
| 90541-06008 | ||||
| 91611-60840 | ||||
| 94115-51200 | ||||
| 94120-40600 | ||||
| 94531-01200 | ||||
| 95381-01620 | ||||

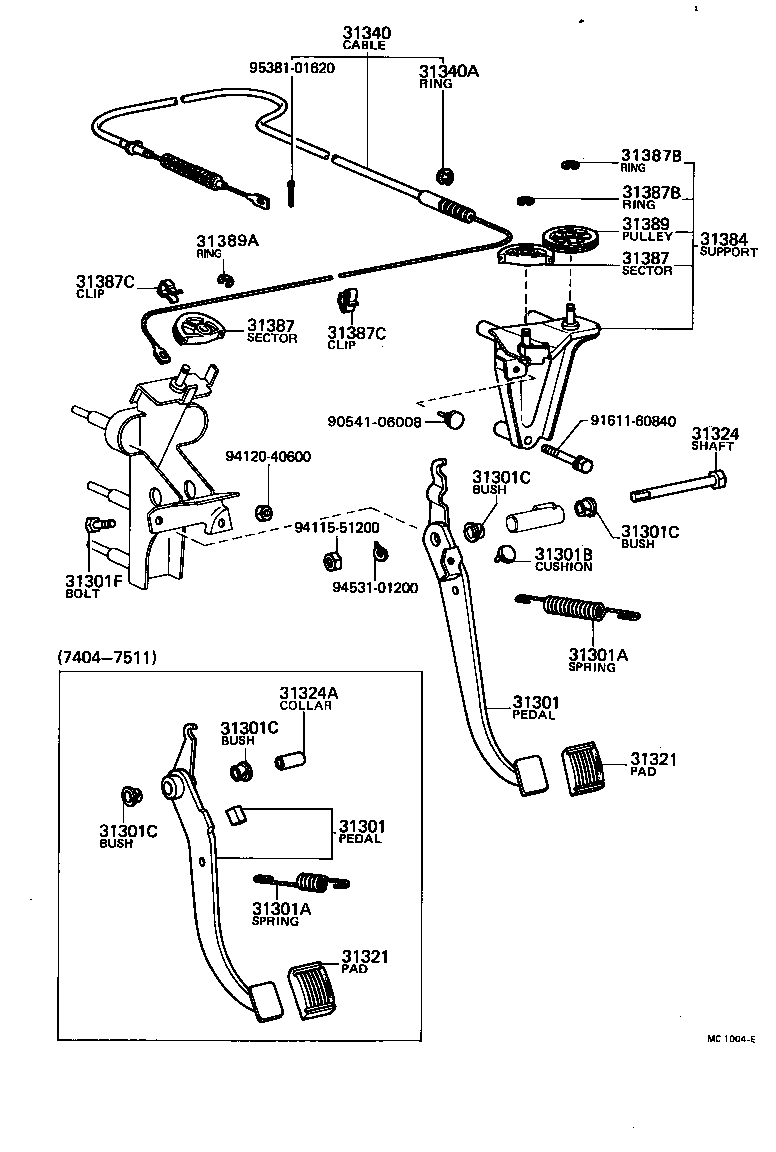

(7507-7809)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-10040 |
KP3#..LHD |
1 | ||
| 31301-10070 |
KP30,36..(SED,V)..LHD W/TANDEM BRAKE M/C & BOOSTER |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-12024 |
KP3#..LHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
KP3# |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-23001 |
KP30,36..(SED,V)..LHD ID=23,W/TANDEM M/C & BOOSTER |
1 | ||
| 90386-13007 |
KP3# |
2 | ||
| 90386-16001 |
KP30,36..(SED,V)..LHD ID=16,W/TANDEM M/C & BOOSTER |
1 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-06319 |
KP3# |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-10020 |
KP3# |
1 | ||
| 31340 - CABLE ASSY, CLUTCH RELEASE | ||||
| 31340-19085 |
KP3#..LHD |
1 | ||
| 31340-19165 |
KP30,36..(SED,V)..LHD W/TANDEM BRAKE M/C |
1 | ||
| 31340A - RING, E(FOR CLUTCH RELEASE CABLE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 31384 - SUPPORT ASSY, CLUTCH RELEASE SECTOR | ||||
| 31030-10010 |
KP3#..LHD |
1 | ||
| 31039-10020 |
KP30,36..(SED,V)..LHD W/TANDEM BRAKE M/C & BOOSTER |
1 | ||
| 31387 - SECTOR, CLUTCH RELEASE | ||||
| 31387-10010 |
KP30,36..LHD |
2 | ||
| 31387 - SECTOR, CLUTCH RELEASE | ||||
| 31387-10010 |
KP30,36..LHD |
2 | ||
| 31387B - RING, E(FOR CLUTCH RELEASE SECTOR) | ||||
| 96160-00800 |
KP30,36..LHD |
2 | ||
| 31387B - RING, E(FOR CLUTCH RELEASE SECTOR) | ||||
| 96160-00800 |
KP30,36..LHD |
2 | ||
| 31387C - CLIP(FOR CLUTCH RELEASE SECTOR) | ||||
| 90468-06008 |
KP30,36..LHD CLAMP TYPE |
1 | ||
| 90463-06153 |
KP30,36..LHD CLIP TYPE |
1 | ||
| 31387C - CLIP(FOR CLUTCH RELEASE SECTOR) | ||||
| 90468-06008 |
KP30,36..LHD CLAMP TYPE |
1 | ||
| 90463-06153 |
KP30,36..LHD CLIP TYPE |
1 | ||
| 31389 - PULLEY, CLUTCH RELEASE | ||||
| 31389-10010 |
KP30,36..LHD |
1 | ||
| 31389A - RING, E(FOR CLUTCH RELEASE PULLEY) | ||||
| 96160-00800 |
KP30,36..LHD |
1 | ||
| Common parts | ||||
| 90541-06008 | ||||
| 91611-60614 | ||||
| 91611-60840 | ||||
| 94110-50600 | ||||
| 94512-00600 | ||||
| 95381-01620 | ||||
