KP36LV- (1969)
Toyota Toyota1000

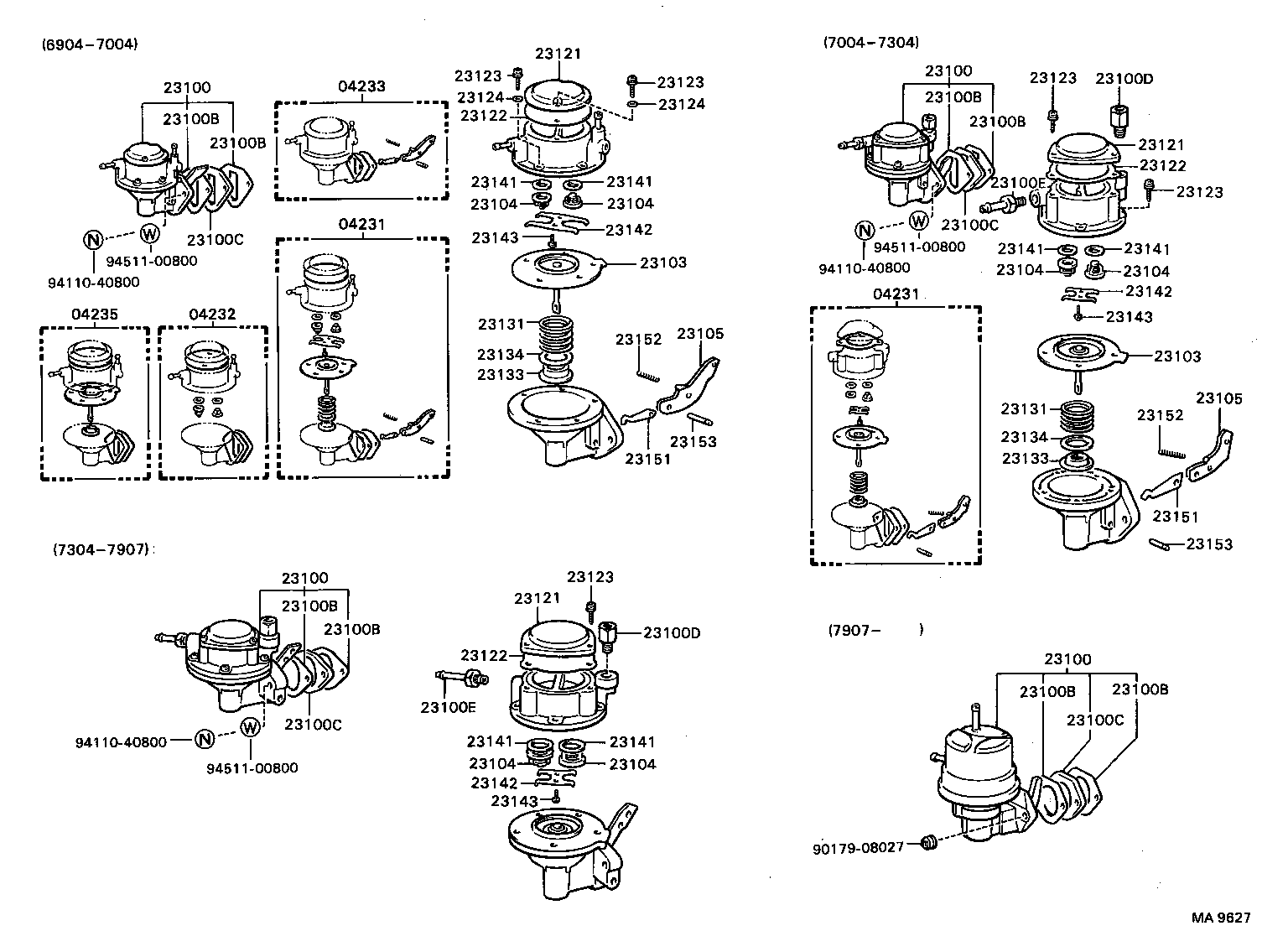

(6904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04231 - PUMP KIT, FUEL | ||||
| 04231-24011 |
2K..KP3# |
1 | ||
| 04231-22010 |
2K..KP3# |
1 | ||
| 04231-24010 |
2K..KP3# |
1 | ||
| 04231 - PUMP KIT, FUEL | ||||
| 04231-24011 |
2K..KP3# |
1 | ||
| 04231-22010 |
2K..KP3# |
1 | ||
| 04231-24010 |
2K..KP3# |
1 | ||
| 04232 - VALVE KIT, FUEL PUMP | ||||
| 04232-22010 |
2K..KP3# |
1 | ||
| 04233 - ARM KIT, FUEL PUMP ROCKER | ||||
| 04233-22010 |
2K..KP3# |
1 | ||
| 04235 - DIAPHRAGM KIT, FUEL PUMP | ||||
| 04235-22010 |
2K..KP3# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29025 |
2K..KP3# |
1 | ||
| 23100-29036 |
2K..KP3# |
1 | ||
| 23100-29026 |
2K..KP3# |
1 | ||
| 23100-29037 |
2K..KP3# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29025 |
2K..KP3# |
1 | ||
| 23100-29036 |
2K..KP3# |
1 | ||
| 23100-29026 |
2K..KP3# |
1 | ||
| 23100-29037 |
2K..KP3# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29025 |
2K..KP3# |
1 | ||
| 23100-29036 |
2K..KP3# |
1 | ||
| 23100-29026 |
2K..KP3# |
1 | ||
| 23100-29037 |
2K..KP3# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29025 |
2K..KP3# |
1 | ||
| 23100-29036 |
2K..KP3# |
1 | ||
| 23100-29026 |
2K..KP3# |
1 | ||
| 23100-29037 |
2K..KP3# |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
2K,3KH..KP3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
2K,3KH..KP3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
2K,3KH..KP3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
2K,3KH..KP3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
2K,3KH..KP3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
2K,3KH..KP3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
2K,3KH..KP3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
2K,3KH..KP3# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
2K,3KH..KP3# |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
2K,3KH..KP3# |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
2K,3KH..KP3# |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
2K,3KH..KP3# |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 90404-51266 |
2K..KP3# |
1 | ||
| 90404-13105 |
2K..KP3# |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 90404-51266 |
2K..KP3# |
1 | ||
| 90404-13105 |
2K..KP3# |
1 | ||
| 23103 - DIAPHRAGM SUB-ASSY | ||||
| 23103-24010 |
2K..KP3# |
1 | ||
| 23103-22010 |
2K..KP3# |
1 | ||
| 23103-24011 |
2K..KP3# |
1 | ||
| 23103 - DIAPHRAGM SUB-ASSY | ||||
| 23103-24010 |
2K..KP3# |
1 | ||
| 23103-22010 |
2K..KP3# |
1 | ||
| 23103-24011 |
2K..KP3# |
1 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
2K,3KH..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
2K,3KH..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
2K,3KH..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
2K,3KH..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
2K,3KH..KP3# |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-40010 |
2K,3KH..KP3# |
2 | ||
| 23105 - ARM SUB-ASSY, ROCKER | ||||
| 23105-22010 |
2K..KP3# |
1 | ||
| 23105 - ARM SUB-ASSY, ROCKER | ||||
| 23105-22010 |
2K..KP3# |
1 | ||
| 23121 - COVER, FUEL PUMP | ||||
| 23121-22010 |
2K..KP3# |
1 | ||
| 23121-22011 |
2K..KP3# |
1 | ||
| 23121 - COVER, FUEL PUMP | ||||
| 23121-22010 |
2K..KP3# |
1 | ||
| 23121-22011 |
2K..KP3# |
1 | ||
| 23121 - COVER, FUEL PUMP | ||||
| 23121-22010 |
2K..KP3# |
1 | ||
| 23121-22011 |
2K..KP3# |
1 | ||
| 23122 - GASKET, FUEL PUMP COVER | ||||
| 23122-22010 |
2K..KP3# |
1 | ||
| 23122-22011 |
2K..KP3# |
1 | ||
| 23122 - GASKET, FUEL PUMP COVER | ||||
| 23122-22010 |
2K..KP3# |
1 | ||
| 23122-22011 |
2K..KP3# |
1 | ||
| 23122 - GASKET, FUEL PUMP COVER | ||||
| 23122-22010 |
2K..KP3# |
1 | ||
| 23122-22011 |
2K..KP3# |
1 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 23123-60021 |
2K..KP3# |
7 | ||
| 23123-33012 |
2K..KP3# |
8 | ||
| 23123-60022 |
2K..KP3# |
7 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 23123-60021 |
2K..KP3# |
7 | ||
| 23123-33012 |
2K..KP3# |
8 | ||
| 23123-60022 |
2K..KP3# |
7 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 23123-60021 |
2K..KP3# |
7 | ||
| 23123-33012 |
2K..KP3# |
8 | ||
| 23123-60022 |
2K..KP3# |
7 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 23123-60021 |
2K..KP3# |
7 | ||
| 23123-33012 |
2K..KP3# |
8 | ||
| 23123-60022 |
2K..KP3# |
7 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 23123-60021 |
2K..KP3# |
7 | ||
| 23123-33012 |
2K..KP3# |
8 | ||
| 23123-60022 |
2K..KP3# |
7 | ||
| 23124 - WASHER, COVER SET, NO.2 | ||||
| 23124-60010 |
2K..KP3# |
7 | ||
| 23124 - WASHER, COVER SET, NO.2 | ||||
| 23124-60010 |
2K..KP3# |
7 | ||
| 23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP) | ||||
| 23131-10010 |
2K..KP3# |
1 | ||
| 23131-24010 |
2K..KP3# |
1 | ||
| 23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP) | ||||
| 23131-10010 |
2K..KP3# |
1 | ||
| 23131-24010 |
2K..KP3# |
1 | ||
| 23133 - PACKING, OIL SEAL(FOR FUEL PUMP) | ||||
| 23133-22011 |
2K..KP3# |
1 | ||
| 23133-22010 |
2K..KP3# |
1 | ||
| 23133 - PACKING, OIL SEAL(FOR FUEL PUMP) | ||||
| 23133-22011 |
2K..KP3# |
1 | ||
| 23133-22010 |
2K..KP3# |
1 | ||
| 23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP) | ||||
| 23134-22011 |
2K..KP3# |
1 | ||
| 23134-22010 |
2K..KP3# |
1 | ||
| 23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP) | ||||
| 23134-22011 |
2K..KP3# |
1 | ||
| 23134-22010 |
2K..KP3# |
1 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
2K,3KH..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
2K,3KH..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
2K,3KH..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
2K,3KH..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
2K,3KH..KP3# |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
2K,3KH..KP3# |
2 | ||
| 23142 - RETAINER, VALVE | ||||
| 23142-30020 |
2K,3KH..KP3# |
1 | ||
| 23142 - RETAINER, VALVE | ||||
| 23142-30020 |
2K,3KH..KP3# |
1 | ||
| 23142 - RETAINER, VALVE | ||||
| 23142-30020 |
2K,3KH..KP3# |
1 | ||
| 23143 - SCREW, VALVE RETAINER SET | ||||
| 23143-60021 |
2K,3KH..KP3# |
2 | ||
| 23143 - SCREW, VALVE RETAINER SET | ||||
| 23143-60021 |
2K,3KH..KP3# |
2 | ||
| 23143 - SCREW, VALVE RETAINER SET | ||||
| 23143-60021 |
2K,3KH..KP3# |
2 | ||
| 23151 - LINK, ROCKER ARM | ||||
| 23151-22010 |
2K..KP3# |
1 | ||
| 23151 - LINK, ROCKER ARM | ||||
| 23151-22010 |
2K..KP3# |
1 | ||
| 23152 - SPRING, ROCKER ARM | ||||
| 23152-30020 |
2K..KP3# |
1 | ||
| 23152 - SPRING, ROCKER ARM | ||||
| 23152-30020 |
2K..KP3# |
1 | ||
| 23153 - PIN, ROCKER ARM | ||||
| 23153-60011 |
2K..KP3# |
1 | ||
| 23153 - PIN, ROCKER ARM | ||||
| 23153-60011 |
2K..KP3# |
1 | ||
| Common parts | ||||
| 90179-08027 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

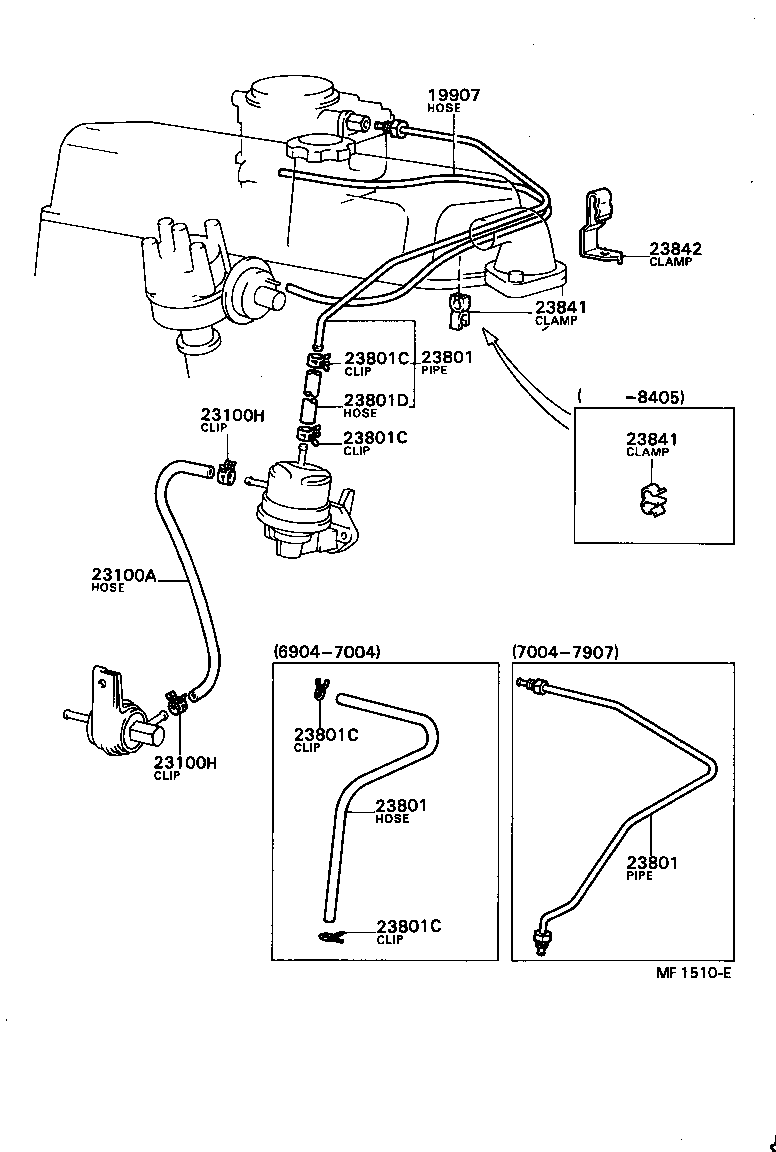

(6904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19907 - HOSE, VACUUM, NO.1 | ||||
| 90445-07004 |
2K..KP3# |
1 | ||
| 90445-07159 |
2K..KP3# |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 90923-01137 |
2K..KP3# |
1 | ||
| 90923-01145 |
2K..KP3# COLD SPEC |
1 | ||
| 95332-08030 |
2K..KP3# COLD SPEC,*H,L=260 |
1 | ||
| 90445-11126 |
2K..KP3# |
1 | ||
| 95323-07028 |
2K..KP3# |
1 | ||
| 90445-12983 |
2K..KP3# |
1 | ||
| 95332-06030 |
2K..KP3# COLD SPEC,*H,L=260 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96113-10150 |
2K..KP3# |
2 | ||
| 90467-12140 |
2K..KP3# |
2 | ||
| 90467-10013 |
2K..KP3# |
2 | ||
| 90467-13138 |
2K..KP3# |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96113-10150 |
2K..KP3# |
2 | ||
| 90467-12140 |
2K..KP3# |
2 | ||
| 90467-10013 |
2K..KP3# |
2 | ||
| 90467-13138 |
2K..KP3# |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 90445-11158 |
2K..KP3# |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 90445-11158 |
2K..KP3# |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 90445-11158 |
2K..KP3# |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-10013 |
2K..KP3# |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-10013 |
2K..KP3# |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-10013 |
2K..KP3# |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-10013 |
2K..KP3# |
4 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23842-11010 |
2K..KP3# |
1 | ||
| 23842-22010 |
2K..KP3# |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23842-11010 |
2K..KP3# |
1 | ||
| 23842-22010 |
2K..KP3# |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23841-22010 |
2K..KP3# |
1 | ||
