KP36LV- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

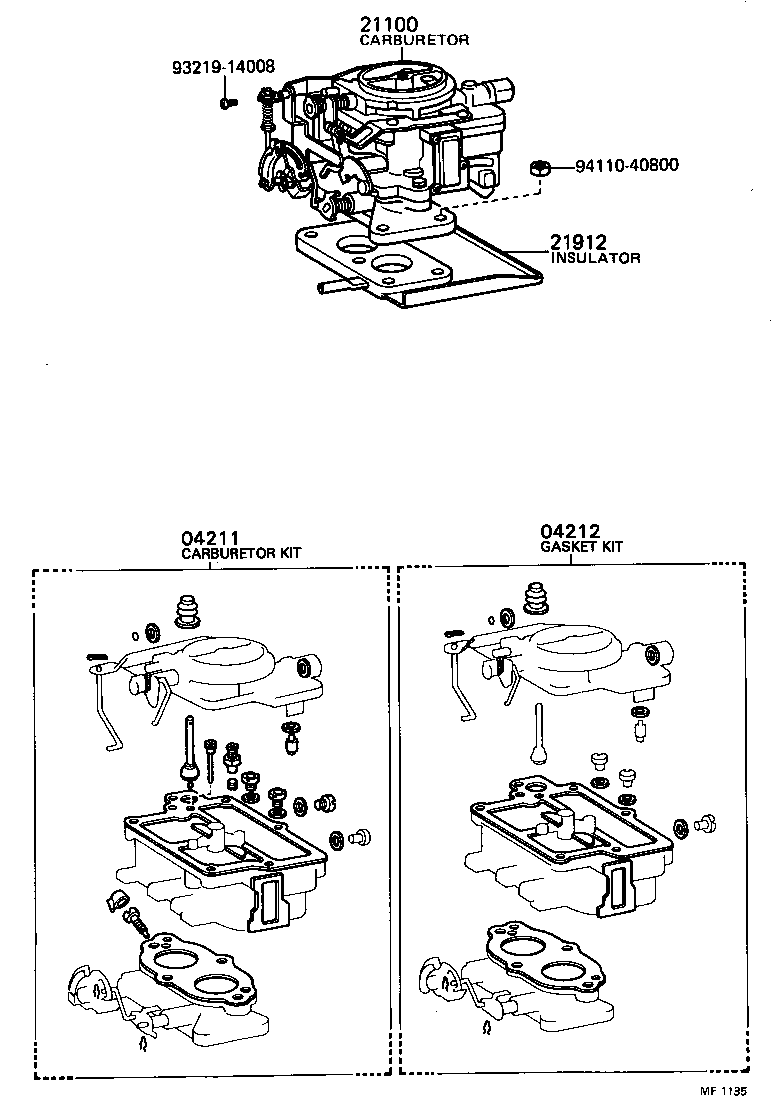

Click highlighted areas on diagram

diagram 04211 04212 21100 21912 9321914008 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-12012

2K..KP3#

 1
04211-12013

2K..KP3#

 1
04211-12011

2K..KP3#

 1
04211-12010

2K..KP3#

 1
04211-12020

2K..KP3#..SED,V

EUROPE SPEC,NO.15

 1
04212 - GASKET KIT, CARBURETOR
04212-24012

2K..KP30,36

 1
04212-22011

2K..KP3#

 1
21100 - CARBURETOR ASSY
21100-12017

2K..KP3#

 1
21100-12050

2K..KP3#..SED,V

EUROPE SPEC,NO.15

 1
21100-12050

2K..KP3#

EUROPE SPEC,NO.15

 1
21100-12014

2K..KP3#

 1
21100-12015

2K..KP3#

 1
21100-12013

2K..KP3#

 1
21100-12019

2K..KP3#

 1
21100-12012

2K..KP3#

 1
21100-12011

2K..KP3#

 1
21100-12018

2K..KP3#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-22020

2K..KP3#

W/PCV

 1
21912-22010

2K..KP3#

 1
21912-24030

2K..KP3#

COLD SPEC

 1
21912-24021

2K..KP3#

W/PCV

 1
21912-24020

2K..KP3#

W/O PCV

 1
21912-24032

2K..KP3#

W/O PCV

 1
21912-24031

2K..KP3#

W/O PCV

 1
21912-24060

2K..KP3#

W/PCV

 1
Common parts
93219-14008
94110-40800
