KP36LV- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

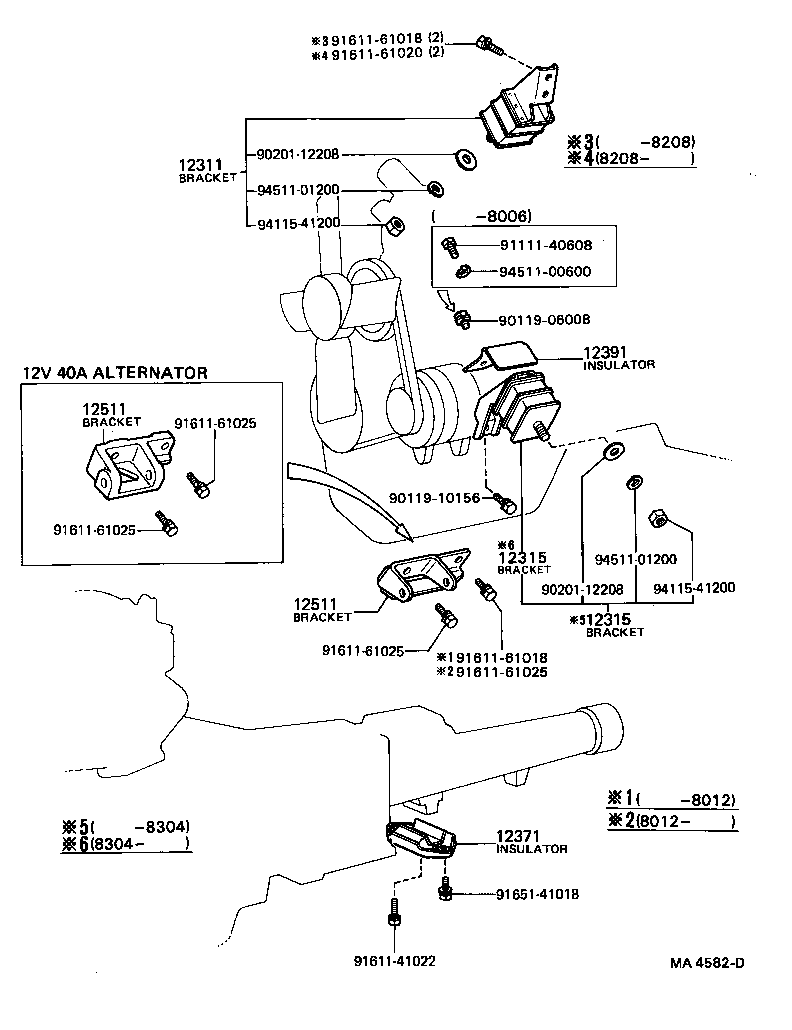

Click highlighted areas on diagram

diagram 12311 12315 12315 12371 12391 12511 12511 9011906008 9011910156 9020112208 9020112208 9111140608 9161141022 9161161018 9161161018 9161161020 9161161025 9161161025 9161161025 9161161025 9165141018 9411541200 9411541200 9451100600 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-29016

2K..KP3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-29016

2K..KP3#

 1
12302-29017

2K..KP3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-29016

2K..KP3#

 1
12302-29017

2K..KP3#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-22010

2K..KP30,36

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-22010

2K,3KH..KP3#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-22013

2K..KP3#

 1
12511-22014

2K..KP3#

12V 30A ALTERNATOR

 1
12511-22012

2K..KP3#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-22013

2K..KP3#

 1
12511-22014

2K..KP3#

12V 30A ALTERNATOR

 1
12511-22012

2K..KP3#

 1
Common parts
90119-06008
90119-10156
90201-12208
91111-40608
91611-41022
91611-61018
91611-61020
91611-61025
91651-41018
94115-41200
94511-00600
94511-01200
