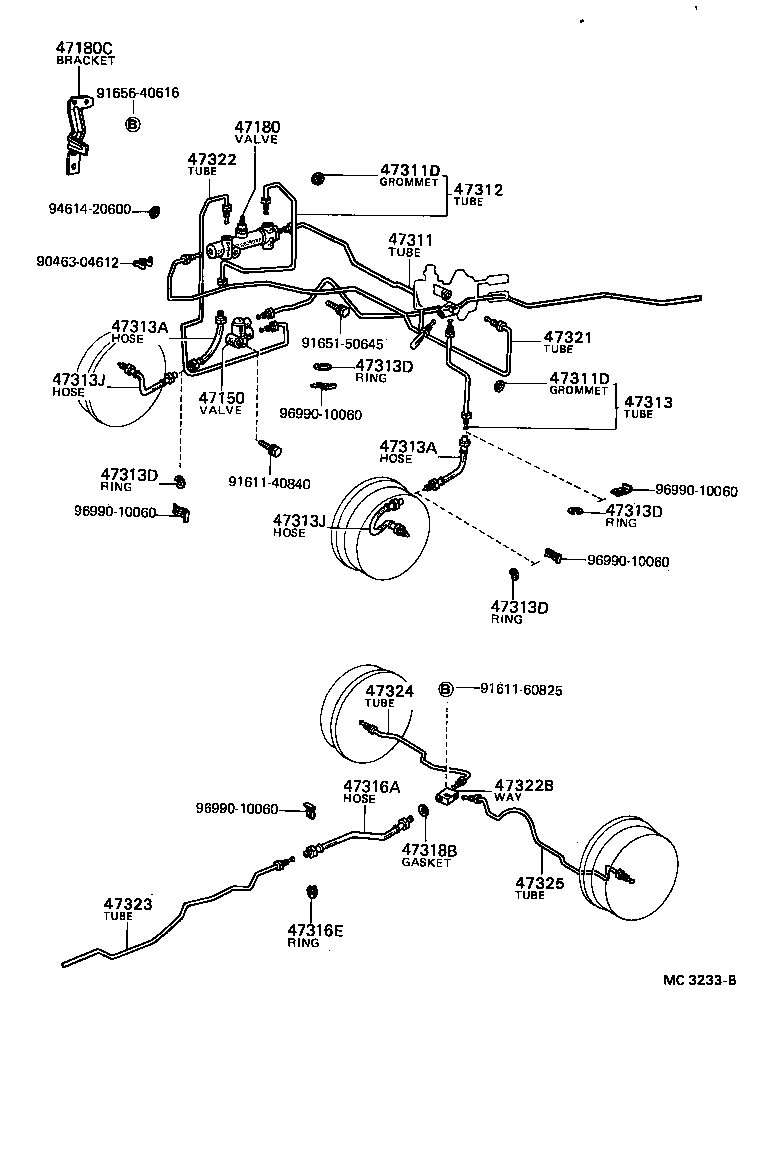

KP30L- (1969)
Toyota Toyota1000
(6904-7004) ; (7004-7310)SED,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02098 |
KP3# L=386 |
1 | ||
| 90947-02098 |
KP3#..SED,V L=386 |
1 | ||
| 90947-02171 |
KP3#..SED,V L=402 |
1 | ||
| 90947-02226 |
KP3#..SED,V L=298 |
1 | ||
| 47316E - RING, E(FOR REAR FLEXIBLE HOSE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 47316E - RING, E(FOR REAR FLEXIBLE HOSE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47316-10070 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10100 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47316-10101 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10073 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10072 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10102 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10151 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10071 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10103 |
KP30 W/TANDEM M/C |
1 | ||
| 47316-10150 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10074 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10104 |
KP30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47318-10030 |
KP3#..SED,V |
1 | ||
| 47318-10031 |
KP3#..SED,V |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47319-10031 |
KP3#..SED,V |
1 | ||
| 47319-10032 |
KP3#..SED,V |
1 | ||
| 47319-10030 |
KP3#..SED,V |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47332-10010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47331-12010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47333-10010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47331-12010 |
KP3# FR DRUM BRAKE |
1 | ||
| Common parts | ||||
| 96990-10060 | ||||
(7011-7310)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12011 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP3#..SED,V |
1 | ||
| 47150-12011 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12011 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP3#..SED,V |
1 | ||
| 47150-12011 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47169 - PROTECTOR, PROPORTIONING VALVE | ||||
| 47169-10010 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47169-10010 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02098 |
KP3# L=386 |
1 | ||
| 90947-02098 |
KP3#..SED,V L=386 |
1 | ||
| 90947-02171 |
KP3#..SED,V L=402 |
1 | ||
| 90947-02226 |
KP3#..SED,V L=298 |
1 | ||
| 47316E - RING, E(FOR REAR FLEXIBLE HOSE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 47316E - RING, E(FOR REAR FLEXIBLE HOSE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47312-10010 |
KP30..LHD |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD W/SINGLE M/C |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47316-10070 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10100 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47316-10101 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10073 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10072 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10102 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10151 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10071 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10103 |
KP30 W/TANDEM M/C |
1 | ||
| 47316-10150 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10074 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10104 |
KP30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47318-10030 |
KP3#..SED,V |
1 | ||
| 47318-10031 |
KP3#..SED,V |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47319-10031 |
KP3#..SED,V |
1 | ||
| 47319-10032 |
KP3#..SED,V |
1 | ||
| 47319-10030 |
KP3#..SED,V |
1 | ||
| Common parts | ||||
| 91611-40845 | ||||
| 96990-10060 | ||||
(7310-7511)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12011 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP3#..SED,V |
1 | ||
| 47150-12011 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02098 |
KP3# L=386 |
1 | ||
| 90947-02098 |
KP3#..SED,V L=386 |
1 | ||
| 90947-02171 |
KP3#..SED,V L=402 |
1 | ||
| 90947-02226 |
KP3#..SED,V L=298 |
1 | ||
| 47316E - RING, E(FOR REAR FLEXIBLE HOSE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47312-10010 |
KP30..LHD |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD W/SINGLE M/C |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47316-10070 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10100 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47316-10101 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10073 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10072 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10102 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10151 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10071 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10103 |
KP30 W/TANDEM M/C |
1 | ||
| 47316-10150 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10074 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10104 |
KP30 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47316-10070 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10100 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47316-10101 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10073 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10072 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10102 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10151 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10071 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10103 |
KP30 W/TANDEM M/C |
1 | ||
| 47316-10150 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10074 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10104 |
KP30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47318-10030 |
KP3#..SED,V |
1 | ||
| 47318-10031 |
KP3#..SED,V |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47319-10031 |
KP3#..SED,V |
1 | ||
| 47319-10032 |
KP3#..SED,V |
1 | ||
| 47319-10030 |
KP3#..SED,V |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47332-10010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47331-12010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47333-10010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47331-12010 |
KP3# FR DRUM BRAKE |
1 | ||
| Common parts | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 96990-10060 | ||||
(7407-7511)KP30..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12011 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP3#..SED,V |
1 | ||
| 47150-12011 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47180 - VALVE,ASSY, BRRKE PRESSURE DIFFERENTIAL | ||||
| 47180-10011 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47180C - BRACKET, BRAKE PRESSURE DIFFERENTIAL VALVE | ||||
| 47159-10010 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-10020 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02098 |
KP3# L=386 |
1 | ||
| 90947-02098 |
KP3#..SED,V L=386 |
1 | ||
| 90947-02171 |
KP3#..SED,V L=402 |
1 | ||
| 90947-02226 |
KP3#..SED,V L=298 |
1 | ||
| 47316E - RING, E(FOR REAR FLEXIBLE HOSE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47312-10010 |
KP30..LHD |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD W/SINGLE M/C |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47315-10070 |
KP30..LHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47316-10070 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10100 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47316-10101 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10073 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10072 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10102 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10151 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10071 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10103 |
KP30 W/TANDEM M/C |
1 | ||
| 47316-10150 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10074 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10104 |
KP30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47318-10030 |
KP3#..SED,V |
1 | ||
| 47318-10031 |
KP3#..SED,V |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47319-10031 |
KP3#..SED,V |
1 | ||
| 47319-10032 |
KP3#..SED,V |
1 | ||
| 47319-10030 |
KP3#..SED,V |
1 | ||
| Common parts | ||||
| 90463-04612 | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 91651-50645 | ||||
| 91656-40616 | ||||
| 94614-20600 | ||||
| 96990-10060 | ||||
(7507-7512) ; (7512-7809)SED,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47170 - VALVE ASSY, BRAKE COMBINATION | ||||
| 47170-22010 |
KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-10020 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02098 |
KP3# L=386 |
1 | ||
| 90947-02098 |
KP3#..SED,V L=386 |
1 | ||
| 90947-02171 |
KP3#..SED,V L=402 |
1 | ||
| 90947-02226 |
KP3#..SED,V L=298 |
1 | ||
| 47316E - RING, E(FOR REAR FLEXIBLE HOSE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47312-10010 |
KP30..LHD |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD W/SINGLE M/C |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47316-10070 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10100 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47316-10101 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10073 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10072 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10102 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10151 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10071 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10103 |
KP30 W/TANDEM M/C |
1 | ||
| 47316-10150 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10074 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10104 |
KP30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47318-10030 |
KP3#..SED,V |
1 | ||
| 47318-10031 |
KP3#..SED,V |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47319-10031 |
KP3#..SED,V |
1 | ||
| 47319-10032 |
KP3#..SED,V |
1 | ||
| 47319-10030 |
KP3#..SED,V |
1 | ||
| Common parts | ||||
| 90461-04013 | ||||
| 90461-04014 | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 96990-10060 | ||||
(7511- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12011 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47150-10020 |
KP3#..SED,V |
1 | ||
| 47150-12011 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-15146 |
KP3# OD=15 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-10060 |
KP3#..LHD |
1 | ||
| 47313-10080 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47313-10100 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47313-10080 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47313-10061 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-10070 |
KP3#..LHD |
1 | ||
| 47314-10090 |
KP30..LHD W/TANDEM M/C |
1 | ||
| 47314-10100 |
KP3#..(SED,V)..LHD W/TANDEM M/C |
1 | ||
| 47314-10071 |
KP3#..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02096 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02100 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 90947-02186 |
KP3# FR DRUM BRAKE |
2 | ||
| 90947-02187 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02257 |
KP30 FR DISC BRAKE |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KP3# |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02188 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30 FR DISC BRAKE |
2 | ||
| 90947-02256 |
KP30;KP36..V..LHD FR DISC BRAKE |
2 | ||
| 90947-02083 |
KP3#..SED,V FR DISC BRAKE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02098 |
KP3# L=386 |
1 | ||
| 90947-02098 |
KP3#..SED,V L=386 |
1 | ||
| 90947-02171 |
KP3#..SED,V L=402 |
1 | ||
| 90947-02226 |
KP3#..SED,V L=298 |
1 | ||
| 47316E - RING, E(FOR REAR FLEXIBLE HOSE) | ||||
| 96160-01200 |
KP3# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47312-10010 |
KP30..LHD |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD W/SINGLE M/C |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47312-10010 |
KP30..LHD |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD W/SINGLE M/C |
1 | ||
| 47315-10010 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47316-10070 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10100 |
KP3#..(SED,V)..LHD EUROPE SPEC |
1 | ||
| 47316-10101 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10073 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10072 |
KP3#..(SED,V)..LHD |
1 | ||
| 47316-10102 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10151 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10071 |
KP3#..(SED,V)..LHD W/O PV |
1 | ||
| 47316-10103 |
KP30 W/TANDEM M/C |
1 | ||
| 47316-10150 |
KP30..LHD W/TANDEM M/C & BOOSTER |
1 | ||
| 47316-10074 |
KP30..LHD EUROPE SPEC |
1 | ||
| 47316-10104 |
KP30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47318-10030 |
KP3#..SED,V |
1 | ||
| 47318-10031 |
KP3#..SED,V |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47319-10031 |
KP3#..SED,V |
1 | ||
| 47319-10032 |
KP3#..SED,V |
1 | ||
| 47319-10030 |
KP3#..SED,V |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47332-10010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47331-12010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47333-10010 |
KP3# FR DRUM BRAKE |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47331-12010 |
KP3# FR DRUM BRAKE |
1 | ||
| Common parts | ||||
| 90461-08324 | ||||
| 90461-12112 | ||||
| 90461-12142 | ||||
| 90480-01063 | ||||
| 90480-01069 | ||||
| 90480-12006 | ||||
| 90949-01074 | ||||
| 91611-40832 | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
| 96221-30905 | ||||
| 96990-10060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
