KP30- (1969)

Toyota Toyota1000

Production Apr 1969 - Feb 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )RHD

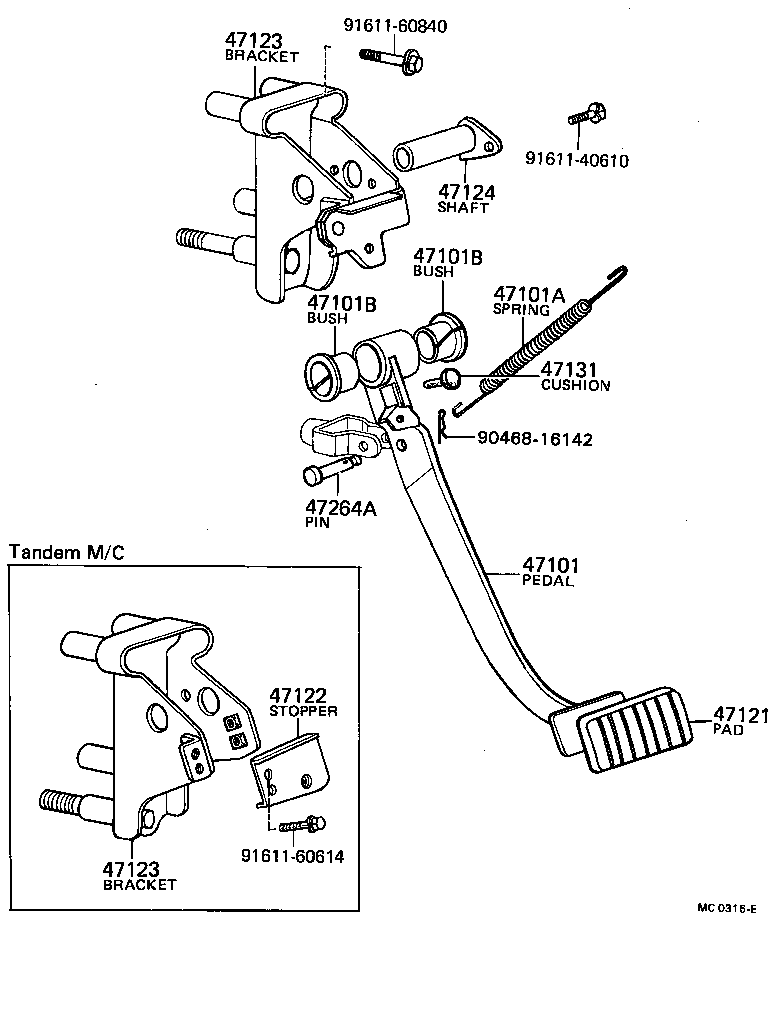

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47122 47123 47123 47124 47131 47264A 9046816142 9161140610 9161160614 9161160840
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-10051

KP3#..RHD

 1
47101-10050

KP3#..RHD

 1
47101-10052

KP3#..RHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-12217

KP3#..RHD

WD=1.2,CW=30.5

 1
90506-14393

KP3#..RHD

 1
90506-16373

KP3#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-20056

KP3#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-20056

KP3#

 2
47121 - PAD, BRAKE PEDAL
31321-10020

KP3#

 1
47123 - BRACKET, BRAKE PEDAL
31305-10010

KP3#..RHD

 1
31305-10030

KP30..RHD

W/TANDEM M/C

 1
47123 - BRACKET, BRAKE PEDAL
31305-10010

KP3#..RHD

 1
31305-10030

KP30..RHD

W/TANDEM M/C

 1
47124 - SHAFT, BRAKE PEDAL
31041-10010

KP3#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

KP3#

 1
47264A - PIN(FOR PUSH ROD)
90240-08040

KP3#

 1
90240-08128

KP3#

 1
90240-08062

KP3#

 1
Common parts
90468-16142
91611-40610
91611-60614
91611-60840
