Toyota Toyoace RY31 EXHAUST PIPE

RY31L-JDBH3 (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983

Engine 5R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

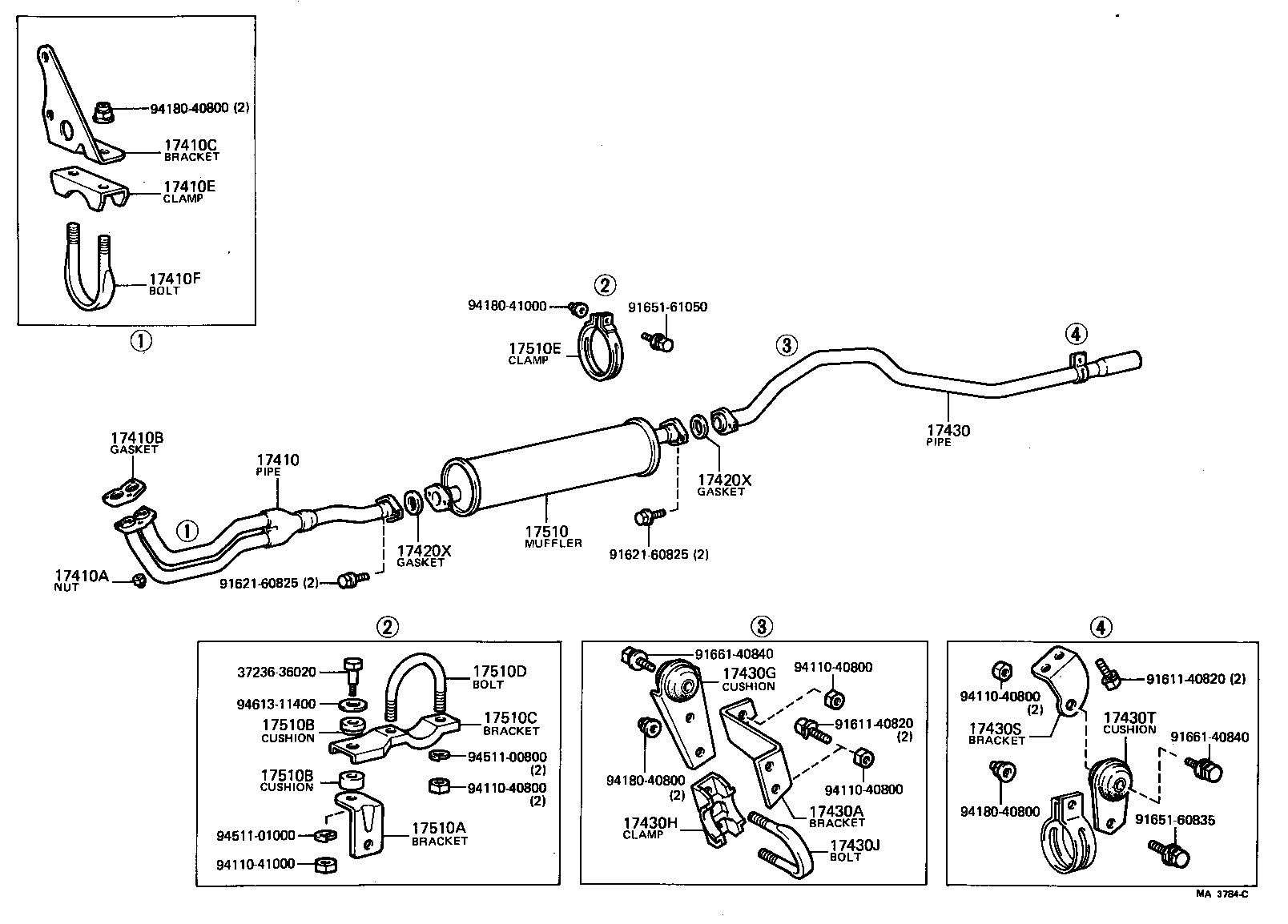

(7903- )5R..20T

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-44120	5R..RY31..20T	03/1979 - 07/1985	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118	L,2L,5R..LY20,3#,RY31	03/1979 - 07/1985	3
17410B - GASKET, EXHAUST PIPE
17451-41010	5R..RY31	03/1979 - 07/1985	1
90917-06004	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44070	12R,5R..RY20,3#	03/1979 - 07/1985	1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04021	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
90917-04005	5R..RY31	03/1979 - 07/1985	1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90117-08013	5R..RY31	03/1979 - 07/1985	1
90117-08205	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004	5R..RY31..20T RR	03/1979 - 07/1985	1
90917-06008	5R..RY31..20T FR	03/1979 - 07/1985	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004	5R..RY31..20T RR	03/1979 - 07/1985	1
90917-06008	5R..RY31..20T FR	03/1979 - 07/1985	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44210	5R..RY31..20T	03/1979 - 07/1985	1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17573-48060	5R..RY31..20T	03/1979 - 07/1985	1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
90917-08012	5R..RY31..20T	03/1979 - 07/1985	1
17430H - CLAMP NO.1, EXHAUST TAIL PIPE(FOR CENTER)
90917-04021	5R..RY31..20T	03/1979 - 07/1985	1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90117-08205	5R..RY31..20T	03/1979 - 07/1985	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-44020	L,12R,2L..LY20,3#,RY20,30	03/1979 - 07/1985	1
17574-44030	5R..RY31..20T	03/1979 - 07/1985	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004	L,12R,2J,5R..JY30,LY20,30,RY20,3#	03/1979 - 01/1982	1
17510 - MUFFLER ASSY
17501-36011	5R..RY31..20T	03/1979 - 07/1985	1
17510A - BRACKET, MUFFLER, FRONT
17576-56030	5R..RY31..20T	03/1979 - 07/1985	1
17510B - CUSHION, MUFFLER, FRONT
90540-15003	5R..RY31..20T UPR	03/1979 - 07/1985	1
90540-14001	5R..RY31..20T LWR	03/1979 - 07/1985	1
17510B - CUSHION, MUFFLER, FRONT
90540-15003	5R..RY31..20T UPR	03/1979 - 07/1985	1
90540-14001	5R..RY31..20T LWR	03/1979 - 07/1985	1
17510C - CLAMP NO.1, MUFFLER, FRONT
17572-56100	5R..RY31..20T	03/1979 - 07/1985	1
17510D - BOLT OR RING, MUFFLER, FRONT
90117-08005	5R..RY31..20T	03/1979 - 07/1985	1
17510E - CLAMP NO.2, MUFFLER, FRONT
17578-56030	5R..RY31..20T	03/1979 - 07/1985	1
Common parts
37236-36020
91611-40820
91621-60825
91651-60835
91651-61050
91661-40840
94110-40800
94110-41000
94180-40800
94180-41000
94511-00800
94511-01000
94613-11400

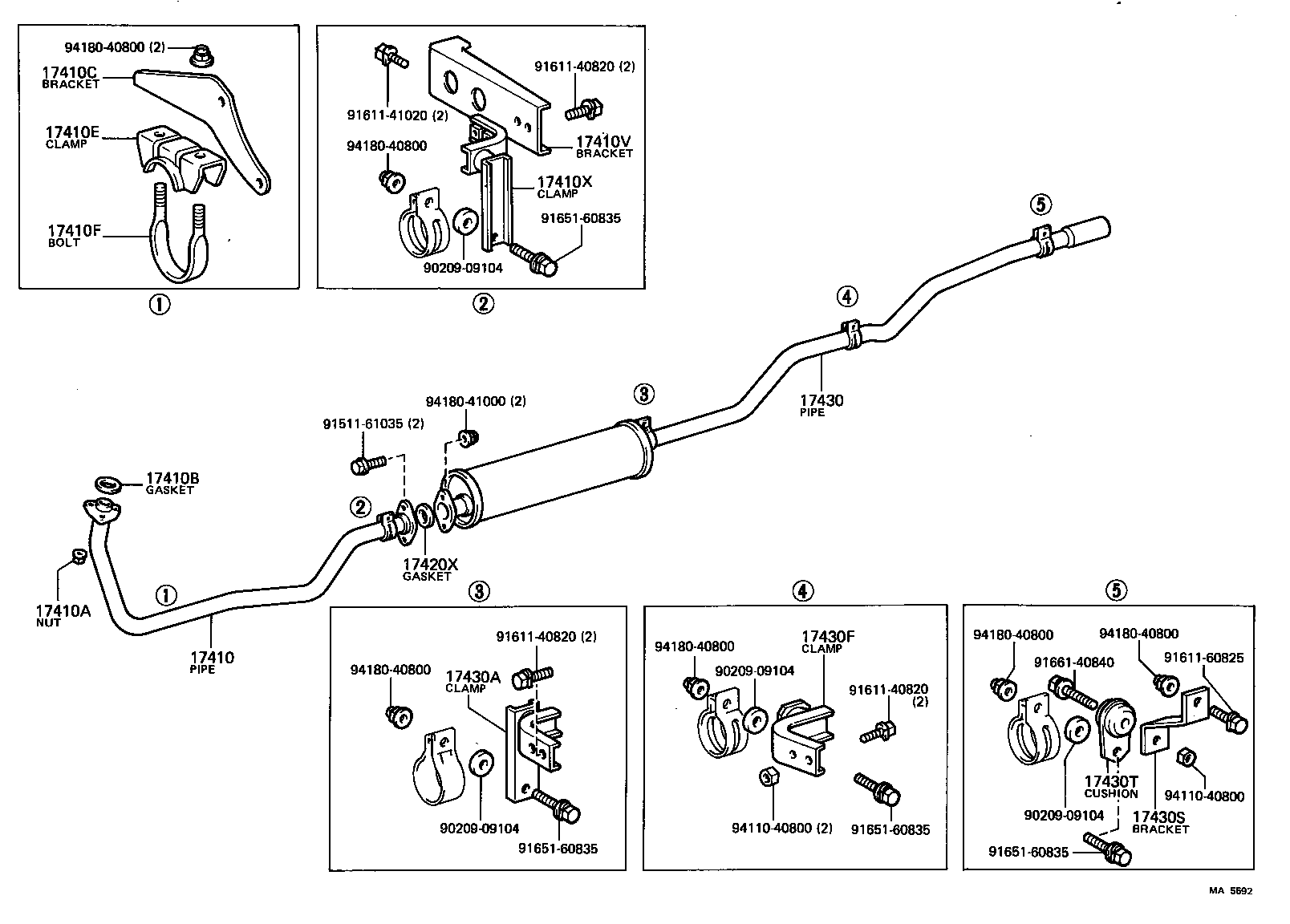

(7903-8201)L

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-44120	5R..RY31..20T	03/1979 - 07/1985	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118	L,2L,5R..LY20,3#,RY31	03/1979 - 07/1985	3
17410B - GASKET, EXHAUST PIPE
17451-41010	5R..RY31	03/1979 - 07/1985	1
90917-06004	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44070	12R,5R..RY20,3#	03/1979 - 07/1985	1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04021	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
90917-04005	5R..RY31	03/1979 - 07/1985	1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90117-08013	5R..RY31	03/1979 - 07/1985	1
90117-08205	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54010	L,2L..LY20,3#	03/1979 - 07/1985	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004	5R..RY31..20T RR	03/1979 - 07/1985	1
90917-06008	5R..RY31..20T FR	03/1979 - 07/1985	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44210	5R..RY31..20T	03/1979 - 07/1985	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44210	5R..RY31..20T	03/1979 - 07/1985	1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17573-48060	5R..RY31..20T	03/1979 - 07/1985	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-44030	5R..RY31..20T	03/1979 - 07/1985	1
17573-44020	L,12R,2L..LY20,3#,RY20,30	03/1979 - 07/1985	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004	L,12R,2J,5R..JY30,LY20,30,RY20,3#	03/1979 - 01/1982	1
Common parts
90209-09104
91511-61035
91611-40820
91611-41020
91611-60825
91651-60835
91661-40840
94110-40800
94180-40800
94180-41000

(8201- )L,2L

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-44120	5R..RY31..20T	03/1979 - 07/1985	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118	L,2L,5R..LY20,3#,RY31	03/1979 - 07/1985	3
17410B - GASKET, EXHAUST PIPE
17451-41010	5R..RY31	03/1979 - 07/1985	1
90917-06004	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44070	12R,5R..RY20,3#	03/1979 - 07/1985	1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04021	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
90917-04005	5R..RY31	03/1979 - 07/1985	1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90117-08013	5R..RY31	03/1979 - 07/1985	1
90117-08205	L,12R,2J,2L..JY30,LY20,3#,RY20,30	03/1979 - 07/1985	1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54010	L,2L..LY20,3#	03/1979 - 07/1985	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004	5R..RY31..20T RR	03/1979 - 07/1985	1
90917-06008	5R..RY31..20T FR	03/1979 - 07/1985	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-44210	5R..RY31..20T	03/1979 - 07/1985	1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17573-48060	5R..RY31..20T	03/1979 - 07/1985	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-44030	5R..RY31..20T	03/1979 - 07/1985	1
17573-44020	L,12R,2L..LY20,3#,RY20,30	03/1979 - 07/1985	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004	L,12R,2J,5R..JY30,LY20,30,RY20,3#	03/1979 - 01/1982	1
Common parts
90209-09104
91511-61035
91611-40820
91611-41020
91611-60825
91651-60835
91661-40840
94110-40800
94180-40800
94180-41000

RY31L-JDBH3 (1979)

(7903- )5R..20T

(7903-8201)L

(8201- )L,2L
