RY31L-JDB (1979)
Toyota Toyoace

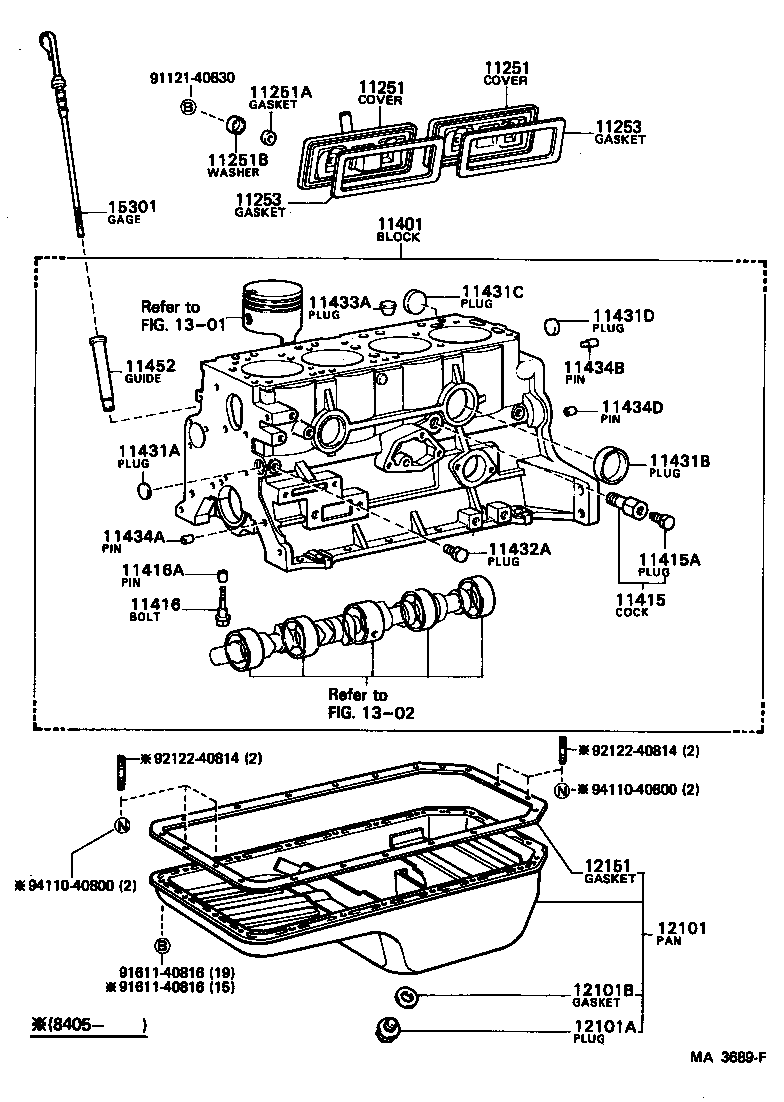

(7903- )5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-44010 |
5R..RY31..GEN |
2 | ||
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-44010 |
5R..RY31..GEN |
2 | ||
| 11251A - GASKET(FOR VALVE PUSH ROD COVER BOLT) | ||||
| 90430-07121 |
5R..RY31 |
4 | ||
| 11251B - WASHER, SEAL(FOR VALVE PUSH ROD COVER BOLT) | ||||
| 90210-08006 |
12R,5R..RY20,3# |
4 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-40010 |
5R..RY31 |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-40010 |
5R..RY31 |
2 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-49227 |
5R..RY31 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
12R,5R..RY20,3# |
1 | ||
| 96431-23814 |
L,2L..LY20,3# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02038 |
5R..RY31 *12-1.25PX67-21 |
6 | ||
| 90910-02061 |
L,2L..LY20,3# *12-1.25PX80-24 |
10 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-16014 |
5R..RY31 |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90330-21012 |
5R..RY31 OD=21 |
2 | ||
| 96411-42500 |
L,2L..LY20,3# OD=25 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
5R..RY31 OD=50 |
3 | ||
| 96411-43500 |
L,2L..LY20,3# OD=35 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
L,2L..LY20,3# OD=50 |
1 | ||
| 90331-27041 |
5R..RY31 OD=27 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
5R..RY31 OD=30 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
12R,5R..RY20,3# |
2 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90334-10009 |
5R..RY31 L=6.5,OD=9.5 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
L,2L..LY20,3# L=11,OD=11,L=11,OD=11 |
2 | ||
| 90253-11001 |
5R..RY31 L=11,OD=11,L=11,OD=11 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10052 |
5R..RY31 L=20,OD=10,L=20,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
5R..RY31 L=11,OD=11,L=11,OD=11 |
2 | ||
| 90253-11001 |
L,2L..LY20,3# L=11,OD=11,L=11,OD=11 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-44020 |
5R..RY31 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-49216 |
5R..RY31 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12R,5R..RY20,3# |
1 | ||
| 90341-18089 |
L,2L..LY20,3# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L,2L..LY20,3# |
1 | ||
| 90430-18244 |
12R,5R..RY20,3# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-44010 |
5R..RY31 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54030 |
L,2L..LY20,3# |
1 | ||
| 15301-44050 |
5R..RY31 |
1 | ||
| Common parts | ||||
| 91121-40830 | ||||
| 91611-40816 | ||||
| 92122-40814 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
(7903-8304)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-49227 |
5R..RY31 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
12R,5R..RY20,3# |
1 | ||
| 96431-23814 |
L,2L..LY20,3# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02038 |
5R..RY31 *12-1.25PX67-21 |
6 | ||
| 90910-02061 |
L,2L..LY20,3# *12-1.25PX80-24 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90330-21012 |
5R..RY31 OD=21 |
2 | ||
| 96411-42500 |
L,2L..LY20,3# OD=25 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
5R..RY31 OD=50 |
3 | ||
| 96411-43500 |
L,2L..LY20,3# OD=35 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
L,2L..LY20,3# OD=50 |
1 | ||
| 90331-27041 |
5R..RY31 OD=27 |
2 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
12R,5R..RY20,3# |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
L,2L..LY20,3# L=11,OD=11,L=11,OD=11 |
2 | ||
| 90253-11001 |
5R..RY31 L=11,OD=11,L=11,OD=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
L,2L..LY20,3# L=7,OD=14.5,L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
5R..RY31 L=11,OD=11,L=11,OD=11 |
2 | ||
| 90253-11001 |
L,2L..LY20,3# L=11,OD=11,L=11,OD=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
L,2L..LY20,3# L=22,OD=10 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-44020 |
5R..RY31 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-49216 |
5R..RY31 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12R,5R..RY20,3# |
1 | ||
| 90341-18089 |
L,2L..LY20,3# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L,2L..LY20,3# |
1 | ||
| 90430-18244 |
12R,5R..RY20,3# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-44010 |
5R..RY31 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54030 |
L,2L..LY20,3# |
1 | ||
| 15301-44050 |
5R..RY31 |
1 | ||
| Common parts | ||||
| 90116-08071 | ||||
| 90119-08247 | ||||
| 90179-08040 | ||||
| 90341-12007 | ||||
| 90430-12221 | ||||
| Linked diagrams | ||||
| 1301 | ||||
(8304- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-49227 |
5R..RY31 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
12R,5R..RY20,3# |
1 | ||
| 96431-23814 |
L,2L..LY20,3# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02038 |
5R..RY31 *12-1.25PX67-21 |
6 | ||
| 90910-02061 |
L,2L..LY20,3# *12-1.25PX80-24 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90330-21012 |
5R..RY31 OD=21 |
2 | ||
| 96411-42500 |
L,2L..LY20,3# OD=25 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
5R..RY31 OD=50 |
3 | ||
| 96411-43500 |
L,2L..LY20,3# OD=35 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
L,2L..LY20,3# OD=50 |
1 | ||
| 90331-27041 |
5R..RY31 OD=27 |
2 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
12R,5R..RY20,3# |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
L,2L..LY20,3# L=11,OD=11,L=11,OD=11 |
2 | ||
| 90253-11001 |
5R..RY31 L=11,OD=11,L=11,OD=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
L,2L..LY20,3# L=7,OD=14.5,L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
5R..RY31 L=11,OD=11,L=11,OD=11 |
2 | ||
| 90253-11001 |
L,2L..LY20,3# L=11,OD=11,L=11,OD=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
L,2L..LY20,3# L=22,OD=10 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-44020 |
5R..RY31 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-49216 |
5R..RY31 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-49216 |
5R..RY31 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12R,5R..RY20,3# |
1 | ||
| 90341-18089 |
L,2L..LY20,3# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L,2L..LY20,3# |
1 | ||
| 90430-18244 |
12R,5R..RY20,3# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-44010 |
5R..RY31 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54030 |
L,2L..LY20,3# |
1 | ||
| 15301-44050 |
5R..RY31 |
1 | ||
| Common parts | ||||
| 90116-08071 | ||||
| 90119-08247 | ||||
| 90179-08040 | ||||
| 90341-12007 | ||||
| 90431-12007 | ||||
| Linked diagrams | ||||
| 1301 | ||||
