RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)RY10,12

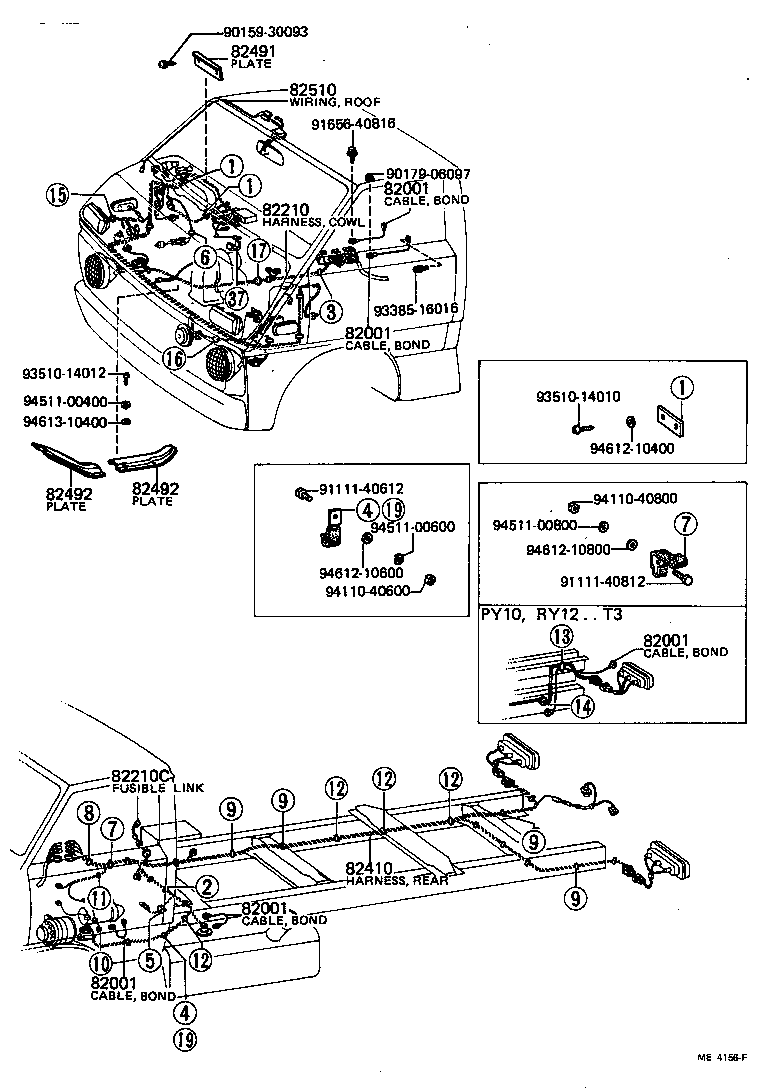

Click highlighted areas on diagram

diagram 82001 82001 82001 82001 82001 82210 82210C 82410 82491 82492 82492 82510 9015930093 9017906097 9111140612 9111140812 9165640816 9338516016 9351014010 9351014012 9411040600 9411040800 9451100400 9451100600 9451100800 9461210400 9461210600 9461210800 9461310400
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
82201-95010

RY10,12

FOR FUEL GAGE

 1
90980-07011

RY1#

L=300

 1
90980-07021

RY1#

L=280

 2
82202-95011

JY16,RY1#..T3

L=500

 1
90980-07051

RY1#

L=300

 1
82201-95011

JY16,RY1#

FOR FUEL GAGE

 1
82001 - CABLE, BOND, NO.1
82201-95010

RY10,12

FOR FUEL GAGE

 1
90980-07011

RY1#

L=300

 1
90980-07021

RY1#

L=280

 2
82202-95011

JY16,RY1#..T3

L=500

 1
90980-07051

RY1#

L=300

 1
82201-95011

JY16,RY1#

FOR FUEL GAGE

 1
82001 - CABLE, BOND, NO.1
82201-95010

RY10,12

FOR FUEL GAGE

 1
90980-07011

RY1#

L=300

 1
90980-07021

RY1#

L=280

 2
82202-95011

JY16,RY1#..T3

L=500

 1
90980-07051

RY1#

L=300

 1
82201-95011

JY16,RY1#

FOR FUEL GAGE

 1
82001 - CABLE, BOND, NO.1
82201-95010

RY10,12

FOR FUEL GAGE

 1
90980-07011

RY1#

L=300

 1
90980-07021

RY1#

L=280

 2
82202-95011

JY16,RY1#..T3

L=500

 1
90980-07051

RY1#

L=300

 1
82201-95011

JY16,RY1#

FOR FUEL GAGE

 1
82001 - CABLE, BOND, NO.1
82201-95010

RY10,12

FOR FUEL GAGE

 1
90980-07011

RY1#

L=300

 1
90980-07021

RY1#

L=280

 2
82202-95011

JY16,RY1#..T3

L=500

 1
90980-07051

RY1#

L=300

 1
82201-95011

JY16,RY1#

FOR FUEL GAGE

 1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-95013

RY1#..LHD

 1
82210-95031

RY1#..LHD

 1
82210-95047

RY1#..LHD

 1
82210-95038

RY1#..LHD

 1
82210-95057

RY1#..LHD

 1
82210C - FUSIBLE LINK
90982-08009

JY16,RY1#

 1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-95016

RY12

 1
82410-95020

RY12

 1
82410-95011

RY12

 1
82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1
55426-95010

JY16,RY1#

 1
82492 - PLATE, WIRING HARNESS PROTECTOR, NO.2
58183-95011

JY16,RY1#

REAR

 1
58184-95010

RY1#..LHD

FRONT

 1
58182-95014

RY10,12

FRONT

 1
82492 - PLATE, WIRING HARNESS PROTECTOR, NO.2
58183-95011

JY16,RY1#

REAR

 1
58184-95010

RY1#..LHD

FRONT

 1
58182-95014

RY10,12

FRONT

 1
82510 - WIRING ASSY, ROOF
82502-95012

JY16,RY1#

 1
82502-95014

JY16,RY1#

 1
82502-95010

JY16,RY1#

 1
Common parts
90159-30093
90179-06097
91111-40612
91111-40812
91656-40816
93385-16016
93510-14010
93510-14012
94110-40600
94110-40800
94511-00400
94511-00600
94511-00800
94612-10400
94612-10600
94612-10800
94613-10400

(7109-7902)

Click highlighted areas on diagram

diagram 5837992000 8271195011 9046104168 9046105020 9046106149 9046106149 9046106161 9046106649 9046108002 9046108009 9046108485 9046108717 9046108722 9046110833 9046110863 9046112834 9046112869 9046304079 9046304155 9046306097 9046306097 9046308026 9046308027 9046308030 9046308124 9046308307 9046315067 9046315298 9048001117 9048015007 9048018011 9048038250
Part # Description Qty Price
Common parts
58379-92000
82711-95011
90461-04168
90461-05020
90461-06149
90461-06161
90461-06649
90461-08002
90461-08009
90461-08485
90461-08717
90461-08722
90461-10833
90461-10863
90461-12834
90461-12869
90463-04079
90463-04155
90463-06097
90463-08026
90463-08027
90463-08030
90463-08124
90463-08307
90463-15067
90463-15298
90480-01117
90480-15007
90480-18011
90480-38250
