Toyota Toyoace RY12 FRONT TURN SIGNAL LAMP

Manufacturers Home
Toyota
EU
TOYOACE
RY12L-JRB (1971)
8103 - FRONT TURN SIGNAL LAMP

RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979

Engine 12R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

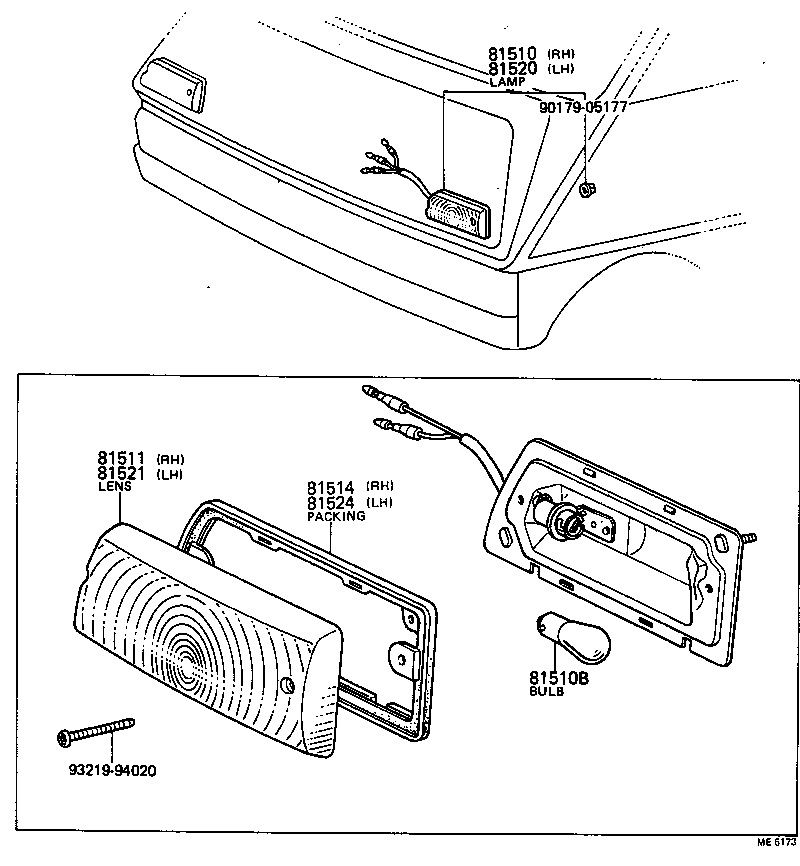

(7109-7309)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29215	JY16,RY1# CLEAR	09/1971 - 09/1973	1
81510-29206	JY16,RY1# AMBER	09/1973 - 02/1979	1
81510-29216	JY16,RY1# CLEAR	09/1973 - 02/1979	1
81510-29205	JY16,RY1# AMBER	09/1971 - 09/1973	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-21230	JY16,RY1# 12V 23/8W,12V 23/8W	09/1971 - 09/1973	2
90981-12004	JY16,RY1# 12V 8W	09/1973 - 02/1979	2
99132-11230	JY16,RY1# 12V 23W,12V 23W	09/1973 - 02/1979	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-25071	JY16,RY1# CLEAR	09/1973 - 02/1979	1
81511-25050	JY16,RY1# AMBER	09/1971 - 09/1973	1
81511-25070	JY16,RY1# CLEAR	09/1971 - 09/1973	1
81511-25051	JY16,RY1# AMBER	09/1973 - 02/1979	1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81512-25051	JY16,RY1#	09/1973 - 02/1979	1
81512-25050	JY16,RY1#	09/1971 - 09/1973	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29216	JY16,RY1# CLEAR	09/1973 - 02/1979	1
81520-29215	JY16,RY1# CLEAR	09/1971 - 09/1973	1
81520-29205	JY16,RY1# AMBER	09/1971 - 09/1973	1
81520-29206	JY16,RY1# AMBER	09/1973 - 02/1979	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-25041	JY16,RY1# CLEAR	09/1973 - 02/1979	1
81521-25040	JY16,RY1# CLEAR	09/1971 - 09/1973	1
81521-25021	JY16,RY1# AMBER	09/1973 - 02/1979	1
81521-25020	JY16,RY1# AMBER	09/1971 - 09/1973	1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81522-25020	JY16,RY1#	09/1971 - 09/1973	1
81522-25021	JY16,RY1#	09/1973 - 02/1979	1
Common parts
90179-05177
93219-94020

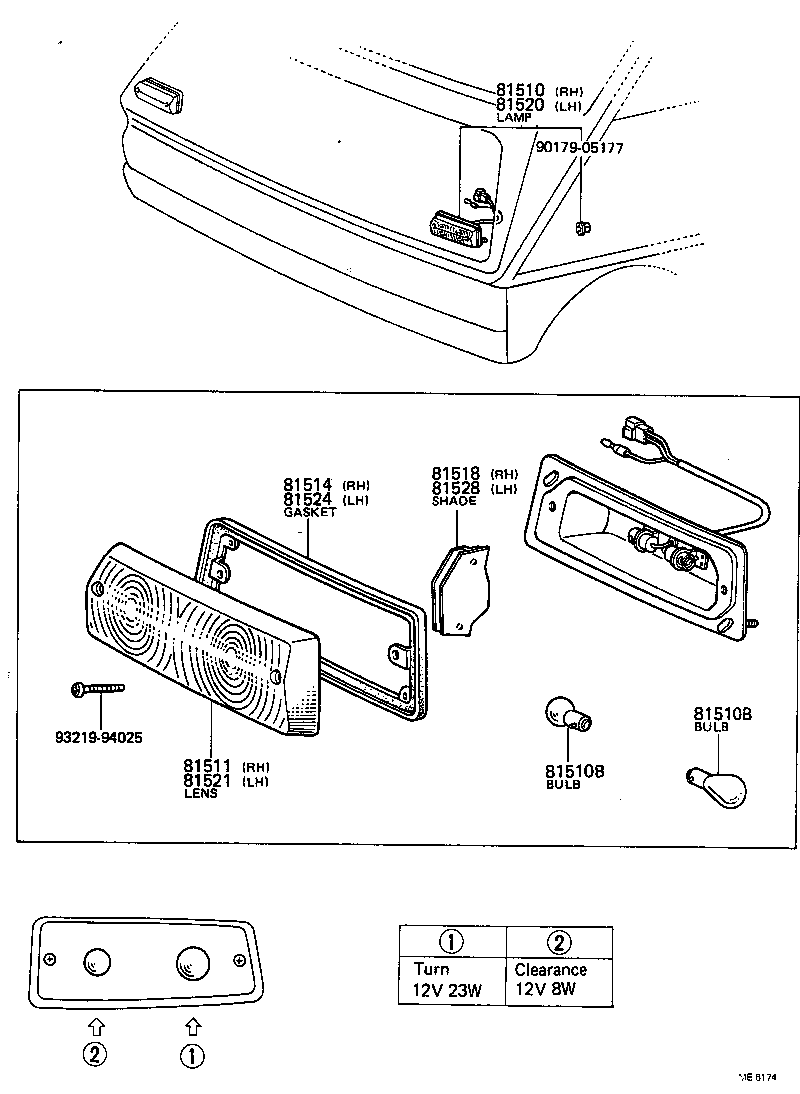

(7309-7902)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29215	JY16,RY1# CLEAR	09/1971 - 09/1973	1
81510-29206	JY16,RY1# AMBER	09/1973 - 02/1979	1
81510-29216	JY16,RY1# CLEAR	09/1973 - 02/1979	1
81510-29205	JY16,RY1# AMBER	09/1971 - 09/1973	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-21230	JY16,RY1# 12V 23/8W,12V 23/8W	09/1971 - 09/1973	2
90981-12004	JY16,RY1# 12V 8W	09/1973 - 02/1979	2
99132-11230	JY16,RY1# 12V 23W,12V 23W	09/1973 - 02/1979	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-21230	JY16,RY1# 12V 23/8W,12V 23/8W	09/1971 - 09/1973	2
90981-12004	JY16,RY1# 12V 8W	09/1973 - 02/1979	2
99132-11230	JY16,RY1# 12V 23W,12V 23W	09/1973 - 02/1979	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-25071	JY16,RY1# CLEAR	09/1973 - 02/1979	1
81511-25050	JY16,RY1# AMBER	09/1971 - 09/1973	1
81511-25070	JY16,RY1# CLEAR	09/1971 - 09/1973	1
81511-25051	JY16,RY1# AMBER	09/1973 - 02/1979	1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81512-25051	JY16,RY1#	09/1973 - 02/1979	1
81512-25050	JY16,RY1#	09/1971 - 09/1973	1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-25050	JY16,RY1#	09/1973 - 02/1979	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29216	JY16,RY1# CLEAR	09/1973 - 02/1979	1
81520-29215	JY16,RY1# CLEAR	09/1971 - 09/1973	1
81520-29205	JY16,RY1# AMBER	09/1971 - 09/1973	1
81520-29206	JY16,RY1# AMBER	09/1973 - 02/1979	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-25041	JY16,RY1# CLEAR	09/1973 - 02/1979	1
81521-25040	JY16,RY1# CLEAR	09/1971 - 09/1973	1
81521-25021	JY16,RY1# AMBER	09/1973 - 02/1979	1
81521-25020	JY16,RY1# AMBER	09/1971 - 09/1973	1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81522-25020	JY16,RY1#	09/1971 - 09/1973	1
81522-25021	JY16,RY1#	09/1973 - 02/1979	1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81527-25020	JY16,RY1#	09/1973 - 02/1979	1
Common parts
90179-05177
93219-94025
