RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7512-7611)

Click highlighted areas on diagram

diagram 65500 6553 65600 65611 65613 65617 6582792580 6582992830 6583492830 6583492830 6583892580 6584392830 66120 66122 66124 6615592830 9111140820 9451100800 9461111000 9538103015
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95028

RY12..T3

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95028

RY12..T3

 1
66120 - HINGE ASSY, SIDE GATE
66110-95015

JY16,RY1#..T3..TS

 10
Common parts
65827-92580
65829-92830
65834-92830
65838-92580
65843-92830
66155-92830
91111-40820
94511-00800
94611-11000
95381-03015
Linked diagrams
6553

(7109-7902)T3..TS

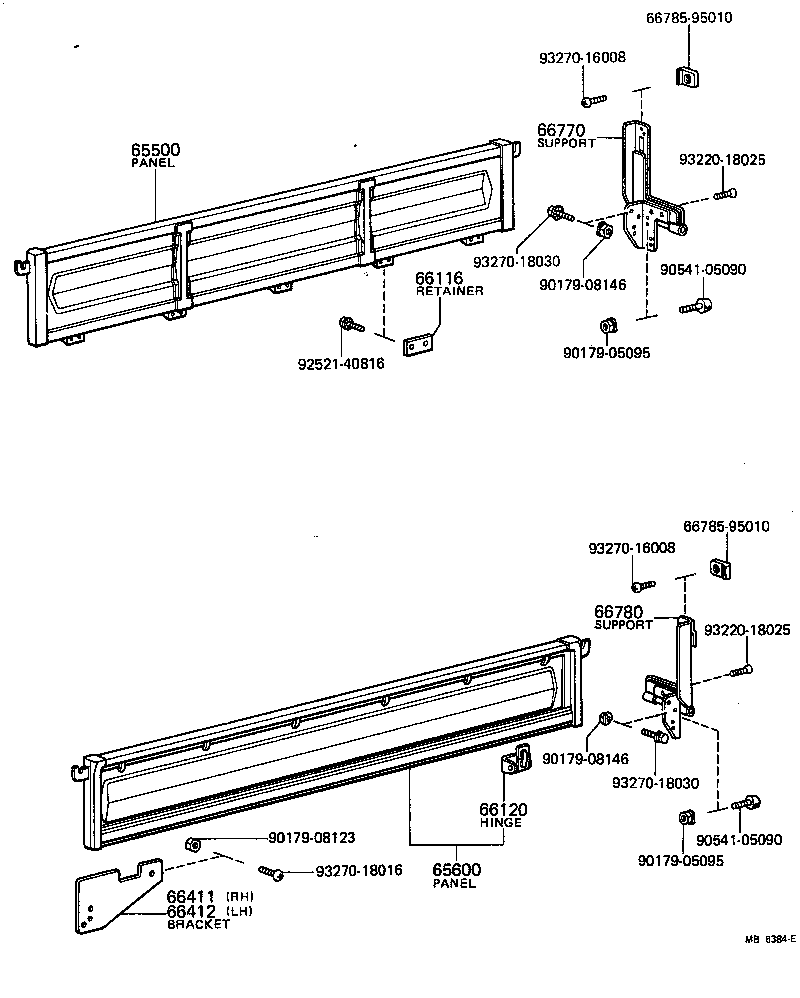

Click highlighted areas on diagram

diagram 65500 65600 66116 66120 66411 66412 66770 66780 6678595010 6678595010 9017905095 9017905095 9017908123 9017908146 9017908146 9054105090 9054105090 9252140816 9322018025 9322018025 9327016008 9327016008 9327018016 9327018030 9327018030
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95028

RY12..T3

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95028

RY12..T3

 1
66116 - RETAINER, GATE HINGE, LOWER
66115-95012

JY16,RY1#..T3

 16
66120 - HINGE ASSY, SIDE GATE
66110-95015

JY16,RY1#..T3..TS

 10
66411 - BRACKET, GUARD FRAME, RH
66411-95019

JY16,RY1#..T3..TS

 1
66412 - BRACKET, GUARD FRAME, LH
66412-95018

JY16,RY1#..T3..TS

 1
66770 - SUPPORT SUB-ASSY, SIDE GATE, RH
66770-95010

JY16,RY1#..T3..TS

 1
66780 - SUPPORT SUB-ASSY, SIDE GATE, LH
66780-95010

JY16,RY1#..T3..TS

 1
Common parts
66785-95010
90179-05095
90179-08123
90179-08146
90541-05090
92521-40816
93220-18025
93270-16008
93270-18016
93270-18030
