RY12L-JRB (1971)
Toyota Toyoace
Production
Sep 1971
-
Feb 1979
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7109-7902)T3..TS

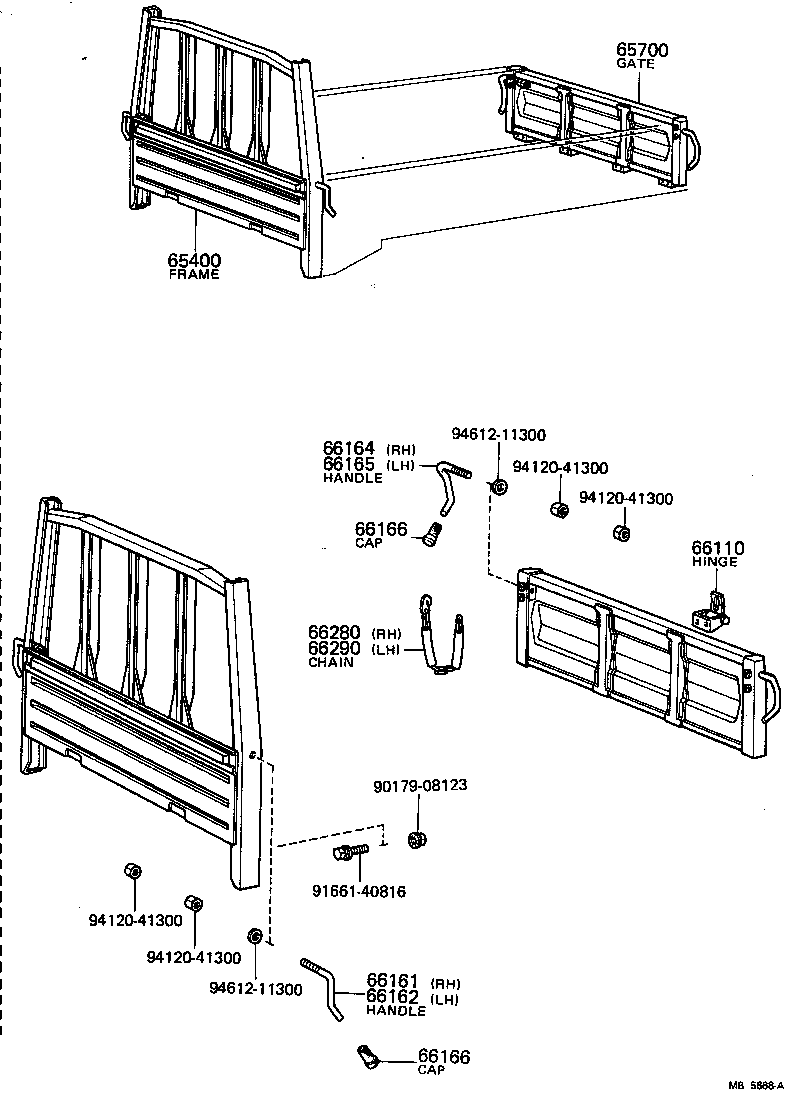

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65400-95024 |
RY10,12..T3 |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95021 |
JY16,RY1#..T3..TS |
1 | ||
| 65700-95022 |
JY16,RY1#..T3..TS |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-95016 |
JY16,RY1#..T3..TS |
4 | ||
| 66110-95015 |
JY16,RY1#..T3..TS |
4 | ||
| 66161 - HANDLE, SIDE GATE LATCH, RH | ||||
| 66161-95011 |
JY16,RY1#..T3..TS |
1 | ||
| 66162 - HANDLE, SIDE GATE LATCH, LH | ||||
| 66162-95010 |
JY16,RY1#..T3..TS |
1 | ||
| 66164 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66163-95010 |
JY16,RY1#..T3..TS |
1 | ||
| 66163-95011 |
JY16,RY1#..T3..TS |
1 | ||
| 66165 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66164-95010 |
JY16,RY1#..T3..TS |
1 | ||
| 66164-95011 |
JY16,RY1#..T3..TS |
1 | ||
| 66166 - CAP, GATE LATCH HANDLE | ||||
| 66165-95010 |
JY16,RY1#..T3..TS |
4 | ||
| 66166 - CAP, GATE LATCH HANDLE | ||||
| 66165-95010 |
JY16,RY1#..T3..TS |
4 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-95011 |
JY16,RY1#..T3..TS |
1 | ||
| 66280-95010 |
RY1# |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-95010 |
RY1# |
1 | ||
| 66280-95011 |
JY16,RY1#..T3..TS |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91661-40816 | ||||
| 94120-41300 | ||||
| 94612-11300 | ||||
