RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

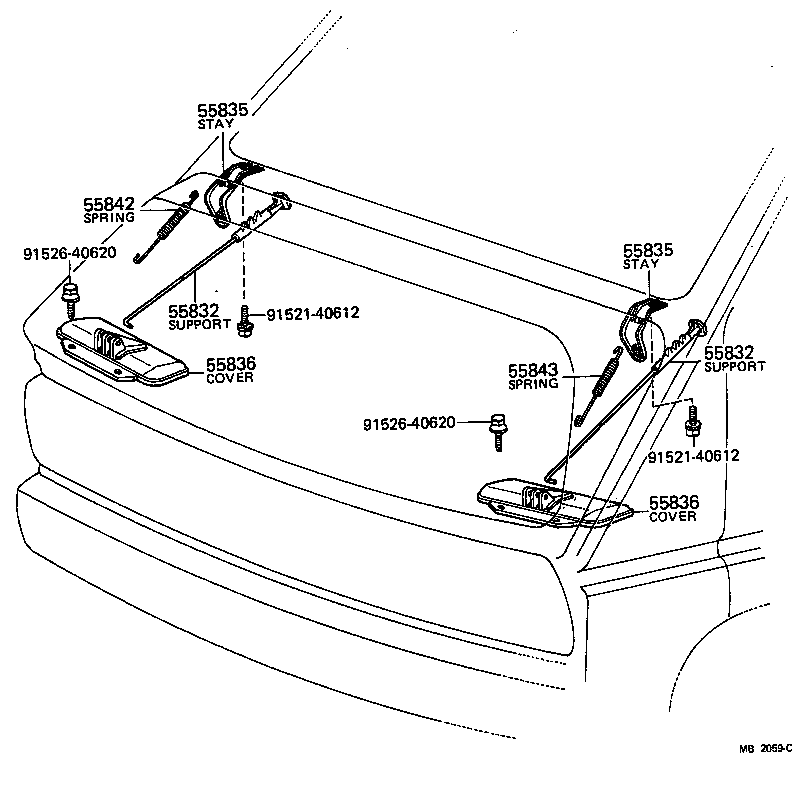

Click highlighted areas on diagram

diagram 55832 55832 55835 55835 55836 55836 55842 55843 9152140612 9152140612 9152640620 9152640620
Part # Description Qty Price
55832 - SUPPORT, FRONT VENTILATOR
55802-95021

JY16,RY1#

LH.

 1
55801-95021

JY16,RY1#

RH.

 1
55832 - SUPPORT, FRONT VENTILATOR
55802-95021

JY16,RY1#

LH.

 1
55801-95021

JY16,RY1#

RH.

 1
55835 - STAY, FRONT VENTILATOR CONTROL
55814-95020

JY16,RY1#

 2
55835 - STAY, FRONT VENTILATOR CONTROL
55814-95020

JY16,RY1#

 2
55836 - COVER, FRONT VENTILATOR OR FRONT VENTILATOR, LOWER
55803-95020

JY16,RY1#

 2
55836 - COVER, FRONT VENTILATOR OR FRONT VENTILATOR, LOWER
55803-95020

JY16,RY1#

 2
55842 - SPRING, FRONT VENTILATOR, RH
90506-12367

JY16,RY1#

 1
55843 - SPRING, FRONT VENTILATOR, LH
90506-12367

JY16,RY1#

 1
Common parts
91521-40612
91526-40620
