RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

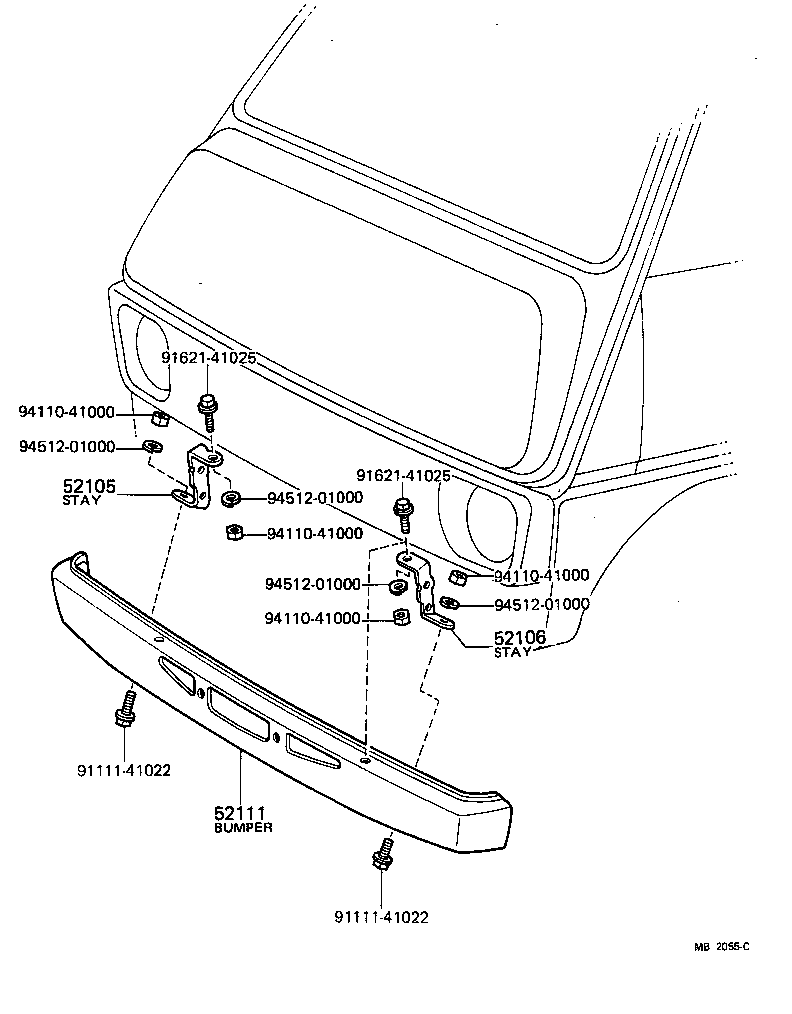

Click highlighted areas on diagram

diagram 52105 52106 52111 9111141022 9111141022 9162141025 9162141025 9411041000 9411041000 9411041000 9411041000 9451201000 9451201000 9451201000 9451201000
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52141-25020

RY10,12

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-25020

RY10,12

 1
52111 - BUMPER ASSY, FRONT
52110-95010

JY16,RY1#

 1
Common parts
91111-41022
91621-41025
94110-41000
94512-01000
