RY12L-JRB (1971)
Toyota Toyoace
Production
Sep 1971
-
Feb 1979
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7109-7902)RY1#

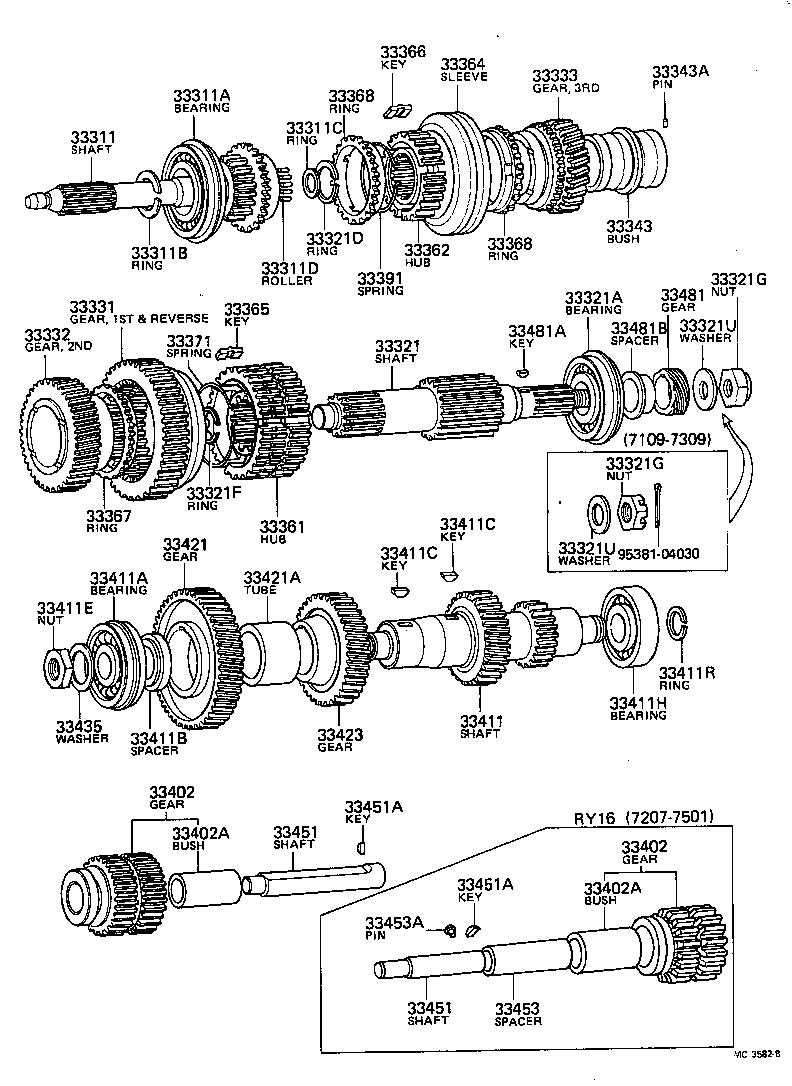

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-36013 |
RY1# N=18 |
1 | ||
| 33311-36012 |
RY1# N=18 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 97163-06306 |
RY1# 6306ZNRC3 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-28040 |
RY1# T=2.25-2.35 |
1 | ||
| 90520-28041 |
RY1# T=2.35-2.45 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90521-33006 |
RY1# |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06007 |
RY1# |
14 | ||
| 90361-06047 |
RY1# |
14 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35030 |
RY1# |
1 | ||
| 33321-35032 |
RY1# |
1 | ||
| 33321-35031 |
RY1# |
1 | ||
| 33321-35033 |
RY1# |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97153-06207 |
RY1# 6207NX1R |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-33011 |
RY1# T=2.30-2.42 |
1 | ||
| 90520-33010 |
RY1# T=2.43-2.57 |
1 | ||
| 33321F - RING, SHAFT SNAP (FOR CLUTCH HUB TO 1ST GEAR) | ||||
| 90520-46001 |
RY1# |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20061 |
JY16,RY1# |
1 | ||
| 90179-20061 |
RY1# |
1 | ||
| 90171-19035 |
RY1# |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20061 |
JY16,RY1# |
1 | ||
| 90179-20061 |
RY1# |
1 | ||
| 90171-19035 |
RY1# |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-19117 |
RY1# |
1 | ||
| 90201-20550 |
RY1# |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-19117 |
RY1# |
1 | ||
| 90201-20550 |
RY1# |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-35010 |
RY1# N=34 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-35011 |
RY1# N=33 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-35013 |
RY1# N=25 |
1 | ||
| 33343 - BUSH, 3RD & 2ND GEAR | ||||
| 33343-36013 |
RY1# |
1 | ||
| 33343-36012 |
RY1# |
1 | ||
| 33343A - PIN OR BALL (FOR 3RD & 2ND GEAR BUSH) | ||||
| 90250-05031 |
RY1# |
1 | ||
| 90360-06004 |
RY1# |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35010 |
RY1# |
1 | ||
| 33361-35011 |
RY1# |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35010 |
RY1# |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36040 |
RY1# |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35011 |
RY1# |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35011 |
RY1# |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-55010 |
RY1# |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35012 |
RY1# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35012 |
RY1# |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-55010 |
RY1# |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-35010 |
RY1# |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-35012 |
RY1# N=20 |
1 | ||
| 33402-35011 |
RY10,12 N=20 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-35012 |
RY1# N=20 |
1 | ||
| 33402-35011 |
RY10,12 N=20 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90999-73073 |
RY1# |
1 | ||
| 90999-71004 |
RY10,12 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90999-73073 |
RY1# |
1 | ||
| 90999-71004 |
RY10,12 |
1 | ||
| 33411 - COUNTERSHAFT | ||||
| 33411-35010 |
RY1# N=24,14 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97153-06305 |
RY1# |
1 | ||
| 97153-06305 |
JY16,RY1# |
1 | ||
| 33411B - SPACER(FOR COUNTER GEAR BEARING) | ||||
| 33431-35010 |
RY1# |
1 | ||
| 33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT) | ||||
| 90280-07003 |
RY1# |
2 | ||
| 33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT) | ||||
| 90280-07003 |
RY1# |
2 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90170-22056 |
RY1# |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 97113-06305 |
RY1# |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-24006 |
RY1# |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36010 |
RY1# N=39 |
1 | ||
| 33421A - TUBE(FOR COUNTER GEAR) | ||||
| 90560-42061 |
RY1# |
1 | ||
| 33423 - GEAR, COUNTER SHAFT 3RD SPEED | ||||
| 33423-35010 |
RY1# N=32 |
1 | ||
| 33435 - WASHER, COUNTER GEAR CASE SIDE THRUST | ||||
| 90214-25003 |
RY1# |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-35011 |
RY1# |
1 | ||
| 33451-35010 |
RY10,12 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-35011 |
RY1# |
1 | ||
| 33451-35010 |
RY10,12 |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03005 |
RY1# |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03005 |
RY1# |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-30010 |
RY12,16 N=4 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90280-03005 |
RY1# |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 33487-35020 |
RY1# |
1 | ||
| Common parts | ||||
| 95381-04030 | ||||
