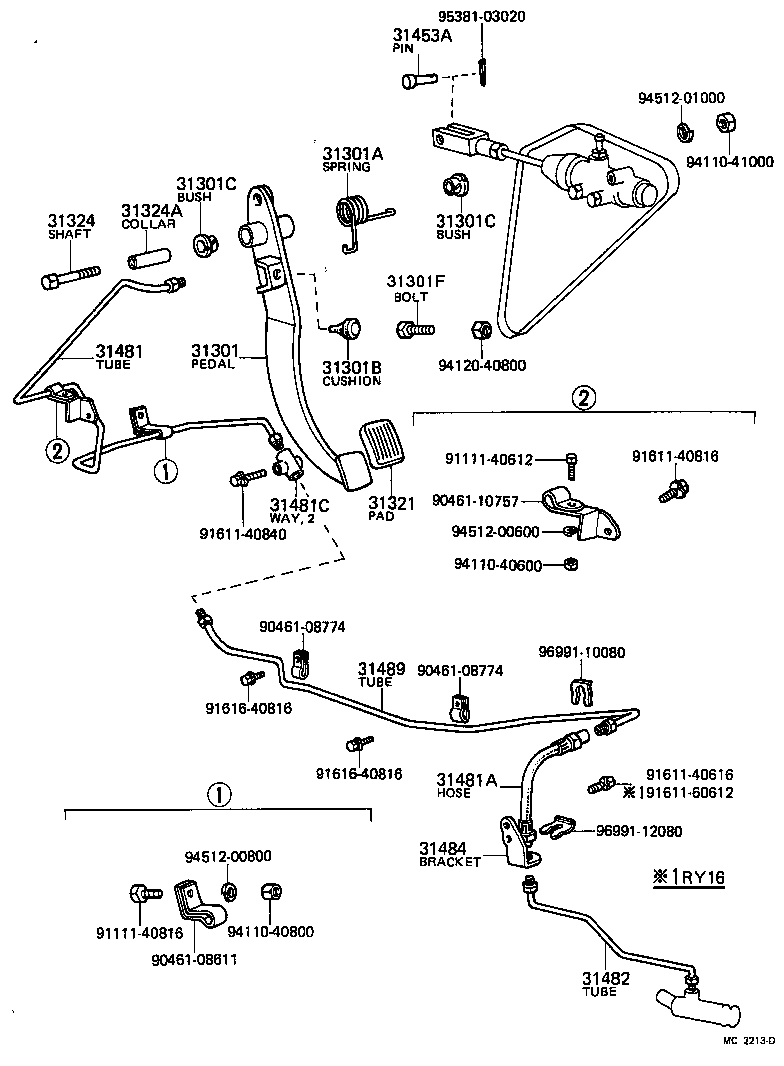

Toyota Toyoace RY12 CLUTCH PEDAL & FLEXIBLE HOSE

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-25010	JY16,RY1#	09/1971 - 02/1979	1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35131	JY16,RY1#	09/1971 - 02/1979	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008	JY16,RY1#	09/1971 - 02/1979	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	JY16,RY1#	09/1971 - 02/1979	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	JY16,RY1#	09/1971 - 02/1979	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50836	RY10,12 8-1.25PX36-34	09/1971 - 02/1979	1
31321 - PAD, CLUTCH PEDAL
31321-25020	JY16,RY1#	09/1971 - 02/1979	1
31324 - SHAFT, CLUTCH PEDAL
91111-51080	JY16,RY1#	09/1971 - 02/1979	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	JY16,RY1#	09/1971 - 02/1979	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-10015	JY16,RY1#	09/1971 - 02/1979	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-25060	JY16,RY1#..LHD	09/1971 - 02/1979	1
31481A - HOSE, CLUTCH, NO.1
90947-02173	RY1# L=280	09/1971 - 02/1979	1
31481C - UNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
90412-12053	JY16,RY1#..LHD	09/1971 - 02/1979	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25010	RY10,12	09/1971 - 02/1979	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35040	RY10,12	09/1971 - 02/1979	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-25020	RY1#..LHD	09/1971 - 02/1979	1
Common parts
90461-08611
90461-08774
90461-10757
91111-40612
91111-40816
91611-40616
91611-40816
91611-40840
91611-60612
91616-40816
94110-40600
94110-40800
94110-41000
94120-40800
94512-00600
94512-00800
94512-01000
95381-03020
96991-10080
96991-12080

RY12L-JRB (1971)

(7109-7902)RY1#..LHD
