RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7309)12R

Click highlighted areas on diagram

diagram 19907 19907 23100A 23100A 23100H 23100H 23801 23801 23841 23841 23841 23841 23842 23842 23845 23845 9046116860 9046116860 9165140820 9165640820
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
95411-10195

12R..RY10,12

H,L=750

 1
90445-07106

12R..RY10,12

L=730

 1
19907 - HOSE, VACUUM, NO.1
95411-10195

12R..RY10,12

H,L=750

 1
90445-07106

12R..RY10,12

L=730

 1
23100A - HOSE, FUEL
95324-07034

12R..RY10,12

 1
95331-06034

12R..RY10,12

 1
95332-06034

12R..RY10,12

 1
95331-08034

12R..RY10,12

 1
23100A - HOSE, FUEL
95324-07034

12R..RY10,12

 1
95331-06034

12R..RY10,12

 1
95332-06034

12R..RY10,12

 1
95331-08034

12R..RY10,12

 1
23100H - CLIP(FOR FUEL HOSE)
90467-13130

12R,5R..RY1#

 2
96132-30800

12R..RY10,12

 2
96132-30600

12R..RY10,12

 2
90467-13138

12R..RY10,12

 2
23100H - CLIP(FOR FUEL HOSE)
90467-13130

12R,5R..RY1#

 2
96132-30800

12R..RY10,12

 2
96132-30600

12R..RY10,12

 2
90467-13138

12R..RY10,12

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-31040

12R..RY10,12

 1
23801-31042

12R..RY10,12

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-31040

12R..RY10,12

 1
23801-31042

12R..RY10,12

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-04007

12R..RY10,12

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-04007

12R..RY10,12

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-04007

12R..RY10,12

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-04007

12R..RY10,12

 2
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-40010

12R..RY10,12

 1
23842-31010

12R..RY10,12

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-40010

12R..RY10,12

 1
23842-31010

12R..RY10,12

 1
23845 - INSULATOR, FUEL PIPE
23845-20010

12R..RY10,12

 1
23845 - INSULATOR, FUEL PIPE
23845-20010

12R..RY10,12

 1
Common parts
90461-16860
91651-40820
91656-40820

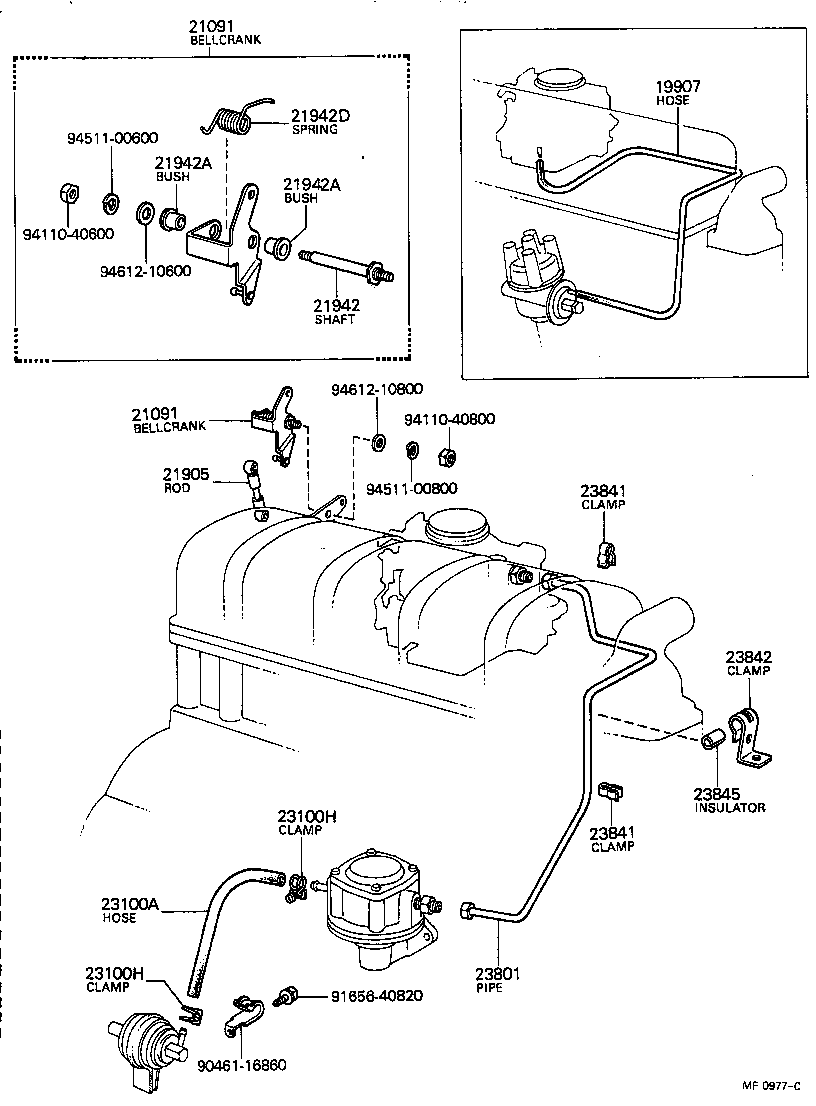

(7309-7511)12R

Click highlighted areas on diagram

diagram 19907 21091 21091 21905 21942 21942A 21942A 21942D 23100A 23100H 23100H 23801 23841 23841 23842 23845 9046116860 9165640820 9411040600 9411040800 9451100600 9451100800 9461210600 9461210800
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
95411-10195

12R..RY10,12

H,L=750

 1
90445-07106

12R..RY10,12

L=730

 1
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-31011

12R..RY10,12

 1
21091-31010

12R..RY10,12

 1
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-31011

12R..RY10,12

 1
21091-31010

12R..RY10,12

 1
21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING
78104-20041

12R..RY10,12

 1
21942 - SHAFT, ACCELERATOR LINK
21941-31010

12R..RY10,12

 1
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R..RY10,12

 2
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R..RY10,12

 2
21942D - SPRING(FOR ACCELERATOR LINK SHAFT)
90508-18394

12R..RY10,12

 1
90508-20001

12R..RY10,12

 1
90508-20450

12R..RY10,12

 1
23100A - HOSE, FUEL
95324-07034

12R..RY10,12

 1
95331-06034

12R..RY10,12

 1
95332-06034

12R..RY10,12

 1
95331-08034

12R..RY10,12

 1
23100H - CLIP(FOR FUEL HOSE)
90467-13130

12R,5R..RY1#

 2
96132-30800

12R..RY10,12

 2
96132-30600

12R..RY10,12

 2
90467-13138

12R..RY10,12

 2
23100H - CLIP(FOR FUEL HOSE)
90467-13130

12R,5R..RY1#

 2
96132-30800

12R..RY10,12

 2
96132-30600

12R..RY10,12

 2
90467-13138

12R..RY10,12

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-31040

12R..RY10,12

 1
23801-31042

12R..RY10,12

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-04007

12R..RY10,12

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-04007

12R..RY10,12

 2
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-40010

12R..RY10,12

 1
23842-31010

12R..RY10,12

 1
23845 - INSULATOR, FUEL PIPE
23845-20010

12R..RY10,12

 1
Common parts
90461-16860
91656-40820
94110-40600
94110-40800
94511-00600
94511-00800
94612-10600
94612-10800

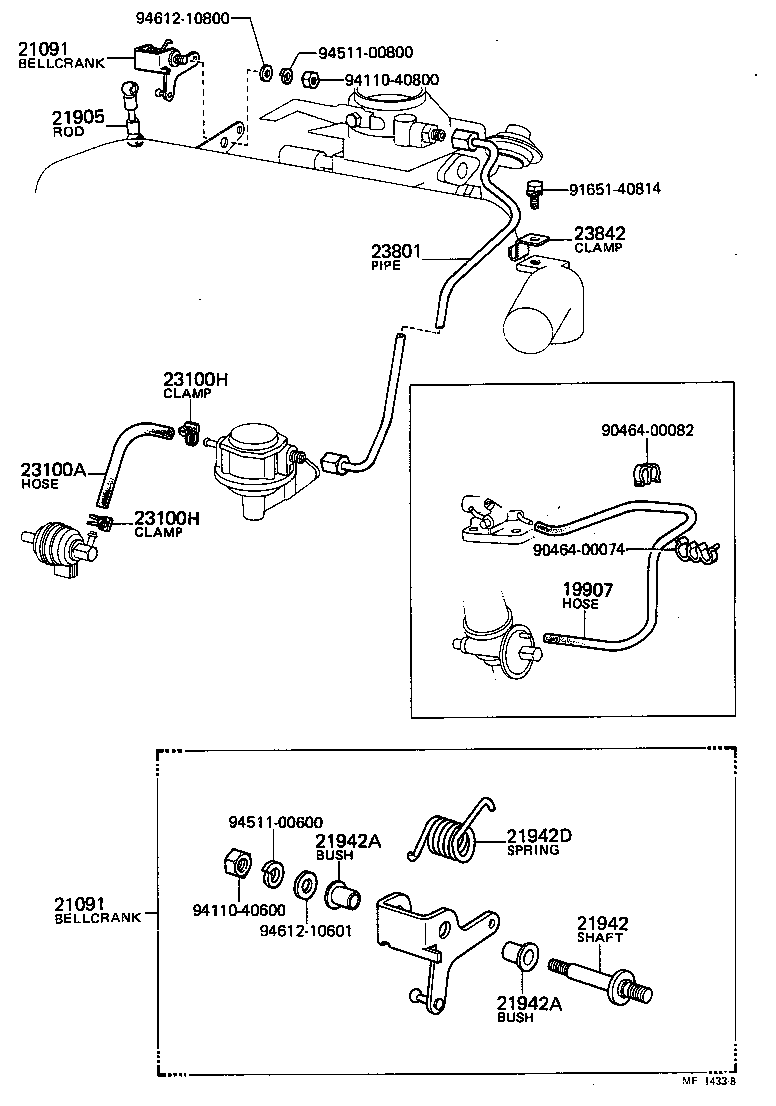

(7511-7902)12R

Click highlighted areas on diagram

diagram 19907 21091 21091 21905 21942 21942A 21942A 21942D 23100A 23100H 23100H 23801 23842 9046400074 9046400082 9165140814 9411040600 9411040800 9451100600 9451100800 9461210601 9461210800
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
95411-10195

12R..RY10,12

H,L=750

 1
90445-07106

12R..RY10,12

L=730

 1
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-31011

12R..RY10,12

 1
21091-31010

12R..RY10,12

 1
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-31011

12R..RY10,12

 1
21091-31010

12R..RY10,12

 1
21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING
78104-20041

12R..RY10,12

 1
21942 - SHAFT, ACCELERATOR LINK
21941-31010

12R..RY10,12

 1
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R..RY10,12

 2
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R..RY10,12

 2
21942D - SPRING(FOR ACCELERATOR LINK SHAFT)
90508-18394

12R..RY10,12

 1
90508-20001

12R..RY10,12

 1
90508-20450

12R..RY10,12

 1
23100A - HOSE, FUEL
95324-07034

12R..RY10,12

 1
95331-06034

12R..RY10,12

 1
95332-06034

12R..RY10,12

 1
95331-08034

12R..RY10,12

 1
23100H - CLIP(FOR FUEL HOSE)
90467-13130

12R,5R..RY1#

 2
96132-30800

12R..RY10,12

 2
96132-30600

12R..RY10,12

 2
90467-13138

12R..RY10,12

 2
23100H - CLIP(FOR FUEL HOSE)
90467-13130

12R,5R..RY1#

 2
96132-30800

12R..RY10,12

 2
96132-30600

12R..RY10,12

 2
90467-13138

12R..RY10,12

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-31040

12R..RY10,12

 1
23801-31042

12R..RY10,12

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-40010

12R..RY10,12

 1
23842-31010

12R..RY10,12

 1
Common parts
90464-00074
90464-00082
91651-40814
94110-40600
94110-40800
94511-00600
94511-00800
94612-10601
94612-10800
