Toyota Toyoace RY12 ALTERNATOR - JDM Part Detective

RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979

Engine 12R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

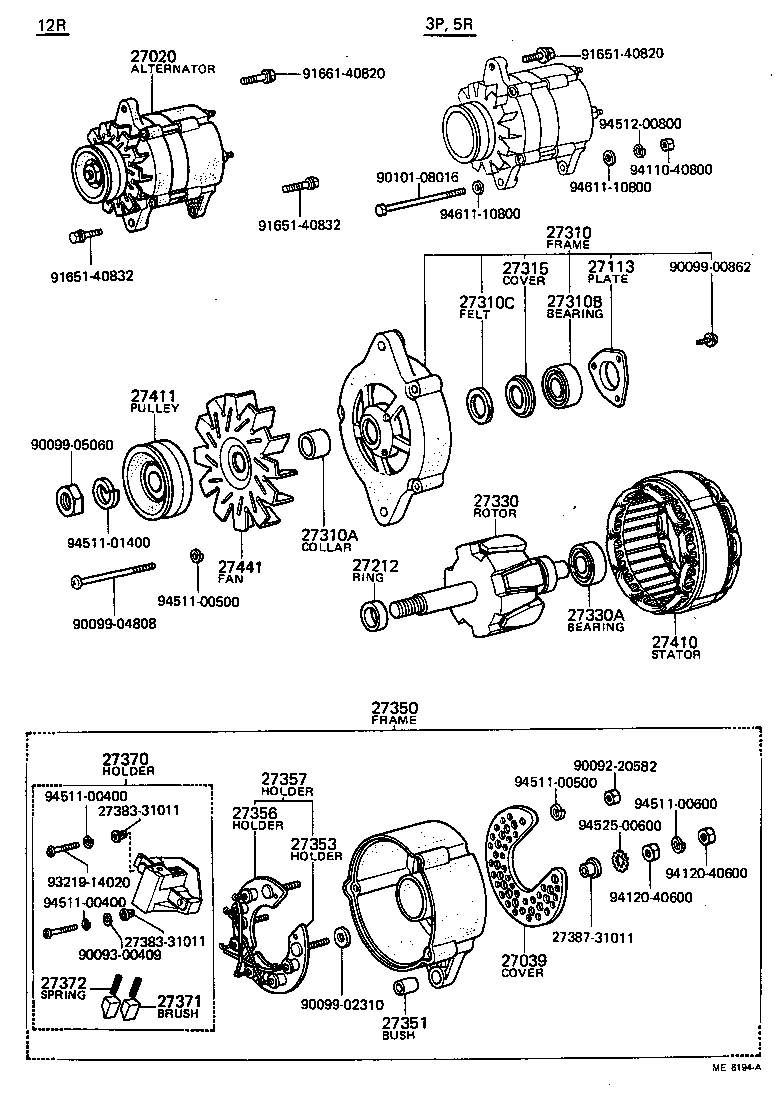

(7109-7305)12R,5R

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-31033	12R..RY10,12 12V 30A	06/1972 - 09/1972	1
27020-31050	12R..RY10,12 12V 30A	09/1972 - 05/1973	1
27020-31032	12R..RY1# 12V 30A	09/1971 - 06/1972	1
27020-31051	12R..RY10,12 12V 30A	05/1973 - 02/1979	1
27039 - COVER, ALTERNATOR REAR END
27039-24030	12R,5R..RY1#	09/1972 - 05/1973	1
27039-22012	12R..RY10,12	09/1971 - 09/1972	1
27039-11014	12R,5R..RY1#	05/1973 - 02/1979	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27113-10012	12R,5R..RY1#	09/1971 - 02/1979	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068	12R,5R..RY1#	09/1971 - 02/1979	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012	12R,5R..RY1#	09/1971 - 02/1979	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19191	12R,5R..RY1#	09/1971 - 09/1975	1
90099-19191	12R..RY10,12	09/1975 - 02/1979	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012	12R,5R..RY1# 6202Z	09/1971 - 02/1979	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009	12R,5R..RY1#	09/1971 - 02/1979	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-39010	12R,5R..RY1#	09/1971 - 02/1979	1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012	12R,5R..RY1#	09/1971 - 02/1979	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201	12R,5R..RY1# 6201Z	09/1971 - 02/1979	1
27350 - FRAME ASSY, RECTIFIER END
27350-22013	12R..RY10,12	09/1971 - 09/1972	1
27350-31050	12R,5R..RY1#	09/1972 - 05/1973	1
27350-31052	12R..RY10,12	09/1975 - 02/1979	1
27350-31052	12R,5R..RY1#	12/1973 - 09/1975	1
27350-31051	12R,5R..RY1#	05/1973 - 12/1973	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-22010	12R,5R..RY1#	09/1971 - 12/1973	1
27351-24020	12R,5R..RY1#	12/1973 - 02/1979	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-24030	12R,5R..RY1#	09/1972 - 05/1973	1
27353-22012	12R..RY10,12	09/1971 - 09/1972	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-22011	12R..RY10,12	09/1971 - 09/1972	1
27356-24030	12R,5R..RY1#	09/1972 - 05/1973	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22012	12R..RY10,12	09/1971 - 09/1972	1
27357-24030	12R,5R..RY1#	09/1972 - 05/1973	1
27357-11014	12R,5R..RY1#	05/1973 - 02/1979	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-22010	12R..RY10,12	09/1971 - 09/1972	1
27370-40061	12R,5R..RY1#	05/1973 - 09/1975	1
27370-24030	12R,5R..RY1#	09/1972 - 05/1973	1
27370-40061	12R..RY10,12	09/1975 - 02/1979	1
27371 - BRUSH, ALTERNATOR
27371-31011	12R,2J,5R..JY16,RY1#	09/1971 - 02/1979	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	12R,2J,5R..JY16,RY1#	09/1971 - 02/1979	2
27410 - STATOR ASSY, ALTERNATOR
27410-31050	12R,5R..RY1#	09/1972 - 05/1973	1
27410-22010	12R..RY10,12	09/1971 - 09/1972	1
27410-11014	12R,5R..RY1#	05/1973 - 02/1979	1
27411 - PULLEY, ALTERNATOR
27411-11011	12R..RY1#	09/1971 - 06/1972	1
27411-31033	12R..RY10,12	06/1972 - 02/1979	1
27441 - FAN, ALTERNATOR
27441-22010	12R..RY10,12	09/1975 - 02/1979	1
27441-22010	12R,5R..RY1#	09/1971 - 09/1975	1
Common parts
27383-31011
27387-31011
90092-20582
90093-00409
90099-00862
90099-02310
90099-04808
90099-05060
90101-08016
91651-40820
91651-40832
91661-40820
93219-14020
94110-40800
94120-40600
94511-00400
94511-00500
94511-00600
94511-01400
94512-00800
94525-00600
94611-10800

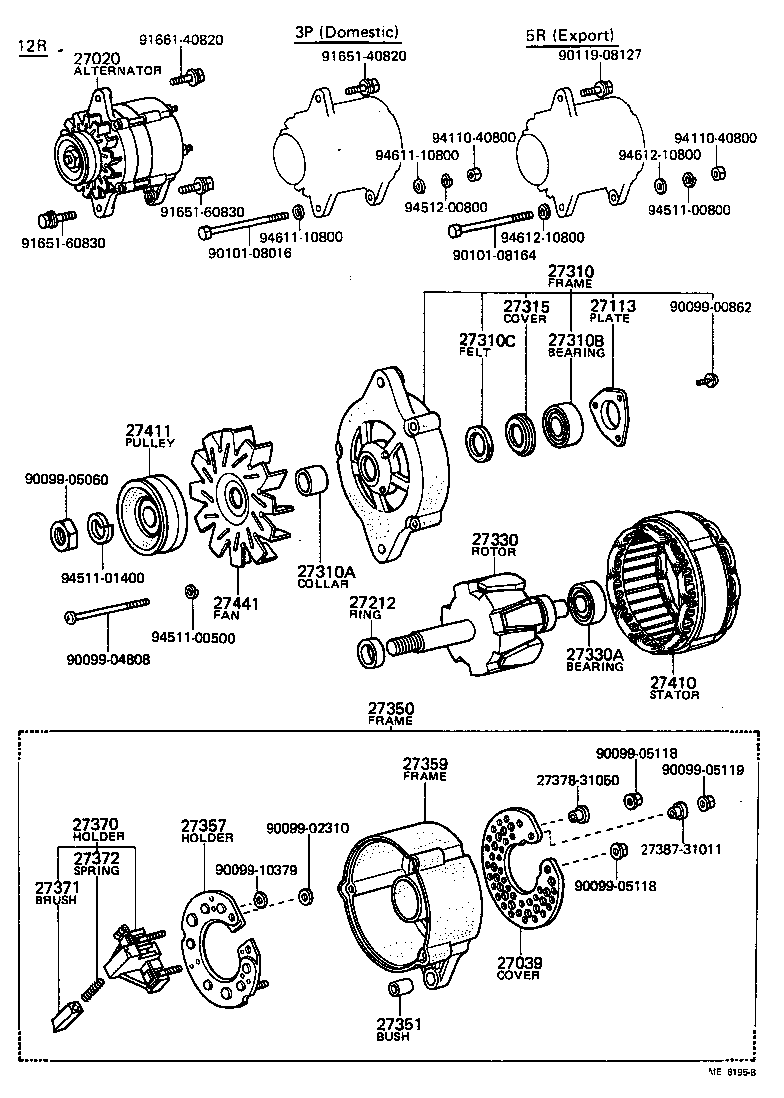

(7305-7902)12R,5R

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-31033	12R..RY10,12 12V 30A	06/1972 - 09/1972	1
27020-31050	12R..RY10,12 12V 30A	09/1972 - 05/1973	1
27020-31032	12R..RY1# 12V 30A	09/1971 - 06/1972	1
27020-31051	12R..RY10,12 12V 30A	05/1973 - 02/1979	1
27039 - COVER, ALTERNATOR REAR END
27039-24030	12R,5R..RY1#	09/1972 - 05/1973	1
27039-22012	12R..RY10,12	09/1971 - 09/1972	1
27039-11014	12R,5R..RY1#	05/1973 - 02/1979	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27113-10012	12R,5R..RY1#	09/1971 - 02/1979	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068	12R,5R..RY1#	09/1971 - 02/1979	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012	12R,5R..RY1#	09/1971 - 02/1979	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19191	12R,5R..RY1#	09/1971 - 09/1975	1
90099-19191	12R..RY10,12	09/1975 - 02/1979	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012	12R,5R..RY1# 6202Z	09/1971 - 02/1979	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009	12R,5R..RY1#	09/1971 - 02/1979	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-39010	12R,5R..RY1#	09/1971 - 02/1979	1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012	12R,5R..RY1#	09/1971 - 02/1979	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201	12R,5R..RY1# 6201Z	09/1971 - 02/1979	1
27350 - FRAME ASSY, RECTIFIER END
27350-22013	12R..RY10,12	09/1971 - 09/1972	1
27350-31050	12R,5R..RY1#	09/1972 - 05/1973	1
27350-31052	12R..RY10,12	09/1975 - 02/1979	1
27350-31052	12R,5R..RY1#	12/1973 - 09/1975	1
27350-31051	12R,5R..RY1#	05/1973 - 12/1973	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-22010	12R,5R..RY1#	09/1971 - 12/1973	1
27351-24020	12R,5R..RY1#	12/1973 - 02/1979	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22012	12R..RY10,12	09/1971 - 09/1972	1
27357-24030	12R,5R..RY1#	09/1972 - 05/1973	1
27357-11014	12R,5R..RY1#	05/1973 - 02/1979	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-31050	12R,5R..RY1#	05/1973 - 02/1979	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-22010	12R..RY10,12	09/1971 - 09/1972	1
27370-40061	12R,5R..RY1#	05/1973 - 09/1975	1
27370-24030	12R,5R..RY1#	09/1972 - 05/1973	1
27370-40061	12R..RY10,12	09/1975 - 02/1979	1
27371 - BRUSH, ALTERNATOR
27371-31011	12R,2J,5R..JY16,RY1#	09/1971 - 02/1979	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	12R,2J,5R..JY16,RY1#	09/1971 - 02/1979	2
27410 - STATOR ASSY, ALTERNATOR
27410-31050	12R,5R..RY1#	09/1972 - 05/1973	1
27410-22010	12R..RY10,12	09/1971 - 09/1972	1
27410-11014	12R,5R..RY1#	05/1973 - 02/1979	1
27411 - PULLEY, ALTERNATOR
27411-11011	12R..RY1#	09/1971 - 06/1972	1
27411-31033	12R..RY10,12	06/1972 - 02/1979	1
27441 - FAN, ALTERNATOR
27441-22010	12R..RY10,12	09/1975 - 02/1979	1
27441-22010	12R,5R..RY1#	09/1971 - 09/1975	1
Common parts
27378-31050
27387-31011
90099-00862
90099-02310
90099-04808
90099-05060
90099-05118
90099-05119
90099-10379
90101-08016
90101-08164
90119-08127
91651-40820
91651-60830
91661-40820
94110-40800
94511-00500
94511-00800
94511-01400
94512-00800
94611-10800
94612-10800
