RY12L-JRB (1971)
Toyota Toyoace

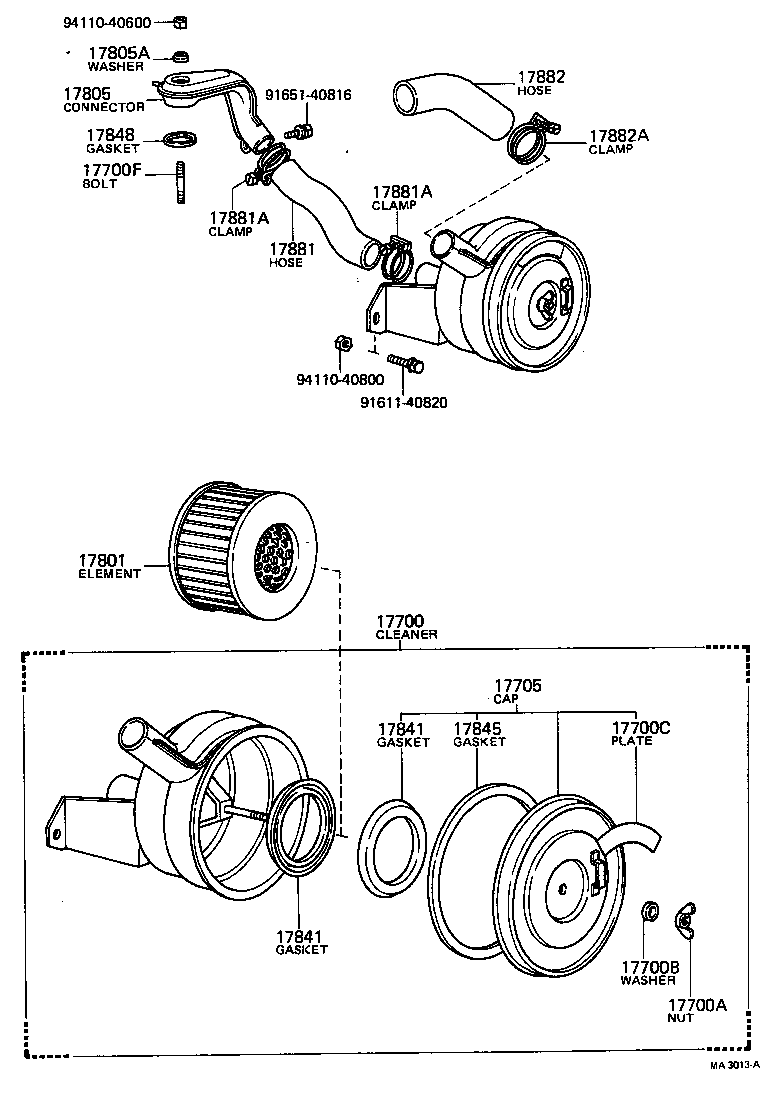

(7109-7708)12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-31340 |
12R..RY10,12 |
1 | ||
| 17700-31210 |
12R,5R..RY1# |
1 | ||
| 17700-23060 |
12R..RY10,12 |
1 | ||
| 17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL) | ||||
| 90917-07037 |
12R,5R..RY1# |
1 | ||
| 90917-07059 |
12R,5R..RY1# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
12R..RY10,12 L=62,S=12&25 |
1 | ||
| 90116-06309 |
12R..RY10,12 L=66,S=12&25 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-23030 |
12R,5R..RY1# |
1 | ||
| 17705-31060 |
12R..RY10,12 |
1 | ||
| 17705-23050 |
12R,5R..RY1# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23020 |
12R,5R..RY1# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17861-31032 |
12R..RY1# W/PCV |
1 | ||
| 17861-31043 |
12R..RY10,12 L/PCV |
1 | ||
| 17861-31033 |
12R..RY10,12 W/PCV |
1 | ||
| 17861-31042 |
12R..RY1# L/PCV |
1 | ||
| 17861-31034 |
12R..RY10,12 W/PCV |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-06001 |
12R..RY10,12 |
1 | ||
| 90210-06023 |
12R,5R..RY1# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31010 |
12R,5R..RY1# CASE SIDE |
1 | ||
| 17841-20020 |
12R,5R..RY1# CAP SIDE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31010 |
12R,5R..RY1# CASE SIDE |
1 | ||
| 17841-20020 |
12R,5R..RY1# CAP SIDE |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-23030 |
12R,5R..RY1# |
1 | ||
| 17845-31030 |
12R..RY10,12 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
12R..RY10,12 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-31011 |
12R..RY10,12 |
1 | ||
| 17882-31010 |
12R..RY10,12 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10560 |
12R,5R..RY1# ID=56 |
2 | ||
| 96111-10580 |
12R..RY10,12 ID=58 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10560 |
12R,5R..RY1# ID=56 |
2 | ||
| 96111-10580 |
12R..RY10,12 ID=58 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 90910-06033 |
12R,5R..RY1# |
1 | ||
| 90910-06029 |
12R,5R..RY1# |
1 | ||
| 90910-04009 |
12R..RY10,12 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10560 |
12R,5R..RY1# ID=56 |
1 | ||
| 96111-10580 |
12R..RY10,12 ID=58 |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||

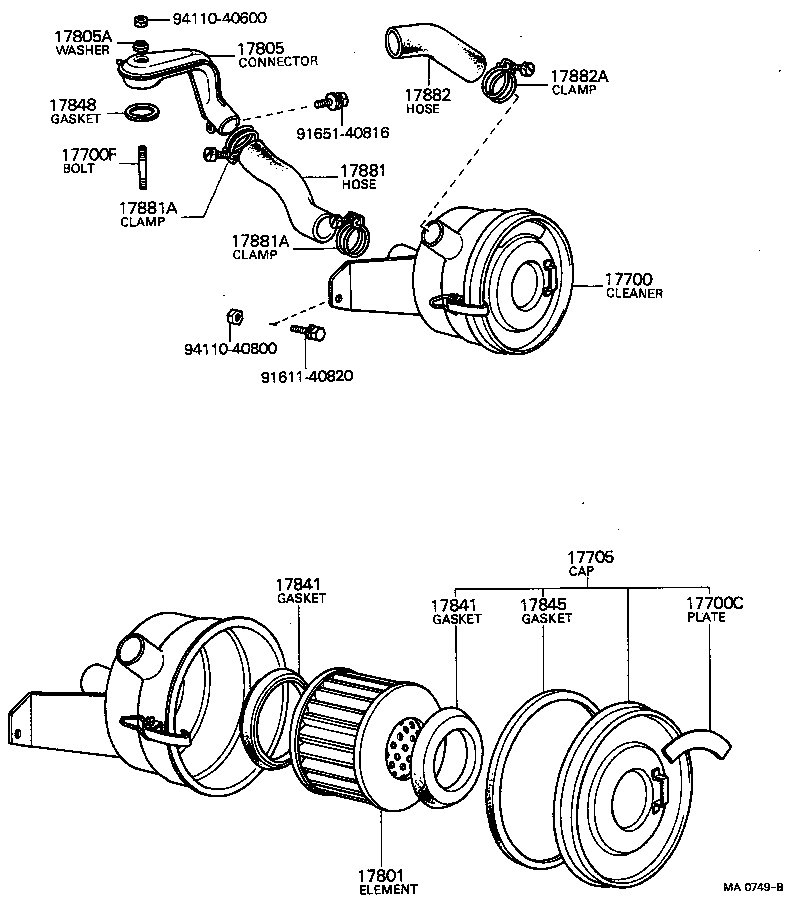

(7708-7902)12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-31340 |
12R..RY10,12 |
1 | ||
| 17700-31210 |
12R,5R..RY1# |
1 | ||
| 17700-23060 |
12R..RY10,12 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
12R..RY10,12 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09026 |
12R..RY10,12 |
1 | ||
| 17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL) | ||||
| 90917-07037 |
12R,5R..RY1# |
1 | ||
| 90917-07059 |
12R,5R..RY1# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
12R..RY10,12 L=62,S=12&25 |
1 | ||
| 90116-06309 |
12R..RY10,12 L=66,S=12&25 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-23030 |
12R,5R..RY1# |
1 | ||
| 17705-31060 |
12R..RY10,12 |
1 | ||
| 17705-23050 |
12R,5R..RY1# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23020 |
12R,5R..RY1# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17861-31032 |
12R..RY1# W/PCV |
1 | ||
| 17861-31043 |
12R..RY10,12 L/PCV |
1 | ||
| 17861-31033 |
12R..RY10,12 W/PCV |
1 | ||
| 17861-31042 |
12R..RY1# L/PCV |
1 | ||
| 17861-31034 |
12R..RY10,12 W/PCV |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-06001 |
12R..RY10,12 |
1 | ||
| 90210-06023 |
12R,5R..RY1# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31010 |
12R,5R..RY1# CASE SIDE |
1 | ||
| 17841-20020 |
12R,5R..RY1# CAP SIDE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31010 |
12R,5R..RY1# CASE SIDE |
1 | ||
| 17841-20020 |
12R,5R..RY1# CAP SIDE |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-23030 |
12R,5R..RY1# |
1 | ||
| 17845-31030 |
12R..RY10,12 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
12R..RY10,12 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-31011 |
12R..RY10,12 |
1 | ||
| 17882-31010 |
12R..RY10,12 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10560 |
12R,5R..RY1# ID=56 |
2 | ||
| 96111-10580 |
12R..RY10,12 ID=58 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10560 |
12R,5R..RY1# ID=56 |
2 | ||
| 96111-10580 |
12R..RY10,12 ID=58 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 90910-06033 |
12R,5R..RY1# |
1 | ||
| 90910-06029 |
12R,5R..RY1# |
1 | ||
| 90910-04009 |
12R..RY10,12 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10560 |
12R,5R..RY1# ID=56 |
1 | ||
| 96111-10580 |
12R..RY10,12 ID=58 |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
