Toyota Toyoace RY12 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
EU
TOYOACE
RY12L-JRB (1971)
1603 - RADIATOR & WATER OUTLET

RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979

Engine 12R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

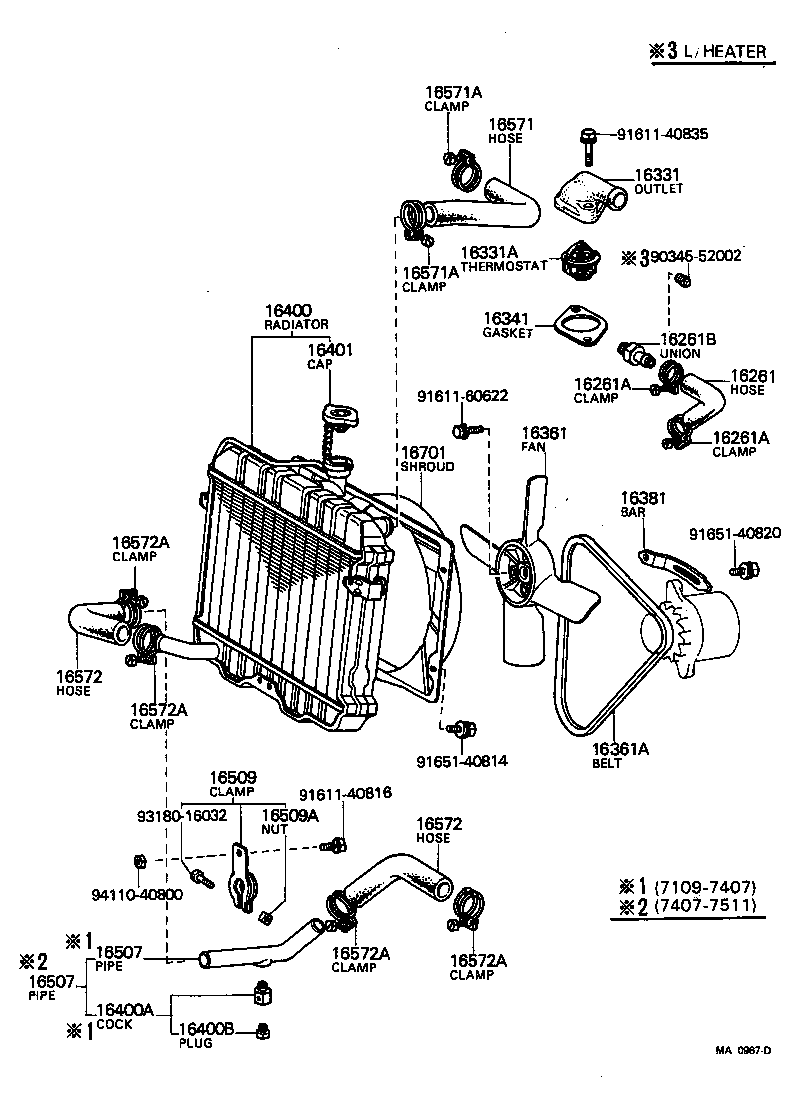

(7109-7511)12R

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-31010	12R..RY10,12	09/1971 - 11/1975	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90460-23022	12R,5R..RY1#	09/1971 - 11/1974	2
96112-10240	12R,5R..RY1#	11/1974 - 11/1975	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90460-23022	12R,5R..RY1#	09/1971 - 11/1974	2
96112-10240	12R,5R..RY1#	11/1974 - 11/1975	2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-52072	12R..RY10,12	09/1971 - 11/1975	1
16331 - OUTLET, WATER
16331-31031	12R..RY10,12	11/1975 - 02/1979	1
16331-31010	12R..RY10,12	09/1971 - 11/1975	1
16331-31020	12R..RY10,12 CAST IRON BODY	09/1971 - 09/1973	1
16331A - THERMOSTAT
90916-03016	12R..RY10,12 WAX 82-95 FUJI-THOMSON	09/1971 - 08/1972	1
90916-03024	12R..RY10,12 WAX 75-85 KUZEH	09/1971 - 09/1973	1
90916-03034	12R..RY10,12 WAX 82-95 FUJI-THOMSON	09/1973 - 02/1979	1
90916-03021	12R..RY10,12 WAX 82-95 KUZEH	09/1971 - 09/1973	1
90916-03037	12R,5R..RY1# WAX 82-95 KUZEH	09/1973 - 02/1979	1
90916-03020	12R..RY10,12 WAX 82-95 FUJI-THOMSON	08/1972 - 09/1973	1
16341 - GASKET, WATER OUTLET
16341-38010	12R,5R..RY1#	09/1978 - 02/1979	1
16341-49010	12R,5R..RY1#	01/1977 - 09/1978	1
16341-49010	12R..RY10,12	09/1971 - 01/1977	1
16361 - FAN
16361-31020	12R..RY1# 4 BLADES	09/1971 - 06/1972	1
16361-31021	12R..RY10,12 4 BLADES	06/1972 - 02/1979	1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99521-10897	12R..RY10,12 L=897	06/1972 - 12/1973	1
90916-02052	12R..RY10,12 L=890	11/1975 - 12/1976	1
90916-02060	12R..RY10,12 L=890	12/1976 - 04/1978	1
99521-10887	12R..RY10,12 L=887	12/1973 - 11/1975	1
99332-00890	12R..RY10,12 L=890	04/1978 - 02/1979	1
99521-10873	12R..RY1# L=873	09/1971 - 06/1972	1
16381 - BAR, FAN BELT ADJUSTING
16381-31011	12R..RY10,12	09/1971 - 11/1975	1
16381-31012	12R..RY10,12	11/1975 - 02/1979	1
16400 - RADIATOR ASSY
16400-29025	12R..RY10,12	09/1971 - 05/1975	1
16400-29026	12R..RY10,12	05/1975 - 11/1975	1
16400-31200	12R..RY10,12	11/1975 - 02/1979	1
16400A - COCK SUB-ASSY, RADIATOR DRAIN
96431-03833	12R..RY10,12	09/1971 - 07/1974	1
16400B - PLUG, RADIATOR DRAIN COCK
96431-23814	12R..RY10,12	09/1971 - 02/1979	1
16401 - CAP SUB-ASSY, RADIATOR
16401-23070	12R,5R..RY1#	09/1971 - 02/1979	1
16507 - PIPE SUB-ASSY, RADIATOR
16577-23010	12R..RY10,12	09/1971 - 07/1974	1
16507-31010	12R..RY10,12	07/1974 - 02/1979	1
16507 - PIPE SUB-ASSY, RADIATOR
16577-23010	12R..RY10,12	09/1971 - 07/1974	1
16507-31010	12R..RY10,12	07/1974 - 02/1979	1
16509 - CLAMP SUB-ASSY, RADIATOR PIPE
16509-31010	12R..RY10,12	09/1971 - 02/1979	1
16509A - NUT, SQUARE(FOR RADIATOR PIPE CLAMP)
90173-06009	12R..RY10,12	09/1971 - 02/1979	1
16571 - HOSE, RADIATOR, INLET
16572-31030	12R..RY10,12	07/1974 - 11/1975	1
16572-31031	12R..RY10,12	11/1975 - 02/1979	1
16572-31010	12R..RY10,12	09/1971 - 07/1974	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-43005	12R,5R..RY1#	09/1971 - 11/1974	2
96111-10430	12R..RY10,12	12/1978 - 02/1979	2
96111-10430	12R,5R..RY1#	11/1974 - 12/1978	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-43005	12R,5R..RY1#	09/1971 - 11/1974	2
96111-10430	12R..RY10,12	12/1978 - 02/1979	2
96111-10430	12R,5R..RY1#	11/1974 - 12/1978	2
16572 - HOSE, RADIATOR, OUTLET
90916-01110	12R..RY10,12 PUMP SIDE	09/1971 - 11/1975	1
90916-01111	12R..RY10,12 RADIATOR SIDE	09/1971 - 02/1979	1
90916-01145	12R..RY10,12 PUMP SIDE	11/1975 - 02/1979	1
16572 - HOSE, RADIATOR, OUTLET
90916-01110	12R..RY10,12 PUMP SIDE	09/1971 - 11/1975	1
90916-01111	12R..RY10,12 RADIATOR SIDE	09/1971 - 02/1979	1
90916-01145	12R..RY10,12 PUMP SIDE	11/1975 - 02/1979	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036	12R..RY10,12 ID=47	09/1971 - 11/1974	4
96111-10460	12R..RY10,12 ID=46	11/1974 - 02/1979	4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036	12R..RY10,12 ID=47	09/1971 - 11/1974	4
96111-10460	12R..RY10,12 ID=46	11/1974 - 02/1979	4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036	12R..RY10,12 ID=47	09/1971 - 11/1974	4
96111-10460	12R..RY10,12 ID=46	11/1974 - 02/1979	4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036	12R..RY10,12 ID=47	09/1971 - 11/1974	4
96111-10460	12R..RY10,12 ID=46	11/1974 - 02/1979	4
16701 - SHROUD SUB-ASSY, FAN
16711-31010	12R..RY10,12	09/1971 - 02/1979	1
Common parts
90345-52002
91611-40816
91611-40835
91611-60622
91651-40814
91651-40820
93180-16032
94110-40800

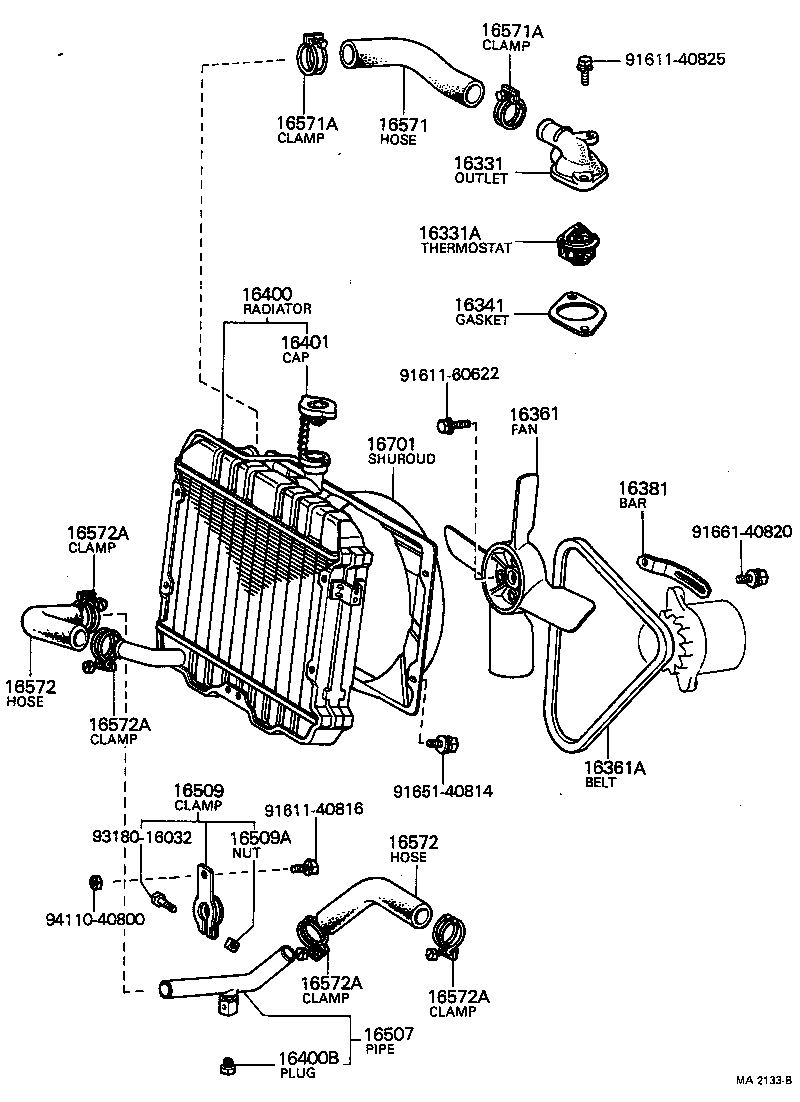

(7511-7902)12R

Click highlighted areas on diagram

Part #	Description	Period	Qty
16331 - OUTLET, WATER
16331-31031	12R..RY10,12	11/1975 - 02/1979	1
16331-31010	12R..RY10,12	09/1971 - 11/1975	1
16331-31020	12R..RY10,12 CAST IRON BODY	09/1971 - 09/1973	1
16331A - THERMOSTAT
90916-03016	12R..RY10,12 WAX 82-95 FUJI-THOMSON	09/1971 - 08/1972	1
90916-03024	12R..RY10,12 WAX 75-85 KUZEH	09/1971 - 09/1973	1
90916-03034	12R..RY10,12 WAX 82-95 FUJI-THOMSON	09/1973 - 02/1979	1
90916-03021	12R..RY10,12 WAX 82-95 KUZEH	09/1971 - 09/1973	1
90916-03037	12R,5R..RY1# WAX 82-95 KUZEH	09/1973 - 02/1979	1
90916-03020	12R..RY10,12 WAX 82-95 FUJI-THOMSON	08/1972 - 09/1973	1
16341 - GASKET, WATER OUTLET
16341-38010	12R,5R..RY1#	09/1978 - 02/1979	1
16341-49010	12R,5R..RY1#	01/1977 - 09/1978	1
16341-49010	12R..RY10,12	09/1971 - 01/1977	1
16361 - FAN
16361-31020	12R..RY1# 4 BLADES	09/1971 - 06/1972	1
16361-31021	12R..RY10,12 4 BLADES	06/1972 - 02/1979	1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99521-10897	12R..RY10,12 L=897	06/1972 - 12/1973	1
90916-02052	12R..RY10,12 L=890	11/1975 - 12/1976	1
90916-02060	12R..RY10,12 L=890	12/1976 - 04/1978	1
99521-10887	12R..RY10,12 L=887	12/1973 - 11/1975	1
99332-00890	12R..RY10,12 L=890	04/1978 - 02/1979	1
99521-10873	12R..RY1# L=873	09/1971 - 06/1972	1
16381 - BAR, FAN BELT ADJUSTING
16381-31011	12R..RY10,12	09/1971 - 11/1975	1
16381-31012	12R..RY10,12	11/1975 - 02/1979	1
16400 - RADIATOR ASSY
16400-29025	12R..RY10,12	09/1971 - 05/1975	1
16400-29026	12R..RY10,12	05/1975 - 11/1975	1
16400-31200	12R..RY10,12	11/1975 - 02/1979	1
16400B - PLUG, RADIATOR DRAIN COCK
96431-23814	12R..RY10,12	09/1971 - 02/1979	1
16401 - CAP SUB-ASSY, RADIATOR
16401-23070	12R,5R..RY1#	09/1971 - 02/1979	1
16507 - PIPE SUB-ASSY, RADIATOR
16577-23010	12R..RY10,12	09/1971 - 07/1974	1
16507-31010	12R..RY10,12	07/1974 - 02/1979	1
16509 - CLAMP SUB-ASSY, RADIATOR PIPE
16509-31010	12R..RY10,12	09/1971 - 02/1979	1
16509A - NUT, SQUARE(FOR RADIATOR PIPE CLAMP)
90173-06009	12R..RY10,12	09/1971 - 02/1979	1
16571 - HOSE, RADIATOR, INLET
16572-31030	12R..RY10,12	07/1974 - 11/1975	1
16572-31031	12R..RY10,12	11/1975 - 02/1979	1
16572-31010	12R..RY10,12	09/1971 - 07/1974	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-43005	12R,5R..RY1#	09/1971 - 11/1974	2
96111-10430	12R..RY10,12	12/1978 - 02/1979	2
96111-10430	12R,5R..RY1#	11/1974 - 12/1978	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-43005	12R,5R..RY1#	09/1971 - 11/1974	2
96111-10430	12R..RY10,12	12/1978 - 02/1979	2
96111-10430	12R,5R..RY1#	11/1974 - 12/1978	2
16572 - HOSE, RADIATOR, OUTLET
90916-01110	12R..RY10,12 PUMP SIDE	09/1971 - 11/1975	1
90916-01111	12R..RY10,12 RADIATOR SIDE	09/1971 - 02/1979	1
90916-01145	12R..RY10,12 PUMP SIDE	11/1975 - 02/1979	1
16572 - HOSE, RADIATOR, OUTLET
90916-01110	12R..RY10,12 PUMP SIDE	09/1971 - 11/1975	1
90916-01111	12R..RY10,12 RADIATOR SIDE	09/1971 - 02/1979	1
90916-01145	12R..RY10,12 PUMP SIDE	11/1975 - 02/1979	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036	12R..RY10,12 ID=47	09/1971 - 11/1974	4
96111-10460	12R..RY10,12 ID=46	11/1974 - 02/1979	4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036	12R..RY10,12 ID=47	09/1971 - 11/1974	4
96111-10460	12R..RY10,12 ID=46	11/1974 - 02/1979	4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036	12R..RY10,12 ID=47	09/1971 - 11/1974	4
96111-10460	12R..RY10,12 ID=46	11/1974 - 02/1979	4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036	12R..RY10,12 ID=47	09/1971 - 11/1974	4
96111-10460	12R..RY10,12 ID=46	11/1974 - 02/1979	4
16701 - SHROUD SUB-ASSY, FAN
16711-31010	12R..RY10,12	09/1971 - 02/1979	1
Common parts
91611-40816
91611-40825
91611-60622
91651-40814
91661-40820
93180-16032
94110-40800

RY12L-JRB (1971)

(7109-7511)12R

(7511-7902)12R
