RY12L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)12R

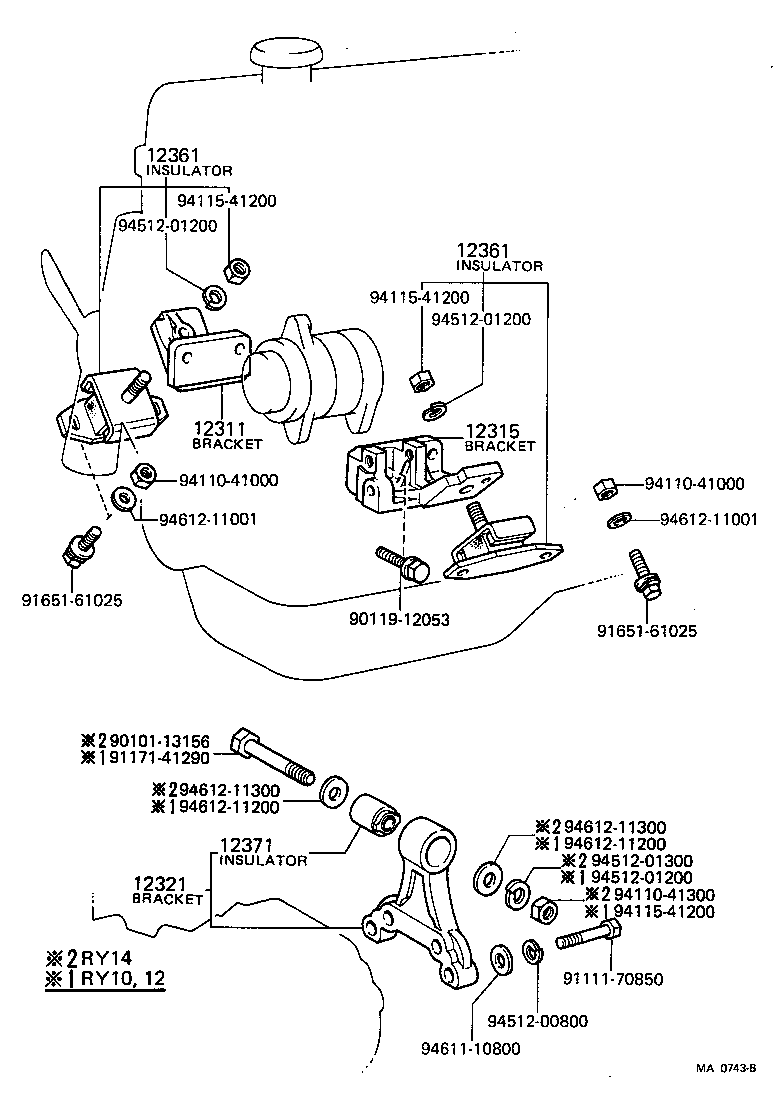

Click highlighted areas on diagram

diagram 12311 12315 12321 12361 12361 12371 9010113156 9011912053 9111170850 9117141290 9165161025 9165161025 9411041000 9411041000 9411041300 9411541200 9411541200 9411541200 9451200800 9451201200 9451201200 9451201200 9451201300 9461110800 9461211001 9461211001 9461211200 9461211200 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12R..RY10,12

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31010

12R..RY10,12

 1
12315-31011

12R..RY10,12

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-21010

12R..RY10,12

 1
12303-21011

12R..RY10,12

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39017

12R..RY10,12

 2
12361-39018

12R..RY10,12

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39017

12R..RY10,12

 2
12361-39018

12R..RY10,12

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-21010

12R..RY10,12

 1
Common parts
90101-13156
90119-12053
91111-70850
91171-41290
91651-61025
94110-41000
94110-41300
94115-41200
94512-00800
94512-01200
94512-01300
94611-10800
94612-11001
94612-11200
94612-11300
