RY12L-JR (1971)
Toyota Toyoace
Production
Sep 1971
-
Feb 1979
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7109-7902)

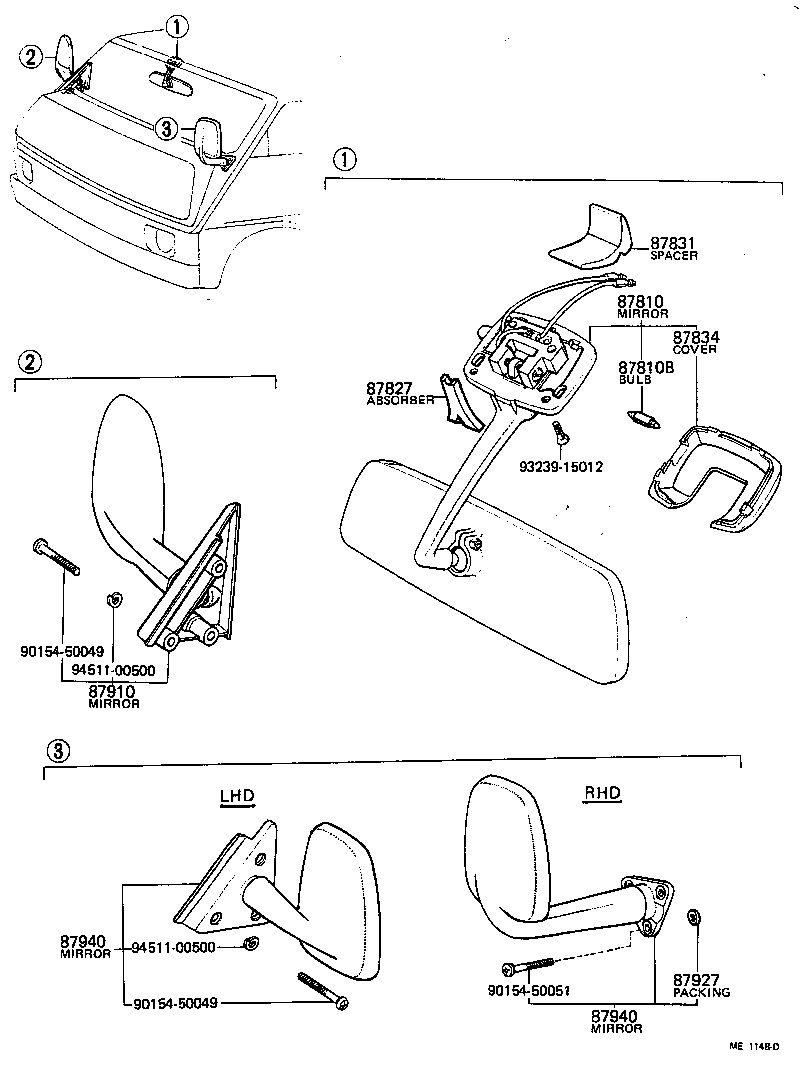

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95700 |
JY16,RY1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 99132-13050 |
JY16,RY1# 12V 5W,12V 5W |
1 | ||
| 87831 - SPACER (FOR INSIDE MIRROR) | ||||
| 87831-95010 |
JY16,RY1# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87814-12011 |
JY16,RY1# |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95090 |
JY16,RY1# |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87920-95091 |
JY16,RY1#..LHD |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87920-95091 |
JY16,RY1#..LHD |
1 | ||
| Common parts | ||||
| 90154-50049 | ||||
| 90154-50051 | ||||
| 93239-15012 | ||||
| 94511-00500 | ||||
