RY12L-JR (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

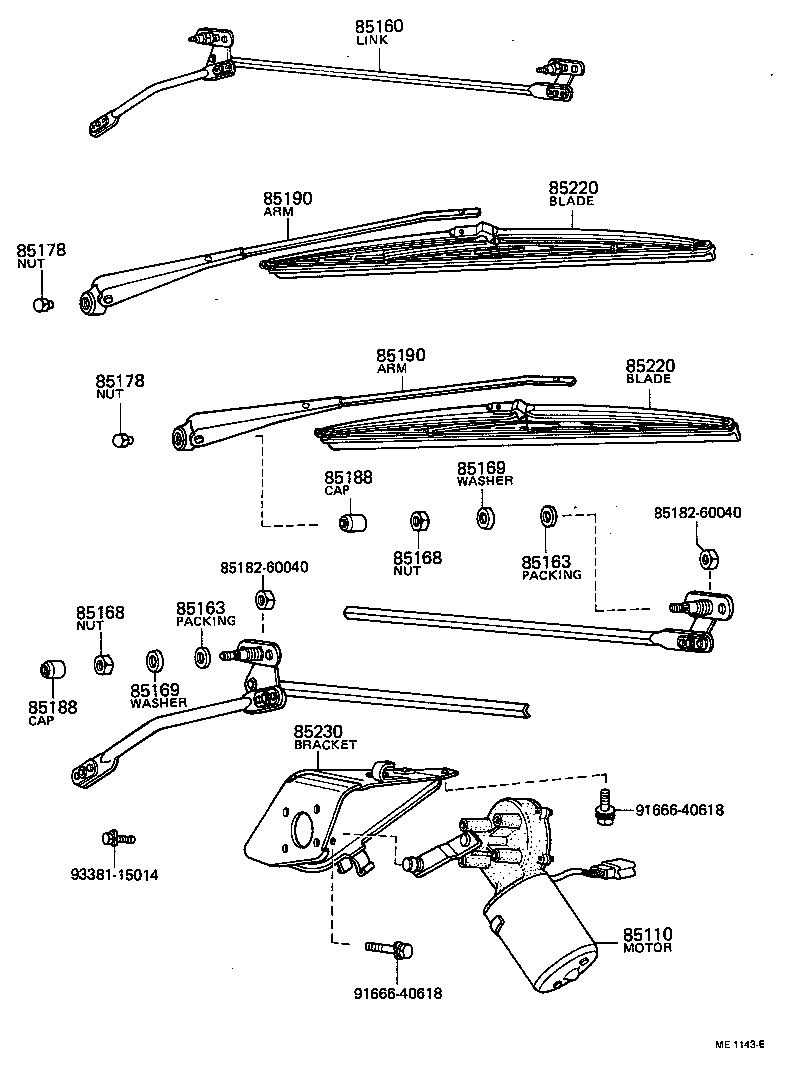

Click highlighted areas on diagram

diagram 85110 85160 85163 85163 85168 85168 85169 85169 85178 85178 8518260040 8518260040 85188 85188 85190 85190 85220 85220 85230 9166640618 9166640618 9338115014
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95012

JY16,RY1#..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95012

JY16,RY1#..LHD

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-25040

JY16,RY1#

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-25040

JY16,RY1#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-55010

JY16,RY1#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-55010

JY16,RY1#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-55010

JY16,RY1#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-55010

JY16,RY1#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-06016

JY16,RY1#

 2
90176-06010

JY16,RY1#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-06016

JY16,RY1#

 2
90176-06010

JY16,RY1#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-55010

JY16,RY1#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-55010

JY16,RY1#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95012

JY16,RY1#..LHD

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95012

JY16,RY1#..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95403

JY16,RY1#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95403

JY16,RY1#

 2
85230 - BRACKET ASSY, WINDSHIELD WIPER
85203-95011

JY16,RY1#..LHD

 1
Common parts
85182-60040
91666-40618
93381-15014
