RY12L-JR (1971)
Toyota Toyoace
Production
Sep 1971
-
Feb 1979
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7109-7902)T1

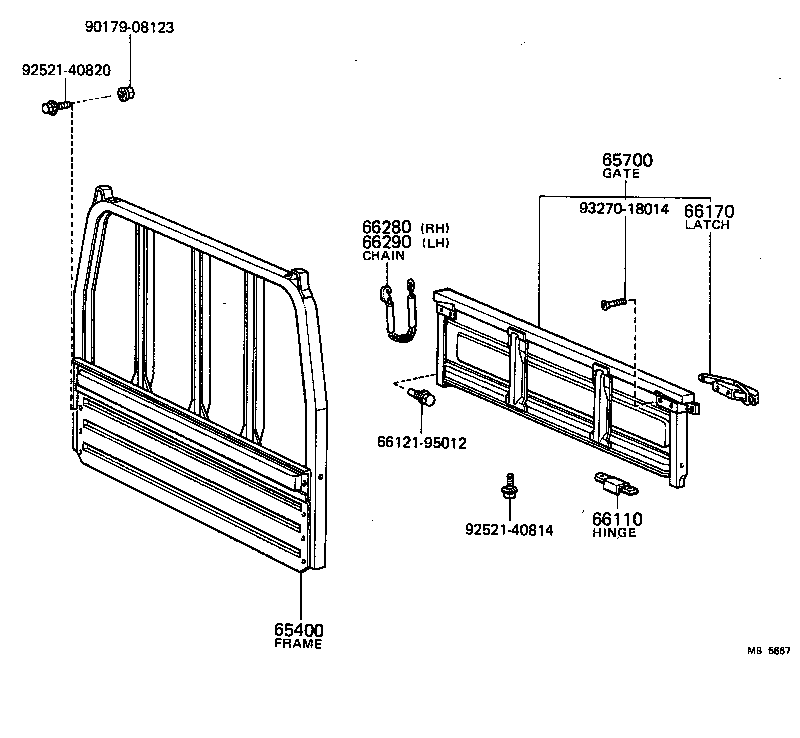

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65400-95023 |
JY16,RY12,16..T1 |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95412 |
JY16,RY1#..T1 |
1 | ||
| 65700-95020 |
JY16,RY1#..T1 |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-95014 |
JY16,RY1#..T1 |
2 | ||
| 66170 - LATCH ASSY, REAR BODY TAIL GATE | ||||
| 66170-95111 |
JY16,RY1#..T1 |
2 | ||
| 66170-95402 |
JY16,RY1#..T1 |
2 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-95010 |
RY1# |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-95010 |
RY1# |
1 | ||
| Common parts | ||||
| 66121-95012 | ||||
| 90179-08123 | ||||
| 92521-40814 | ||||
| 92521-40820 | ||||
| 93270-18014 | ||||
